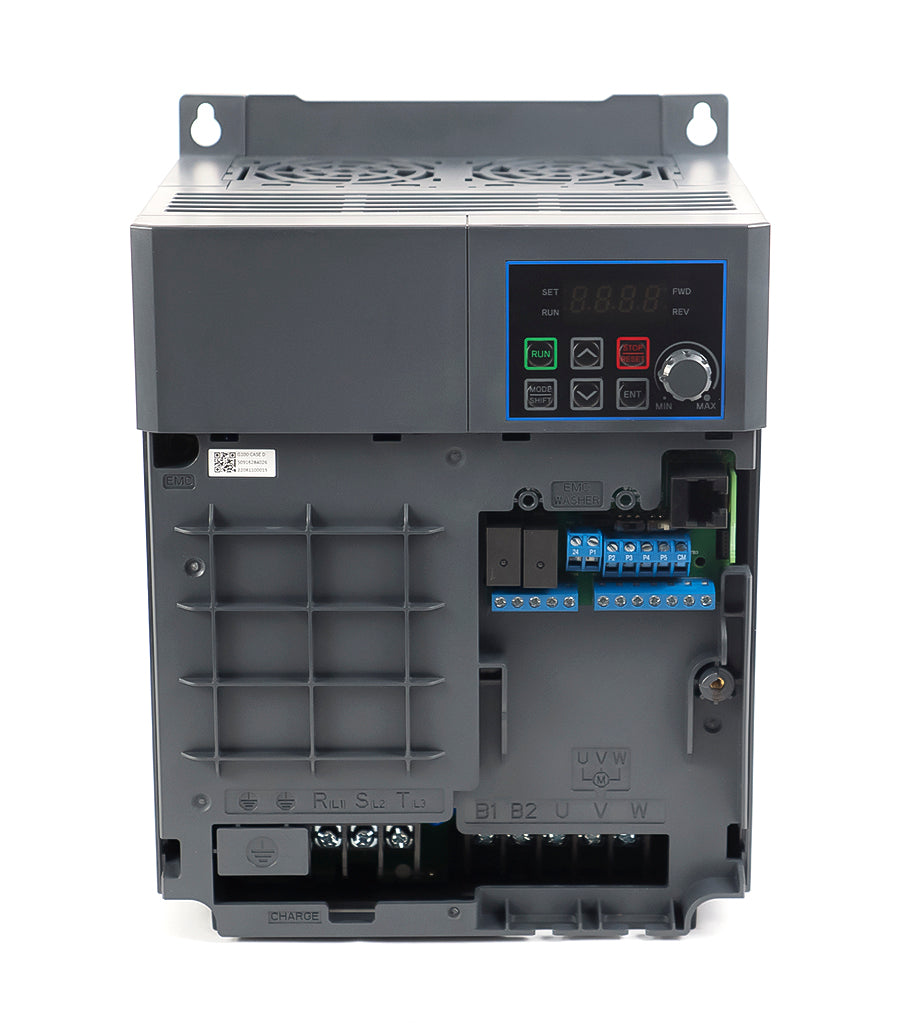

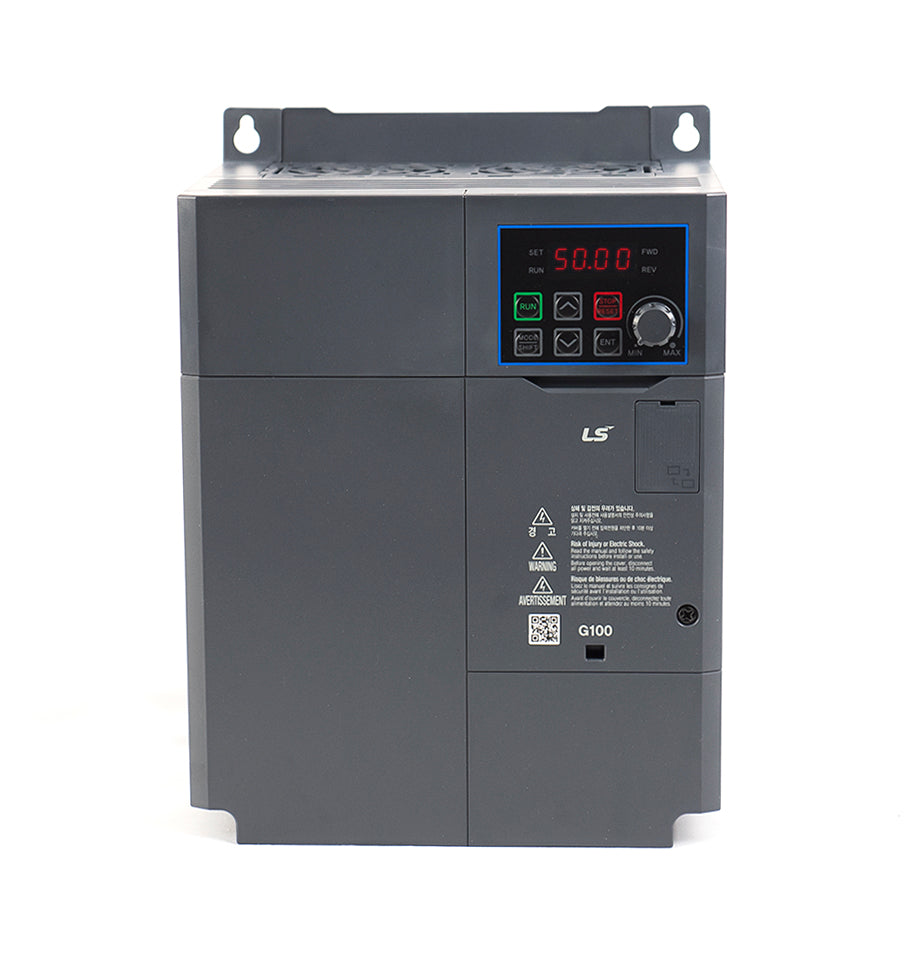

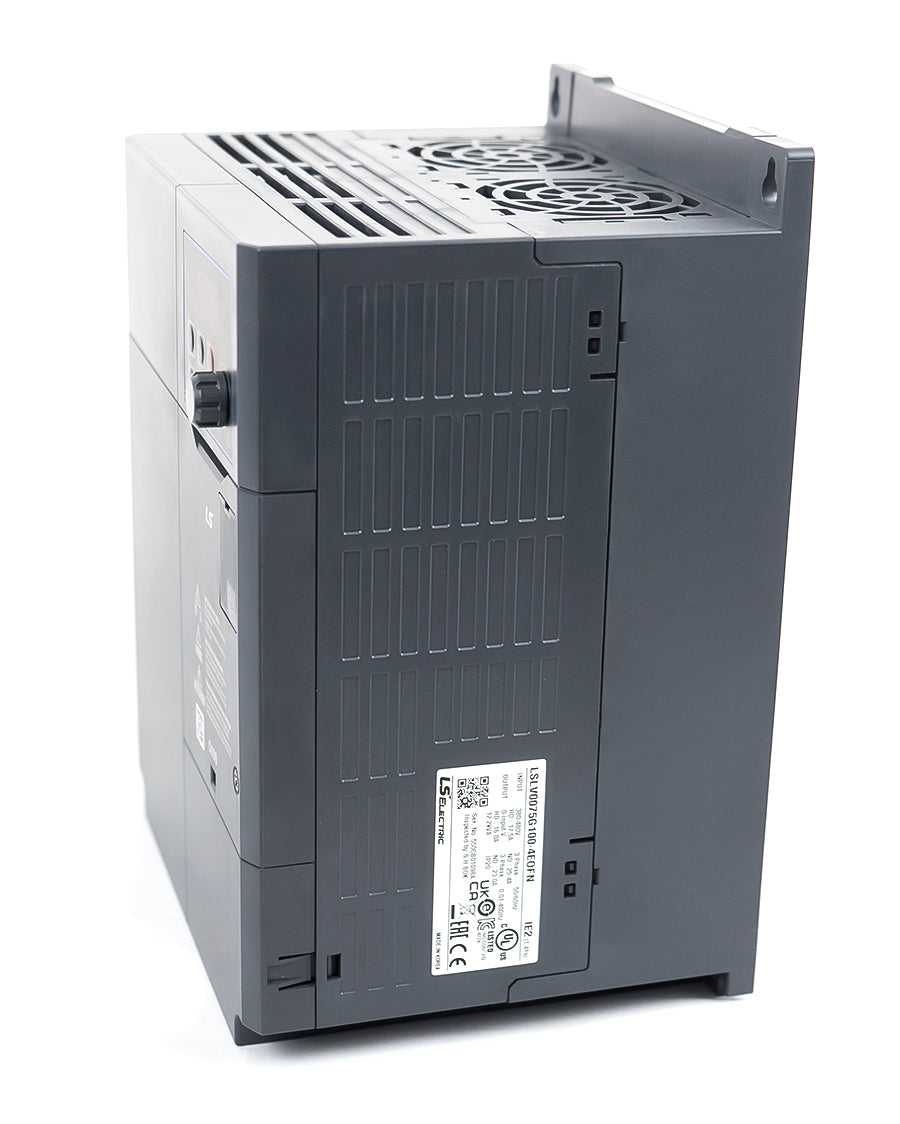

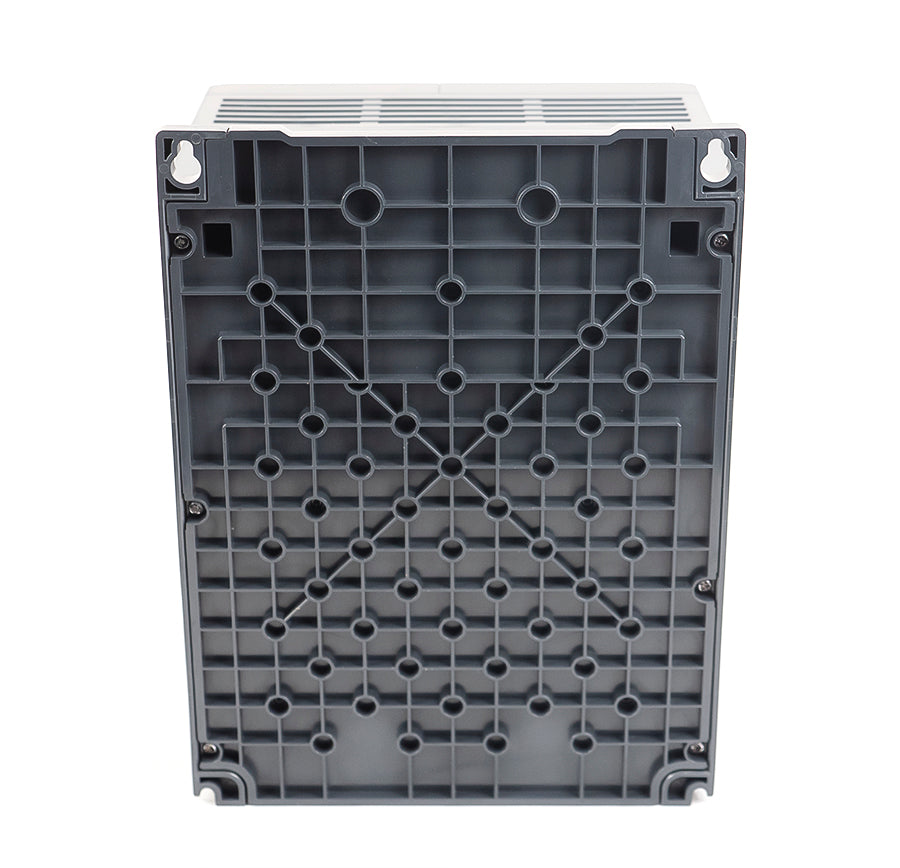

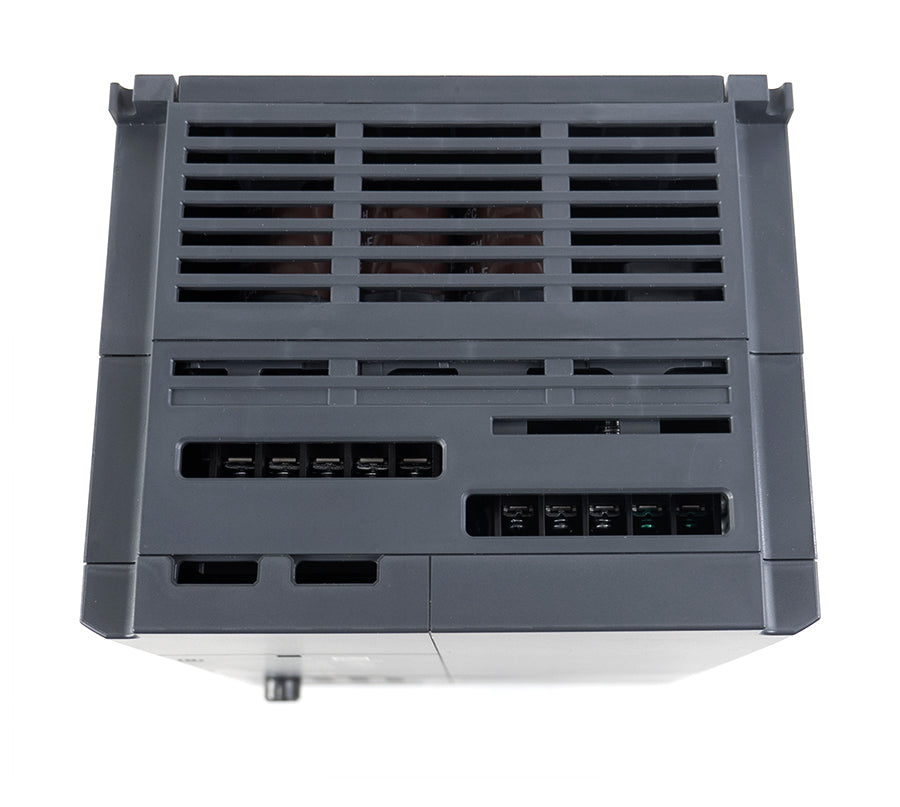

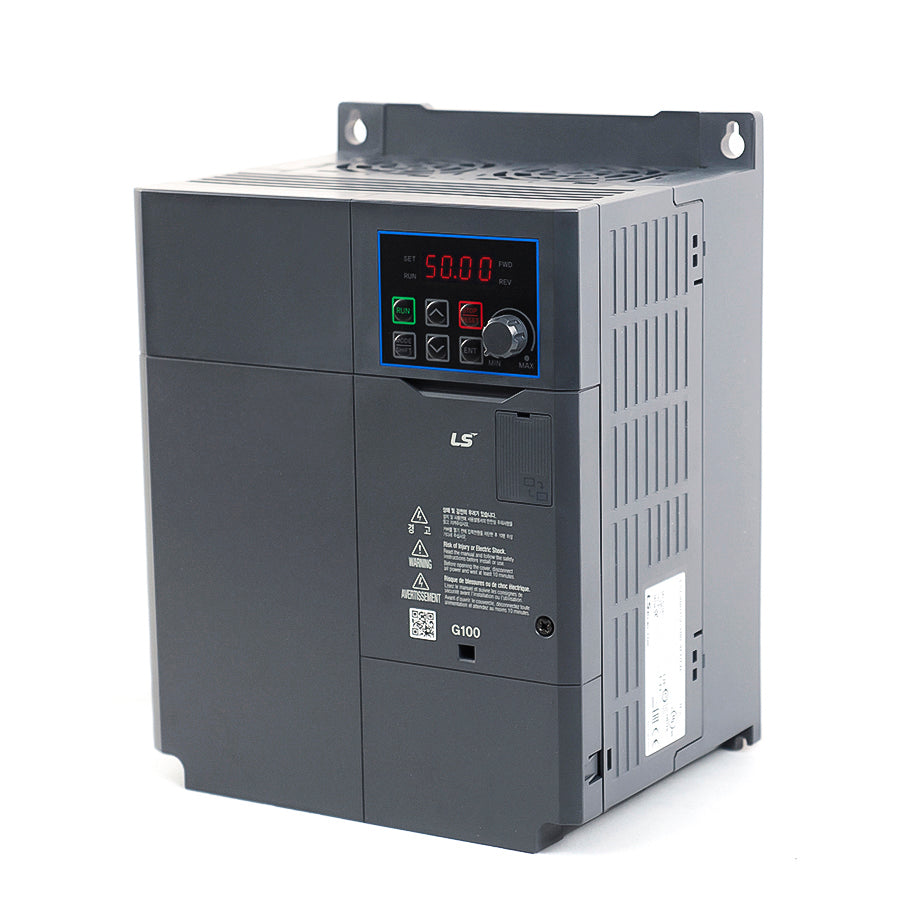

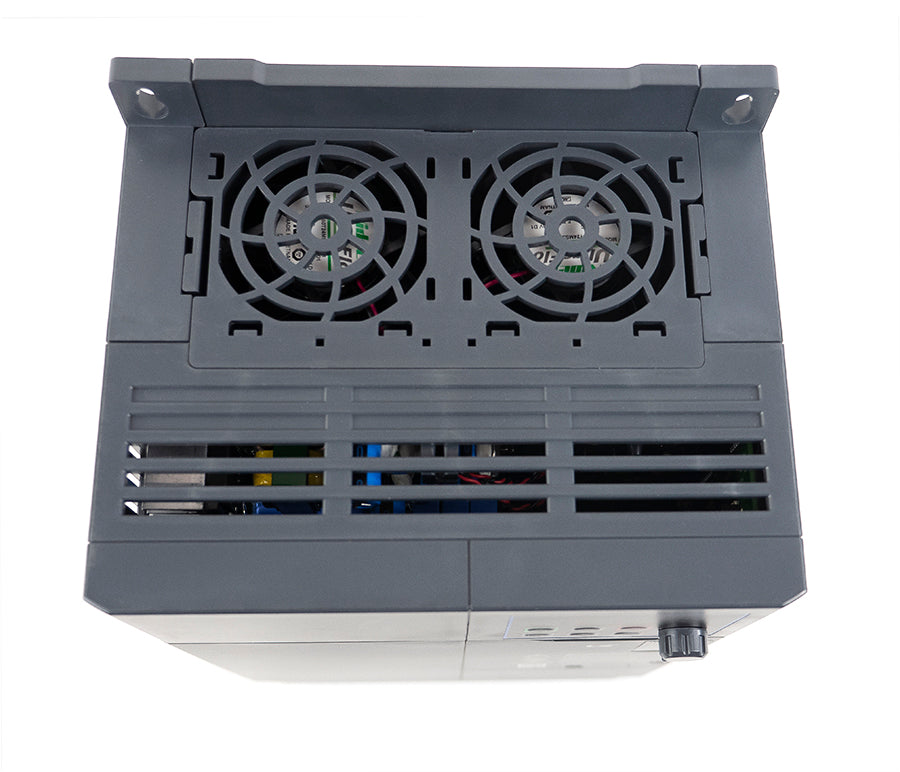

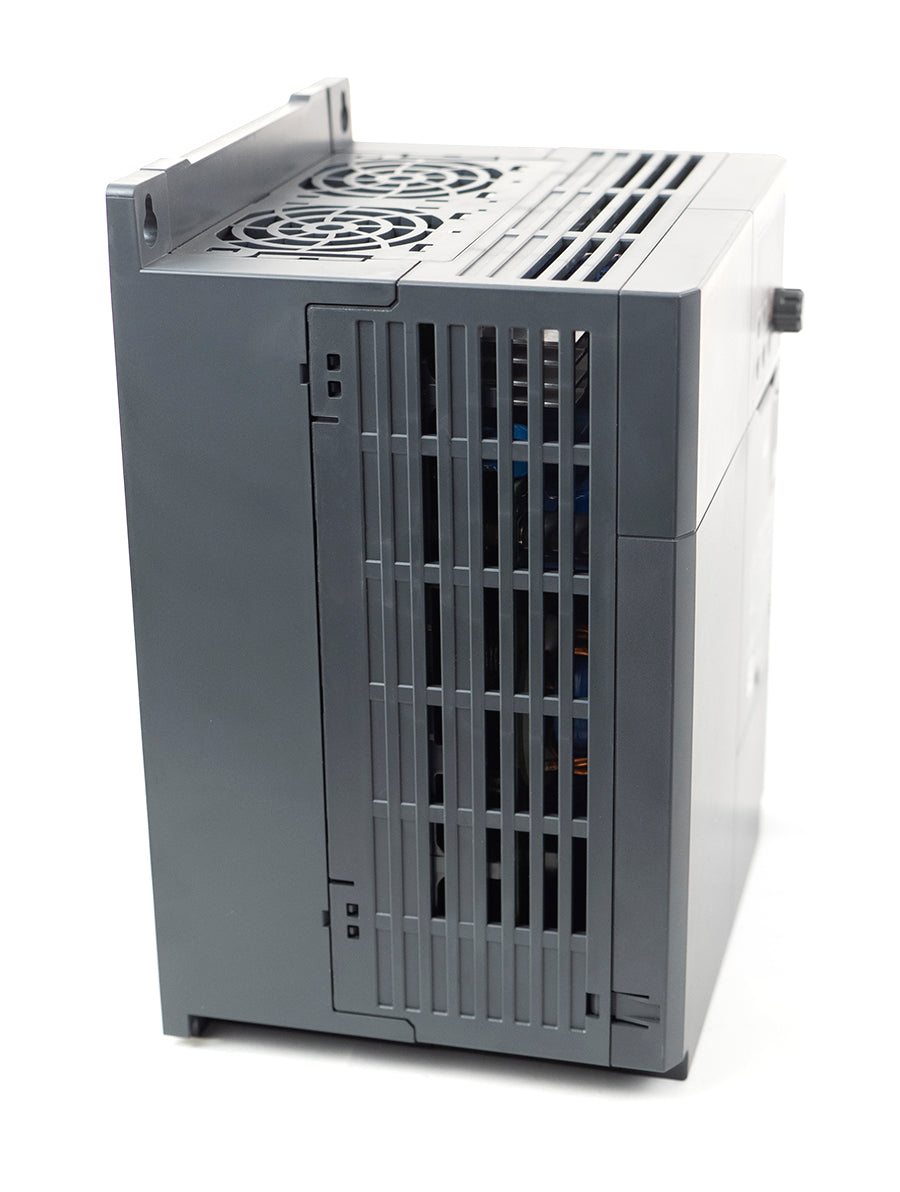

Frequency converter SEVA-LS 055-G100-4

Key Features

• Frequency converter, 5.5kW, 400V, 12.0A, IP20, with control panel • U/f control, sensorless vector control selectable • PID controller for advanced process control • High torque across the entire engine speed range • 0.1-400Hz output frequency • 1-15kHz clock frequency • Input voltage range -15% to +10% • Error register: last 5 errors • Analog input 0 to +10Vdc / -10 to +10Vdc • 150% torque at 0.5Hz • Protection class IP20, UL Type 1 (Optional) • Torque boost (manual/automatic) • Input signal PNP/NPN selectable • Control and parameter setting for a second motor • Transistor for dynamic braking integrated as standard • Automatic adjustment: vector measurement of the motor and autotuning • Integrated communication RS485 (LS Bus / Modbus RTU) with RJ45 • Fan with on/off control, easily replaceable
