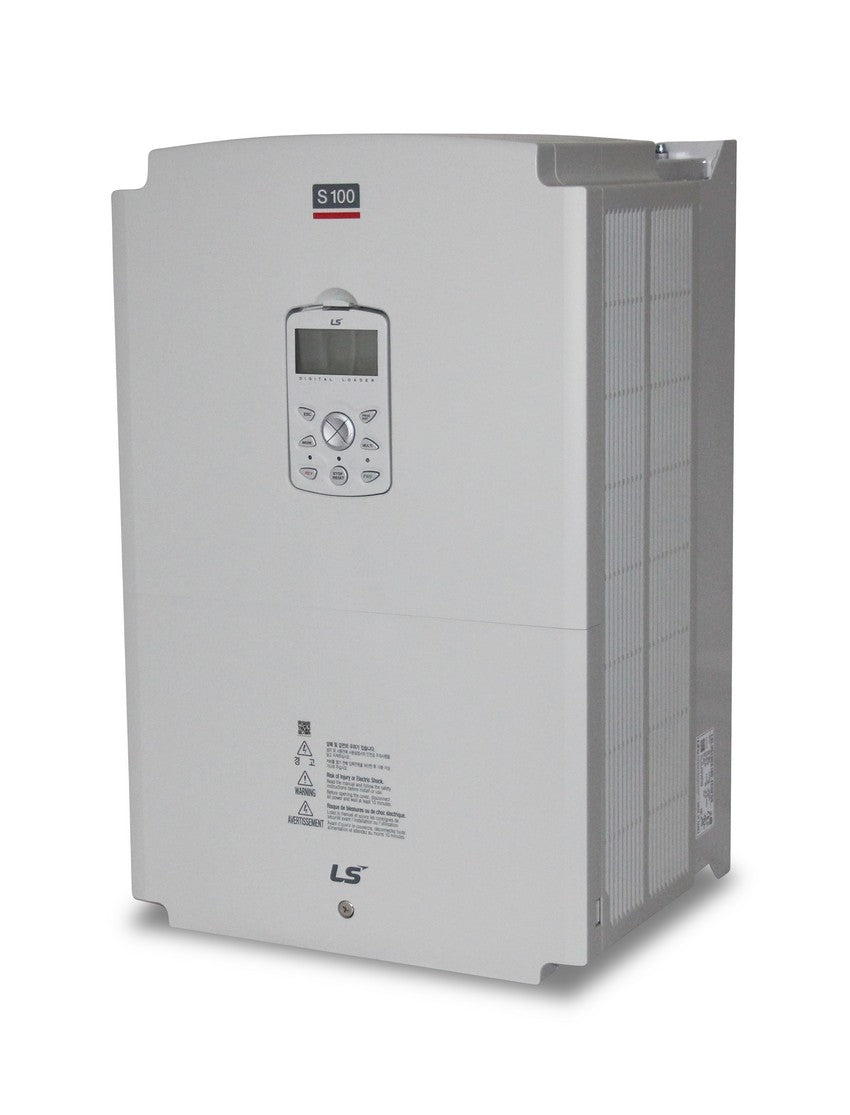

Frequency converter SEVA-LS 0550S100-4CONDS high-performance device

Frequency converter, 55.0 kW, 3 x 400 Volt, IP20, built-in LED control panel, EMC filter (C3), 43.0 kg

• advanced sensorless control functions
• high starting torque of 200% already at 0.5 Hz
• high power density, compact dimensions, through-hole mounting
• integrated EMC filter (C2 or C3)
• Compliance with global standards CE, UL, cUL
• Use Heavy Duty 150% for 1 min or Normal Duty 120% for 1 min
• Autotuning function when stationary or rotating
• Optional protection class IP66/NEMA4X with integrated main switch (up to 22kW)
• Safe stop "STO" integrated (Safe Torque Off), redundant input circuitry
• integrated display with easy operation, external remote display possible
• Smart copy function, which does not require the S100 to be powered on
• Simple fan replacement, with the replacement time displayed automatically
• PLC sequences programmable with function blocks
• digital and analog I/O, Modbus TCP, Ethernet/IP, Profibus DP, CANopen (in preparation: Profinet, EtherCAT)
