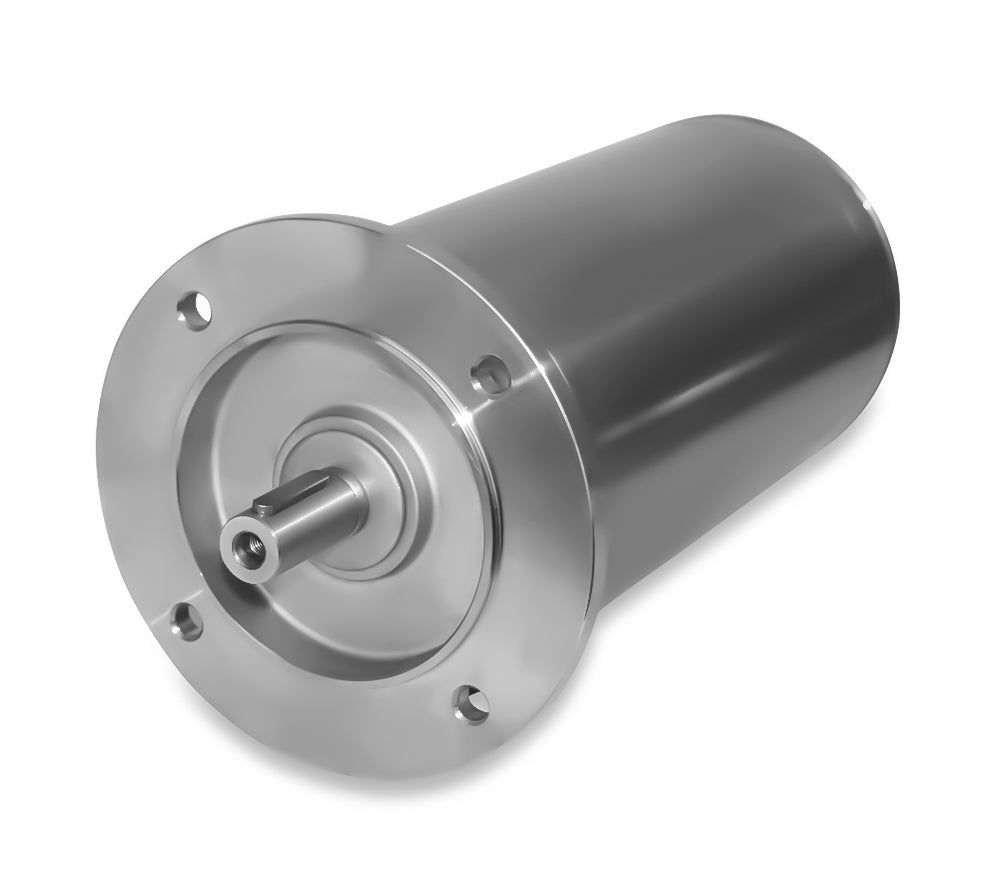

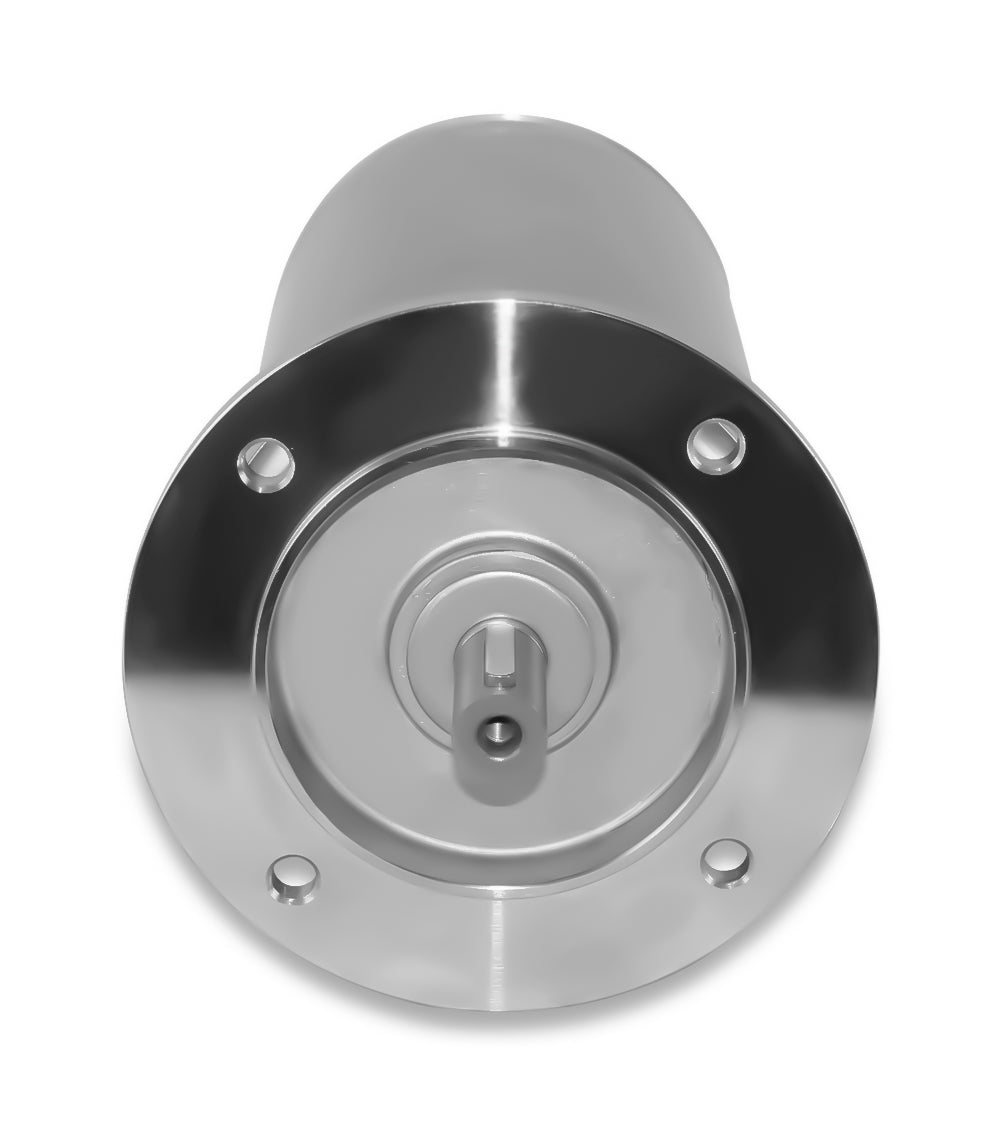

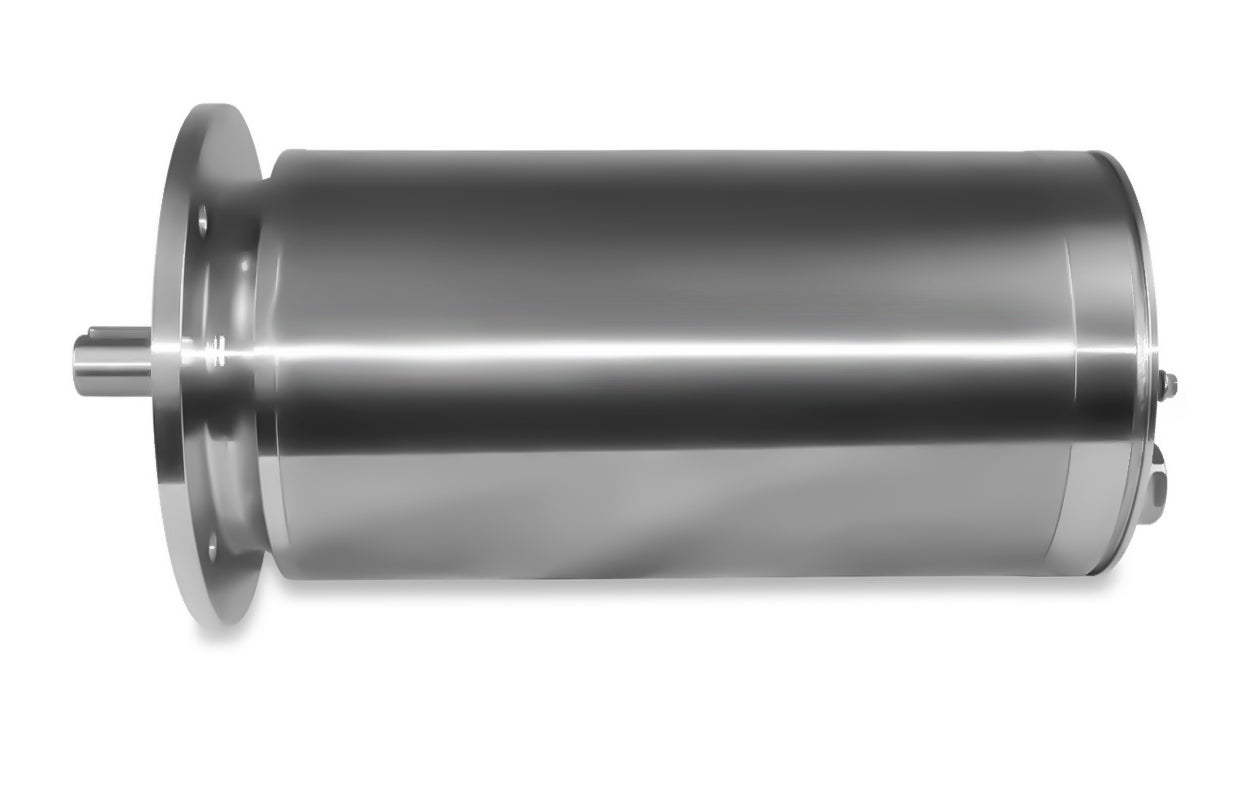

Stainless steel motor HP 63B4 0.18 kW 4-pole B5

Stainless steel motor, smooth motor, power= 0.18kW, speed= 4 pole,

Design= B5, Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),

Frequency = 50/60 Hertz, Efficiency class = IE1, Efficiency = 75%. Protection class = IP69k.

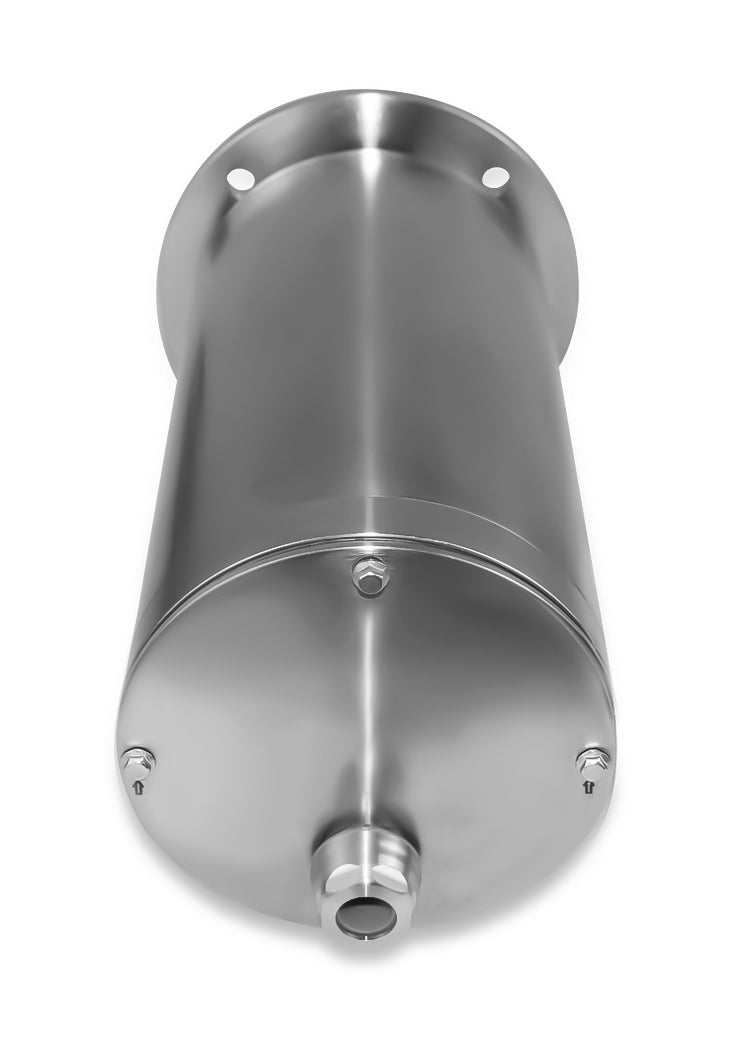

Weight= 10.7 kg, terminal box= rear, cable glands= 1 x M16 x 1.5, housing= stainless steel,

Insulation class= F (155°C), ball bearings= SKF, C&U, or equivalent, cooling= none,

The electric motor is suitable for frequency converter use and for both directions of rotation.

According to VDE 0105 and IEC 364, all work on the electric drive must be carried out by qualified

To be carried out by qualified personnel. For modifications or special designs, please send an inquiry.

All product photos are non-binding examples! Technical changes reserved.
