Three-phase motor IE4 355M1-6, 160 kW, 6-pole, B3

Electric motor, power= 160 kW, speed= 1000 rpm, design= B3

Shaft= 100 x 210 mm, voltage= 3 x 400/690 V-50 Hz, 3 x 460/795 V-60 Hz (± 5% according to VDE 0530), frequency= 50/60 Hertz.

Efficiency class= IE4, efficiency= 96.2%, paint finish= RAL 5010 (gentian blue), protection class= IP55, temperature sensor= 3 x PTC thermistors,

Weight = 1432.0 kg, Operating mode = S1- 100% ED, Terminal box position = top, Housing = gray cast iron, Insulation class = F (155°C), with relubrication device,

Ball bearings= SKF or equivalent, fixed bearing on A-side, cooling= axial fan (plastic), motor feet= permanently encapsulated (if available).

The motor mount is designed for clutch operation. For belt drive, we recommend reinforced cylindrical roller bearings.

The electric motor is suitable for frequency converter use and for both directions of rotation.

According to VDE 0105 and IEC 364, all work on the electric drive must be carried out by qualified

To be carried out by qualified personnel. For modifications or special designs, please send an inquiry.

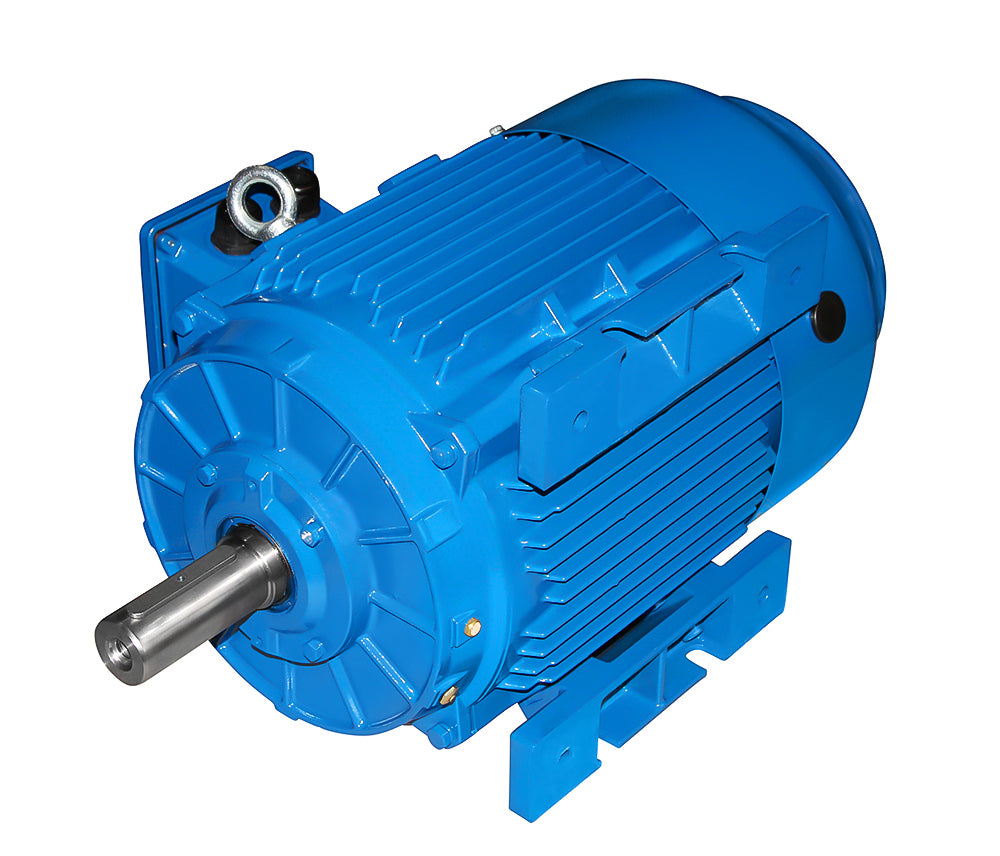

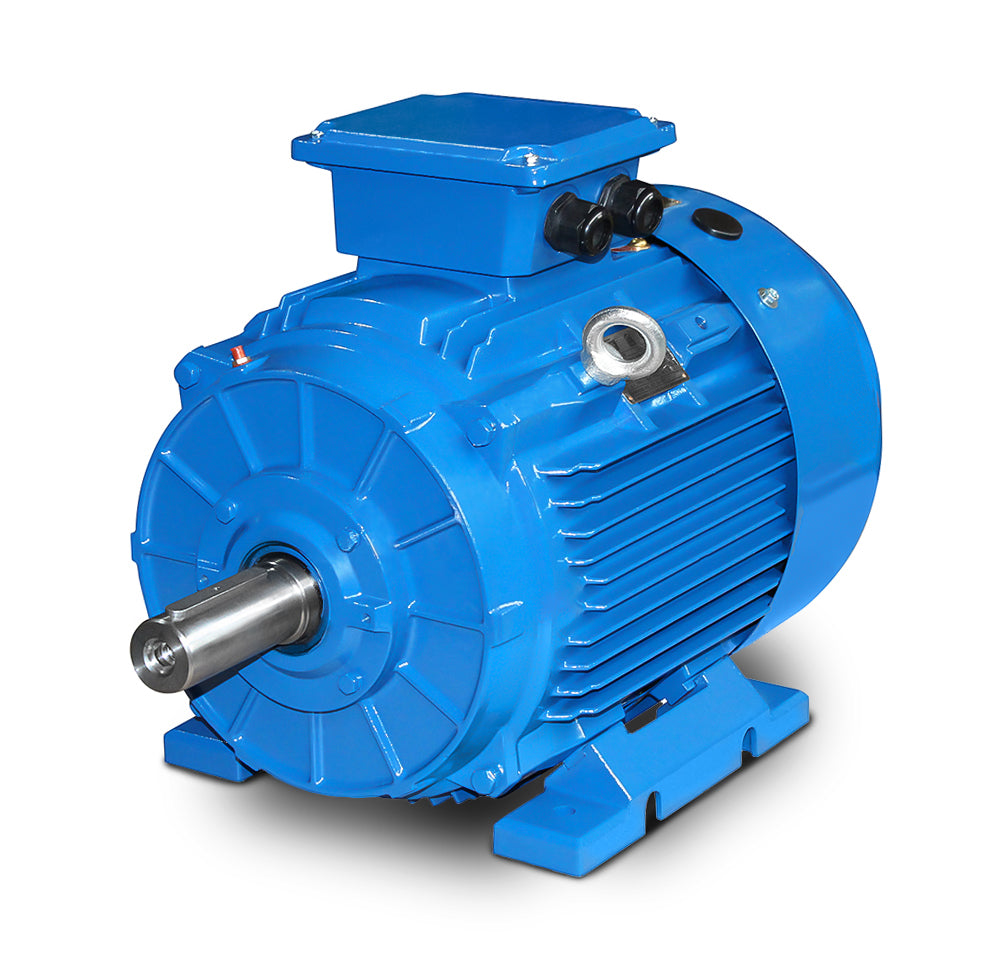

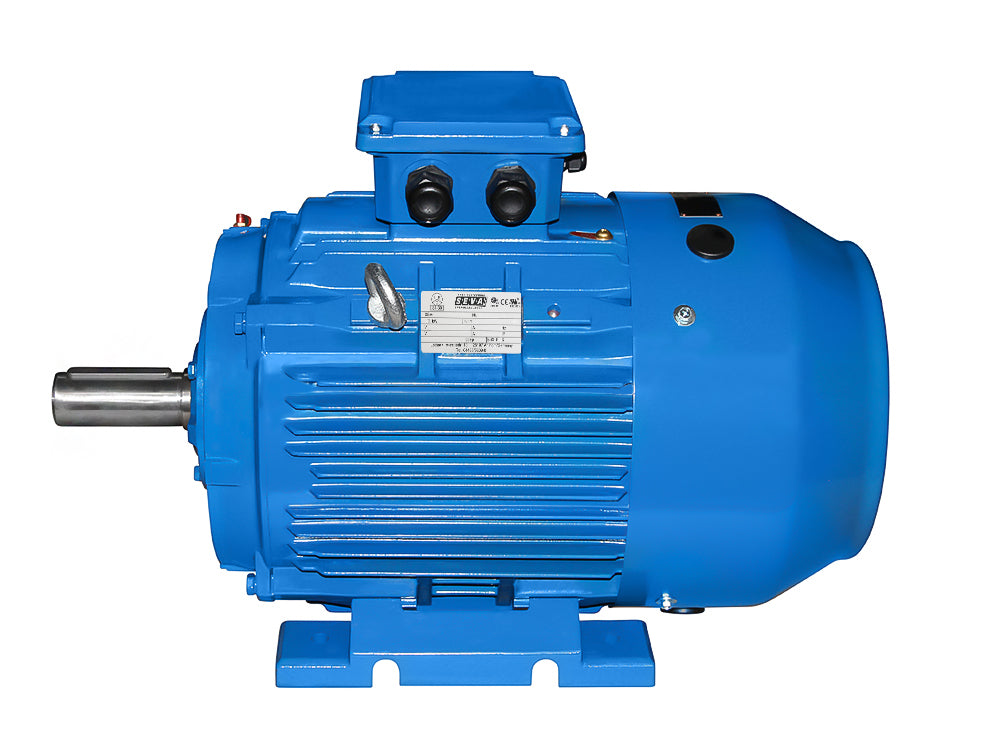

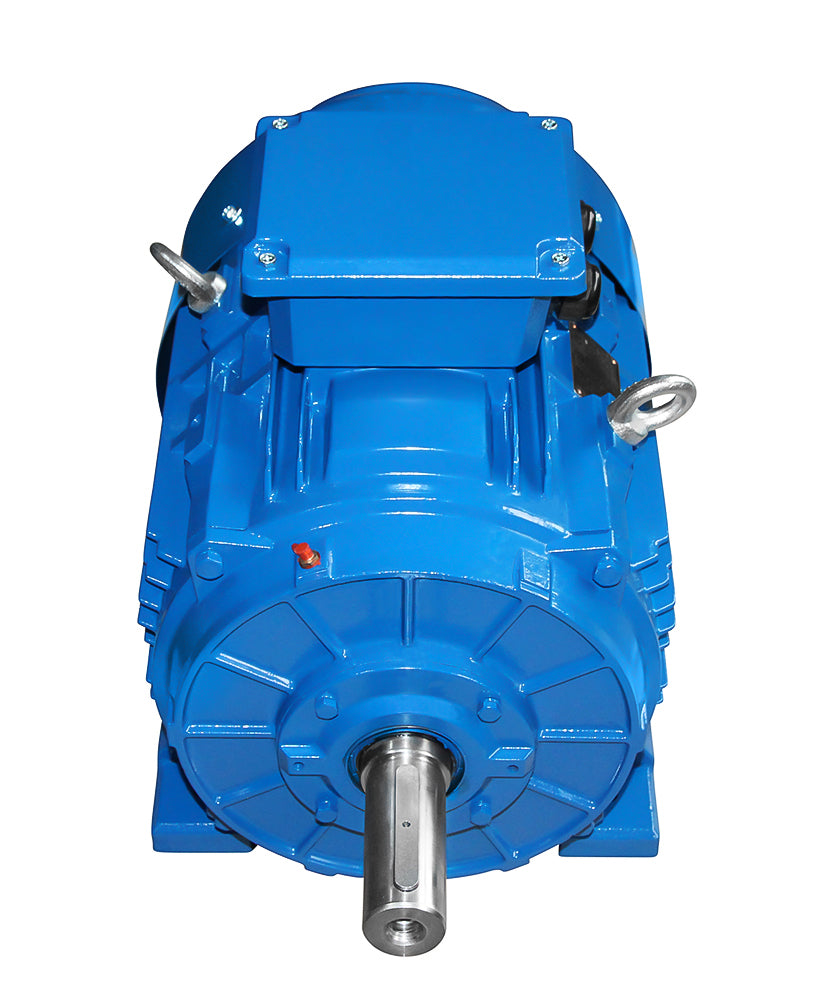

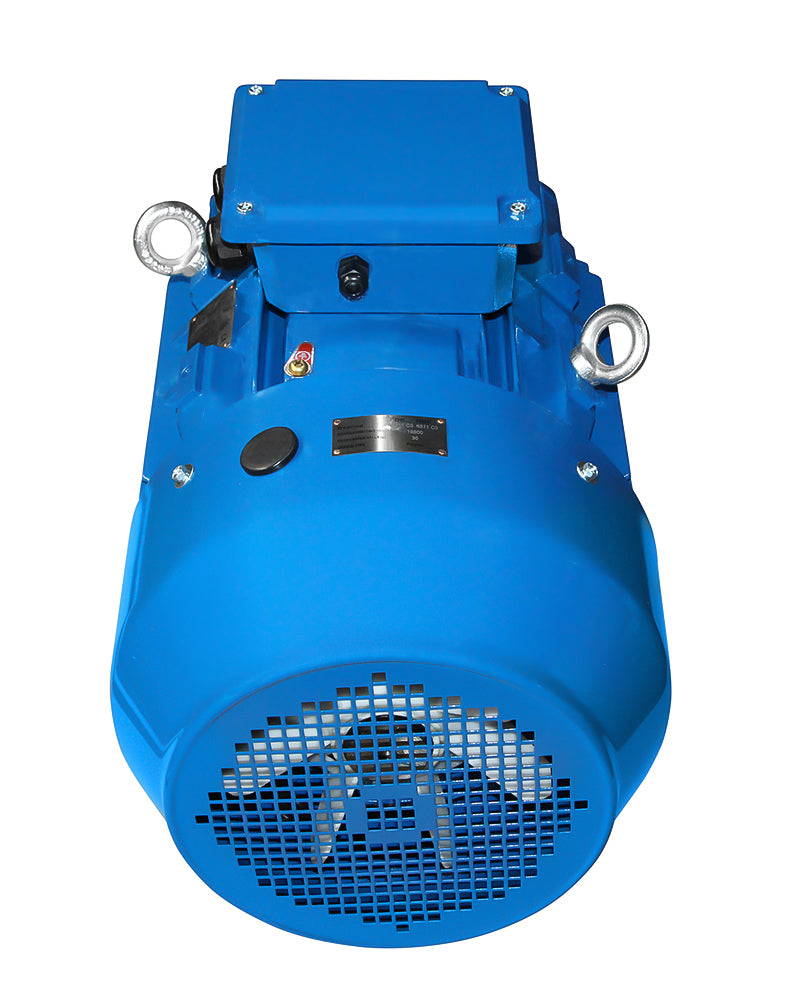

All product photos are non-binding examples! Technical changes reserved.
