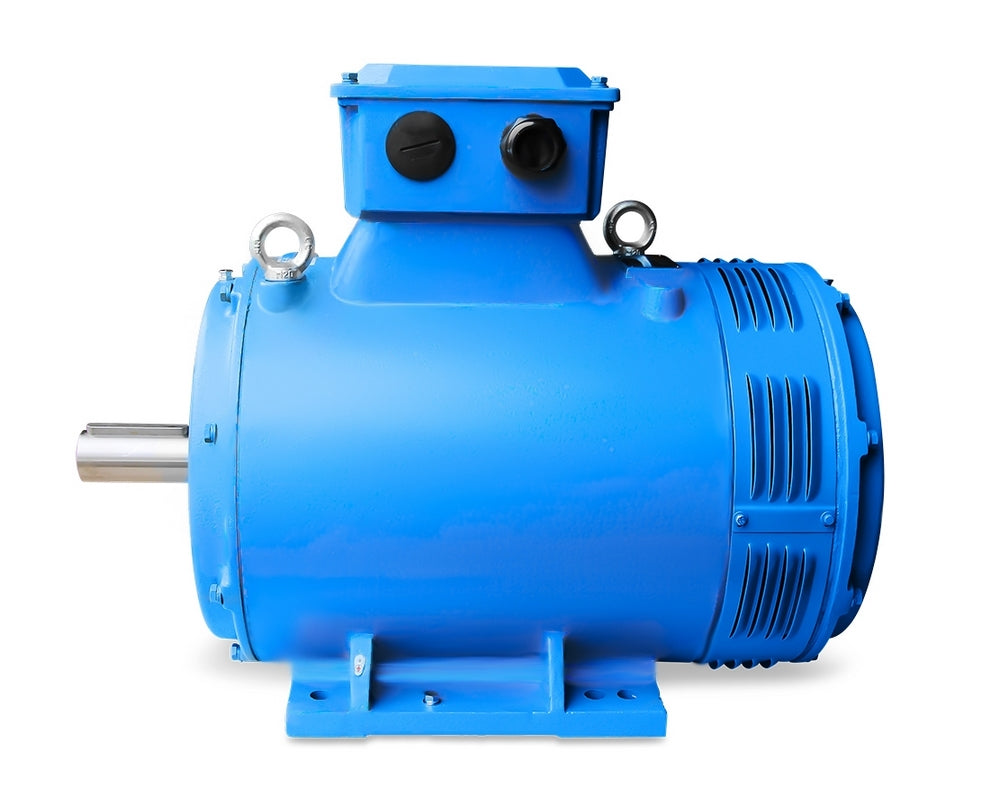

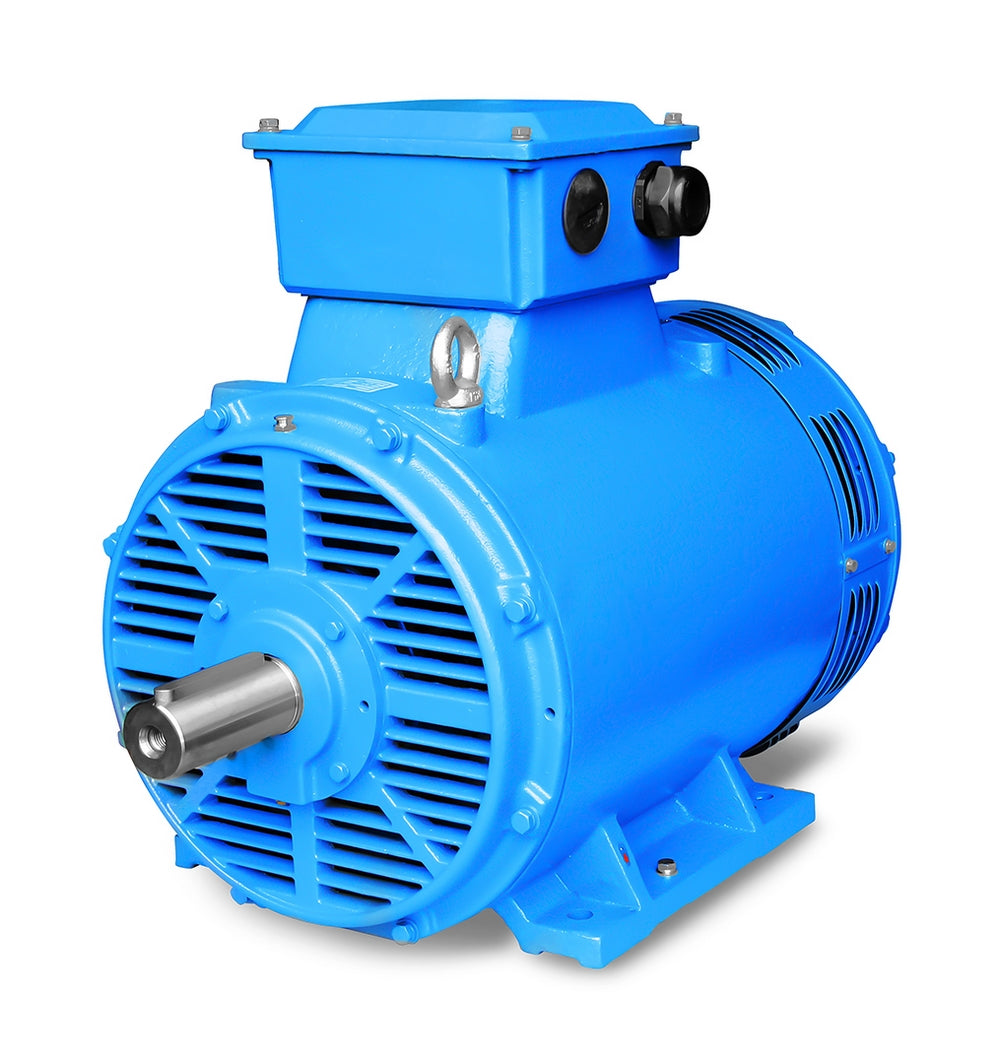

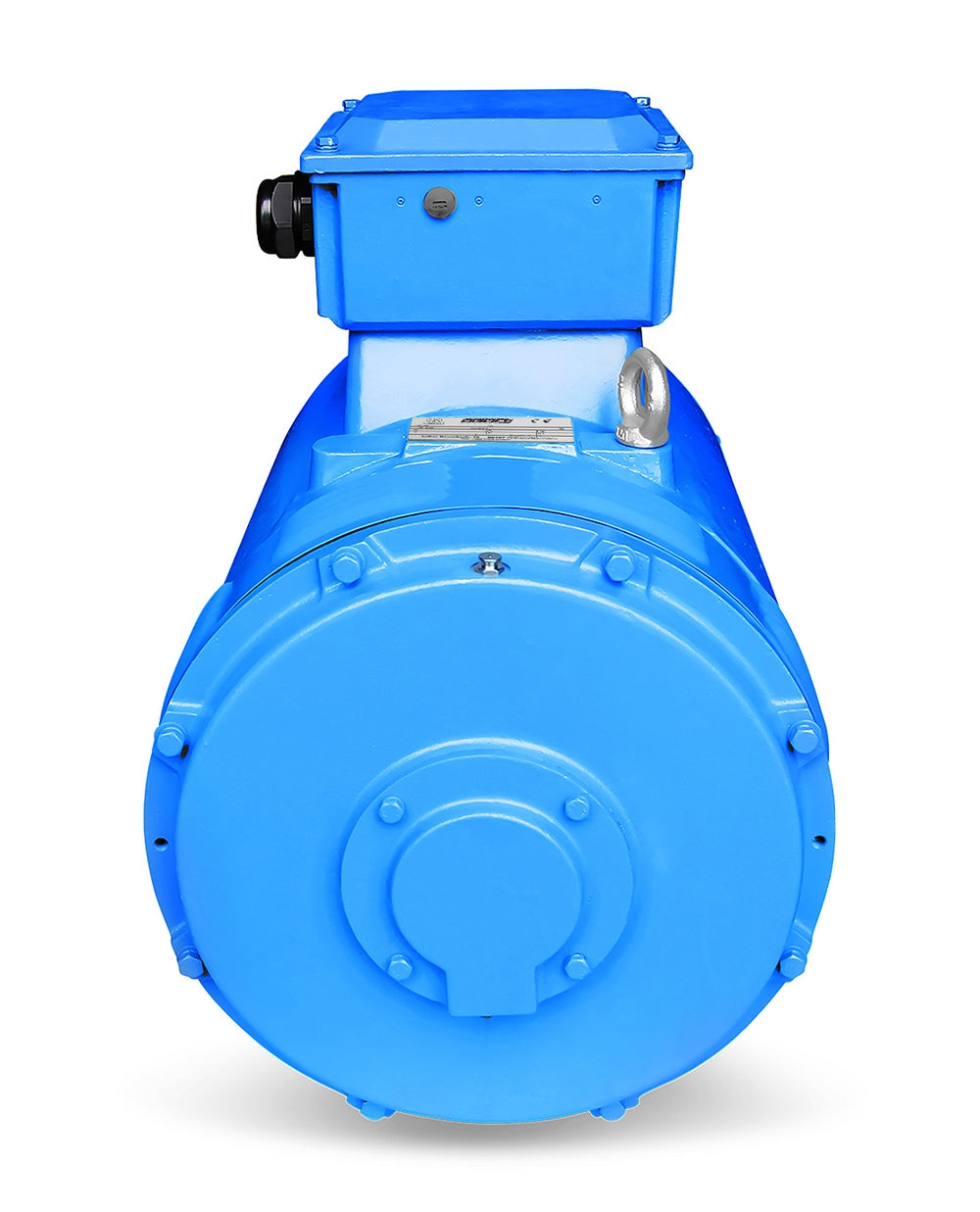

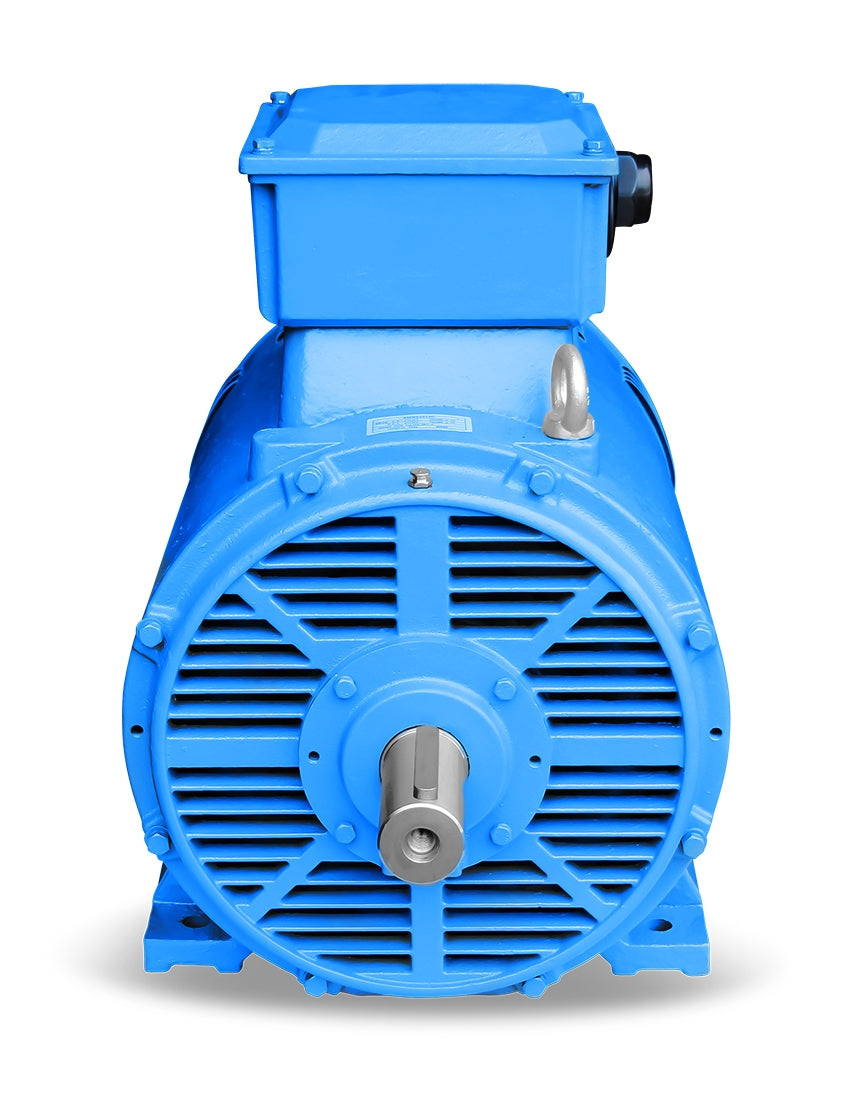

Electric motor IP23 355L-500 kW-6pol-B3

Electric motor, power= 500 kW, speed= 1000 rpm, design= B3,

Voltage= 3 x 400/690 V-50 Hz, Efficiency class= IE3, Efficiency= 95.8%, Finish= RAL 7031 (blue-grey),

Protection class = IP23, temperature sensor = 3 x PTC130°C and 3 x PTC150°C thermistors, anti-condensation heating, shaft = 100 x 210 mm

Weight= 2075 kg, Operating mode= S1- 100% ED, Terminal box position= top, Housing= grey cast iron, Insulation class= F, TEFC IC01,

Ball bearings= SKF or equivalent, cooling= internal cooling, motor feet= permanently cast (if available).

The electric motor is suitable for frequency converter use and for both directions of rotation.

According to VDE 0105 and IEC 364, all work on the electric drive must be carried out by qualified

To be carried out by qualified personnel. For modifications or special designs, please send an inquiry.

Also available in flange version for an additional charge.

All product photos are non-binding examples! Technical changes reserved.
