Key Features

  • Motor switch, 400V, right-left rotation, on-off-stop Direction of rotation = right / left (only to be operated when stationary) Switch = On, Off, Quick-Stop, lockable Motor voltage = 3 x 400V Motor current = up to 9.0A (4kW with 4-pole motor) Circuit = undervoltage release Cable length to the motor = approx
  • 70cm with cable lugs Housing = polypropylene Protection class = IP54 Plug = CEE 16A, 5-pin, 400V Dimensions = 175 x 95 112mm Weight = 550g
  • Attention = No motor protection included
Downloads
Eigenschaften

Wird geladen …

Wird geladen …
€53,27 EUR
€53,27 EUR

* plus VAT plus shipping costs

SKU: 400V-R-L-9A

Payment Methods

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Visa

Accesories

Wird geladen...
Description
Description
x

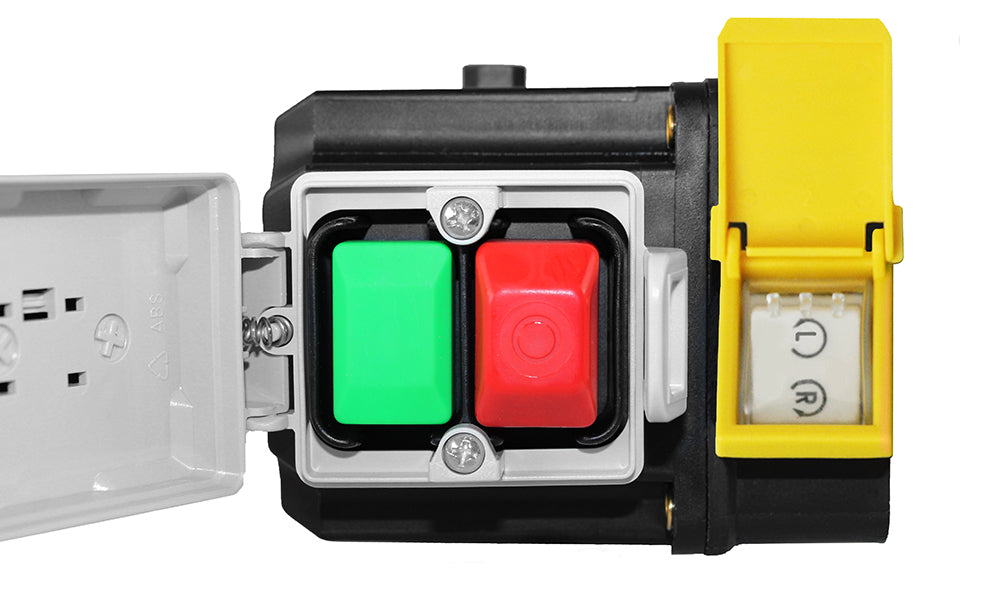

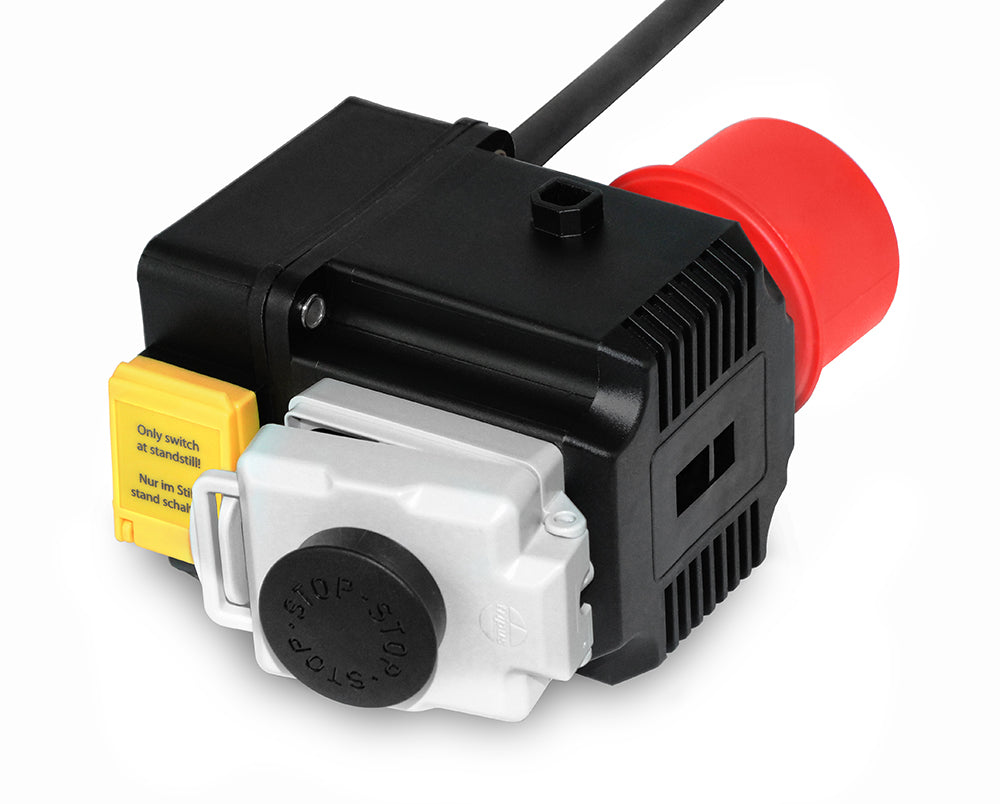

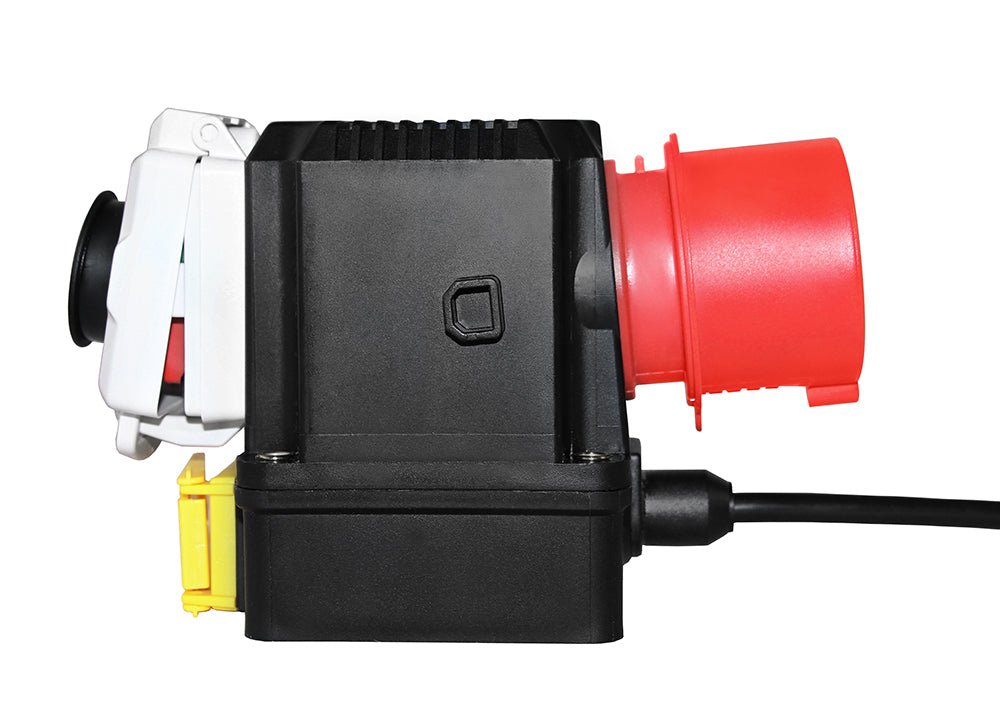

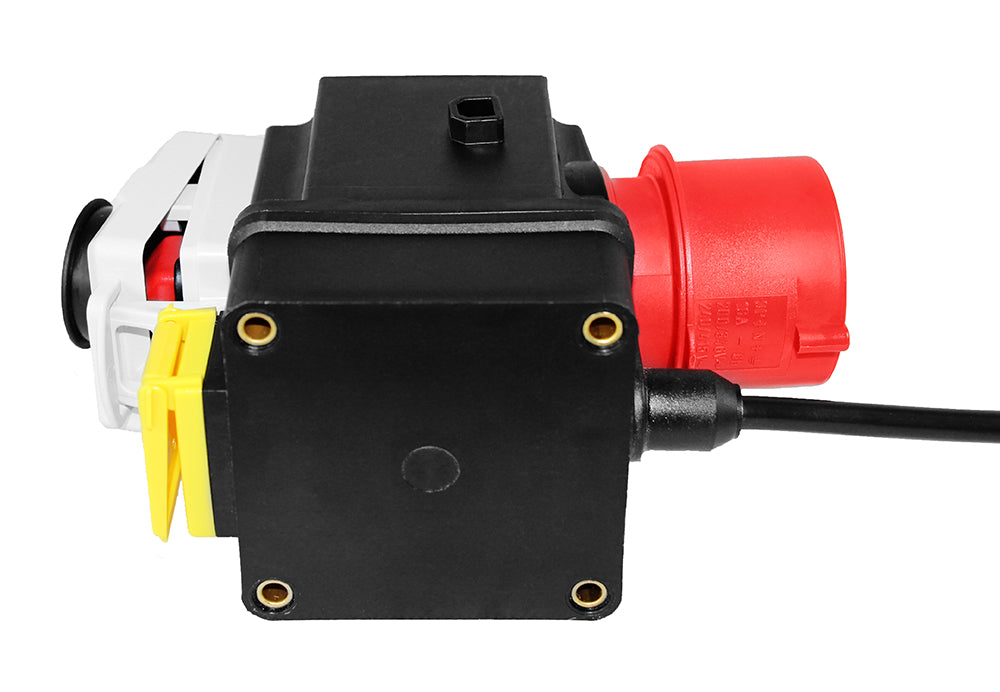

Motor switch, 400V, right-left rotation, on-off-stop

Direction of rotation = right / left (only to be operated when stationary)
Switch = On, Off, Quick-Stop, lockable
Motor voltage = 3 x 400V
Motor current = up to 9.0A (4kW with 4-pole motor)
Circuit = undervoltage release
Cable length to the motor = approx. 70cm with cable lugs
Housing = polypropylene
Protection class = IP54

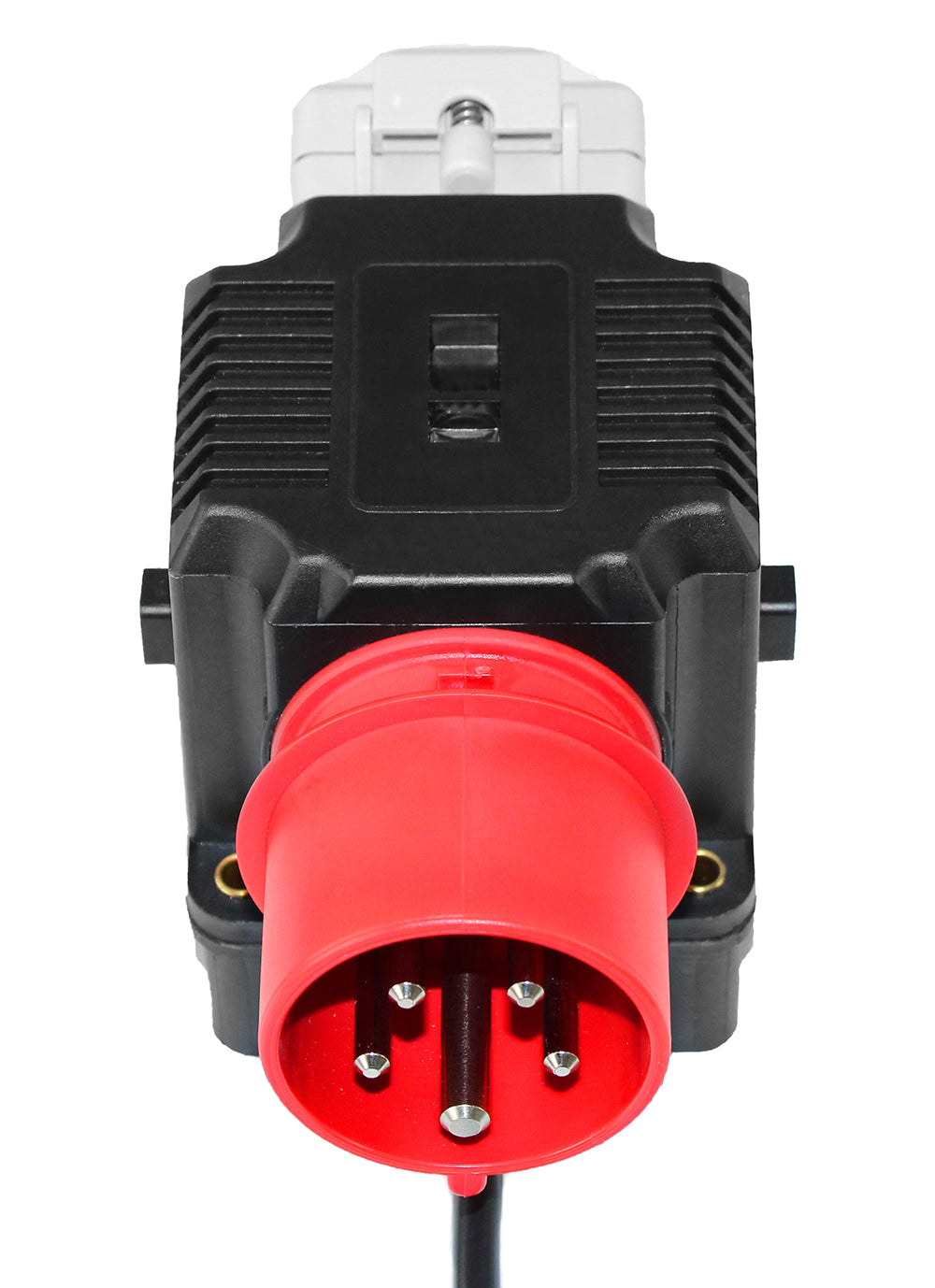

Plug = CEE 16A, 5-pin, 400V
Dimensions = 175 x 95 112mm
Weight = 550g

Attention = No motor protection included!
