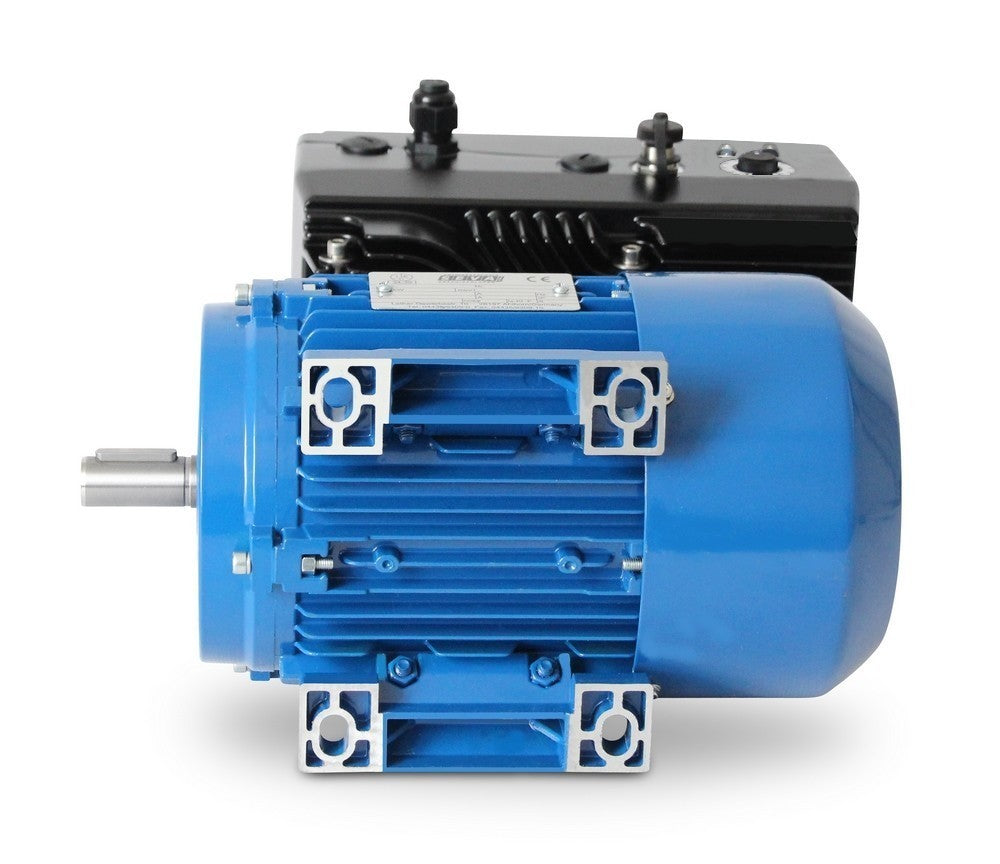

Frequency converter motor ED400B-0400-112M-4

Frequency converter, 3x 400V, EASYdrive with electric motor, 4 kW

electric motor
Power= 4 kW, Speed= 4 pole, Shaft= 28 x 60 mm, Total weight= 39 kg,
Type= B3, Input voltage= 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),
Frequency= 50/60 Hertz, Paint= RAL 5010 (Gentian Blue), Protection class= IP55,
Temperature sensor= 3 x PTC thermistors, terminal box position= top, housing= die-cast aluminum,
Insulation class= F (155°C), ball bearings= SKF, C&U, or equivalent, cooling= axial fan (plastic),

Frequency converter
Power= 4 kW, Size= B, Input voltage= 3 x 400V +10% (three-phase), Input frequency= 50/60 Hz,
Output frequency= 0- 400 Hz, EMC filter= C2, Protection class= IP65, Dimensions= 270mm x 189mm x 140mm,
Mains current (input) = 7.9 A. Ideal control range = 5- 60 Hz, below 30 Hz an external fan is used for cooling
needed.

Product information
The frequency converter offers the option of becoming “bus-capable” using fieldbus modules.
With CANopen, EtherCAT, Modbus (already included), Profibus, Profinet and Sercos, the EASYdrive
Compatibility with almost all common control environments. The customer can choose the bus system that is relevant for him
and thus ideally integrate the EASYdrive into the control environment of your application.
The required optional control variant must be specified when ordering.
The EASYdrive drive controllers are CE, UL, and CSA certified. The EASYdrive can withstand temperatures up to 150°C without the need for external filtering measures.
the EMC class C2 (for 3-phase mains supply) or C1 (for 1-phase mains supply).

! Possible variant selection !

Product selection
When selecting a frequency converter, it is important to note that there are three variants. Firstly, the device
in standard version, secondly the device with a membrane keyboard and thirdly the device with an MMI control unit.

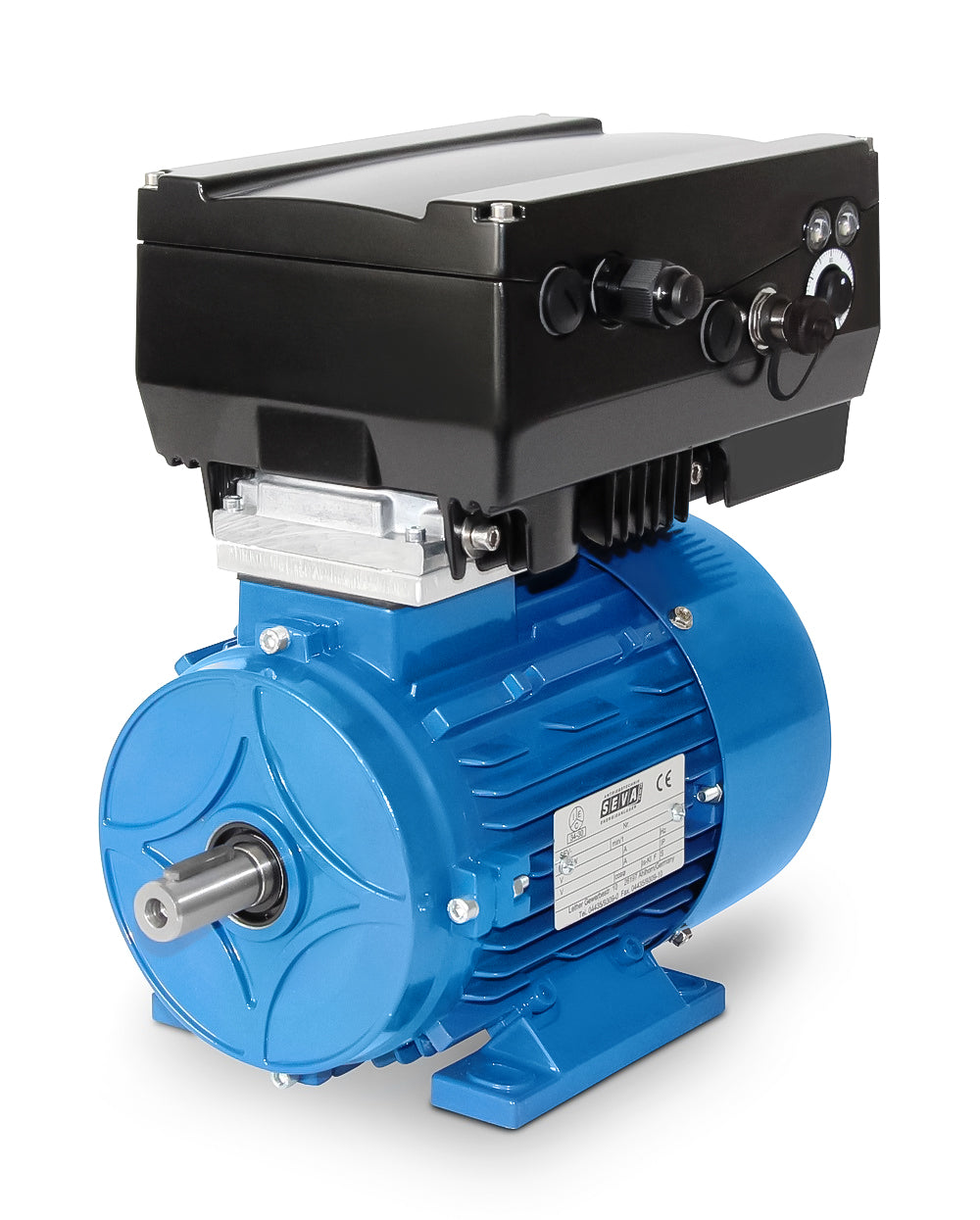

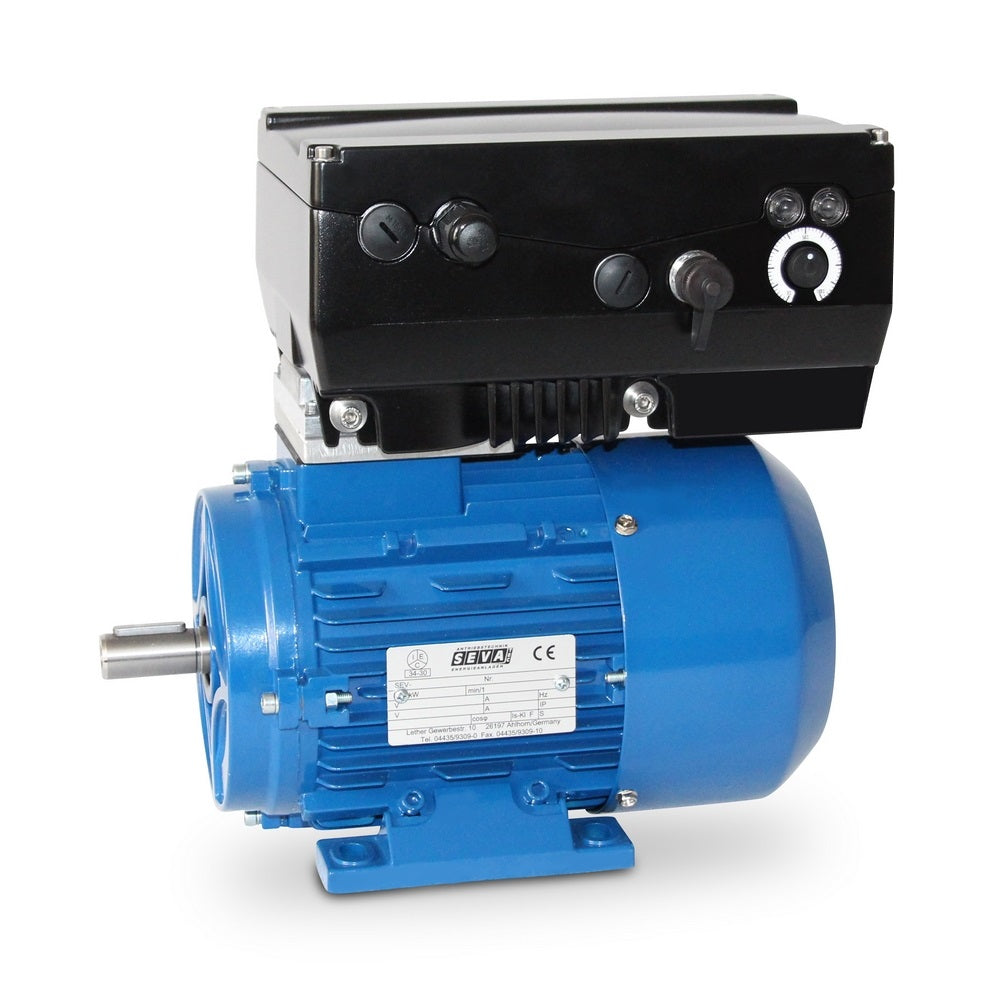

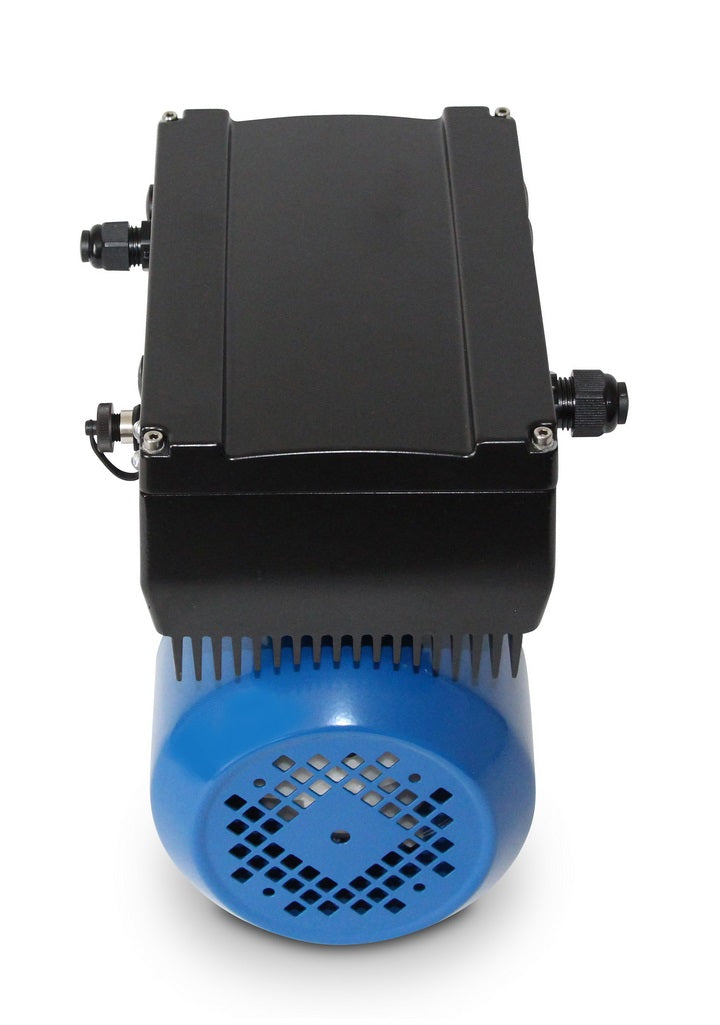

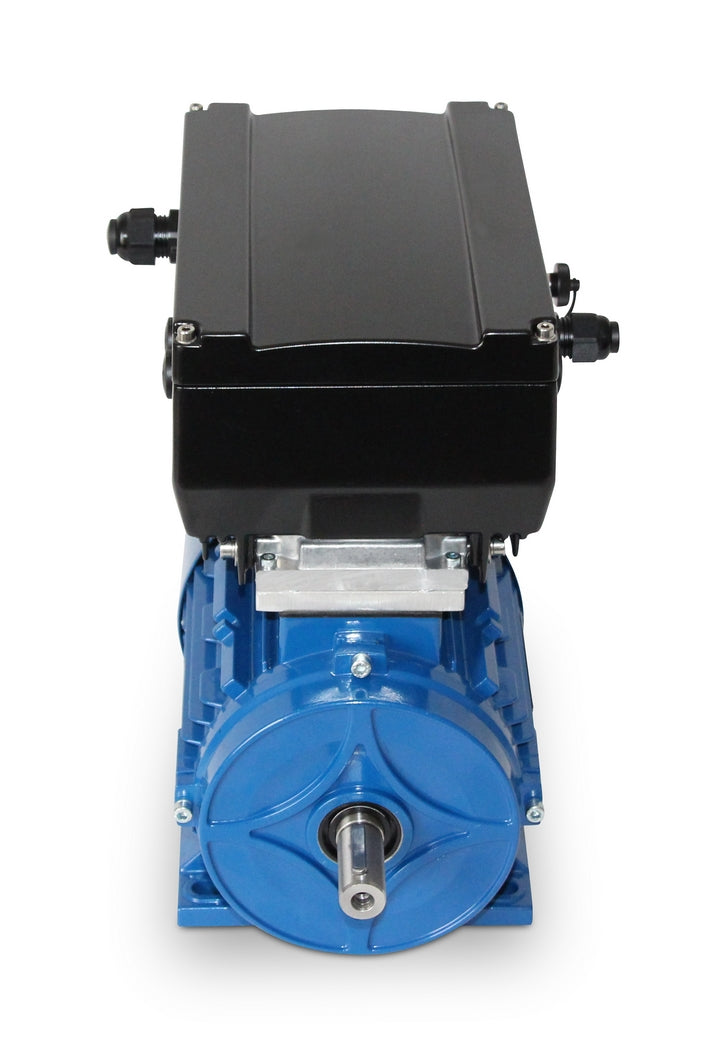

The “frequency converter in standard design” shown is fully usable and contains a side-mounted
Potentiometer, but requires a corresponding control unit for control.
To do this, you must order one of the following options:
- External control unit (MMI with cable and connector)
- Interface cable for PC programming
- Bluetooth adapter

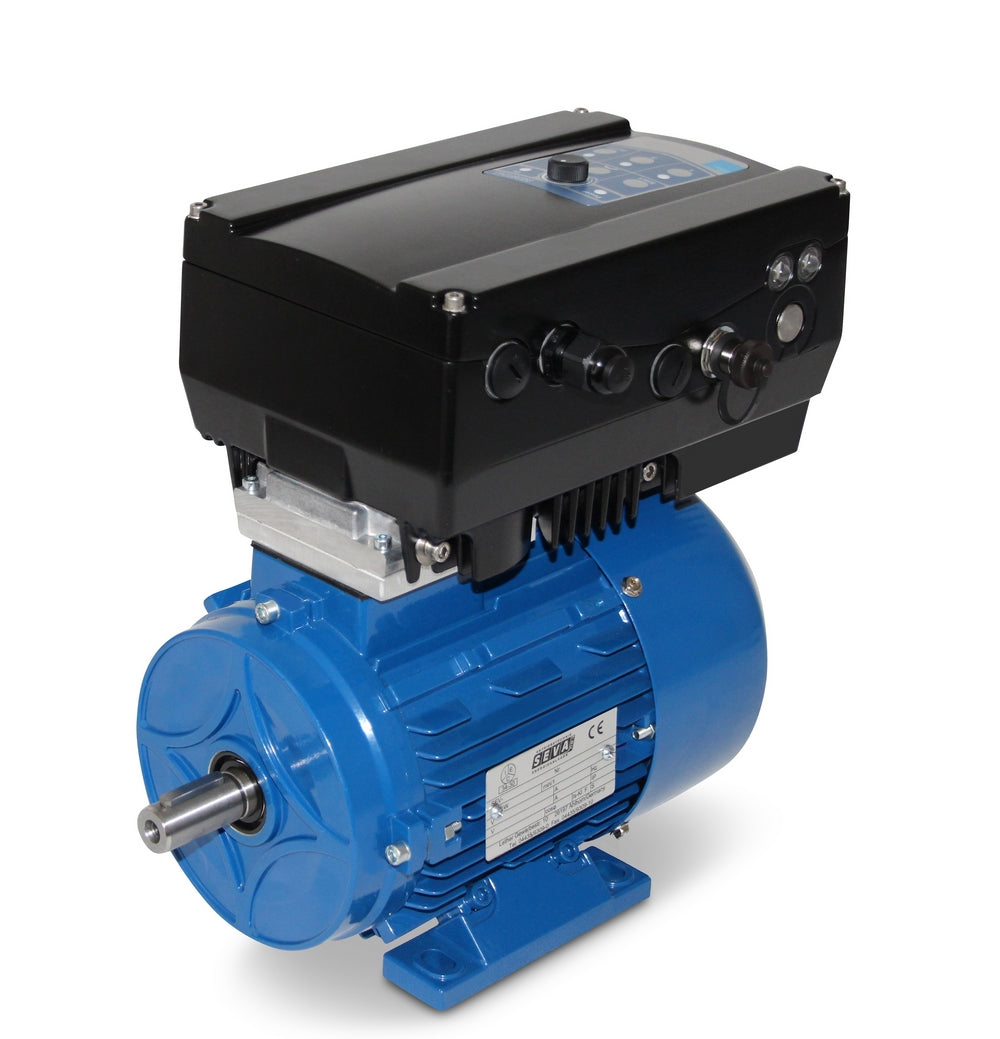

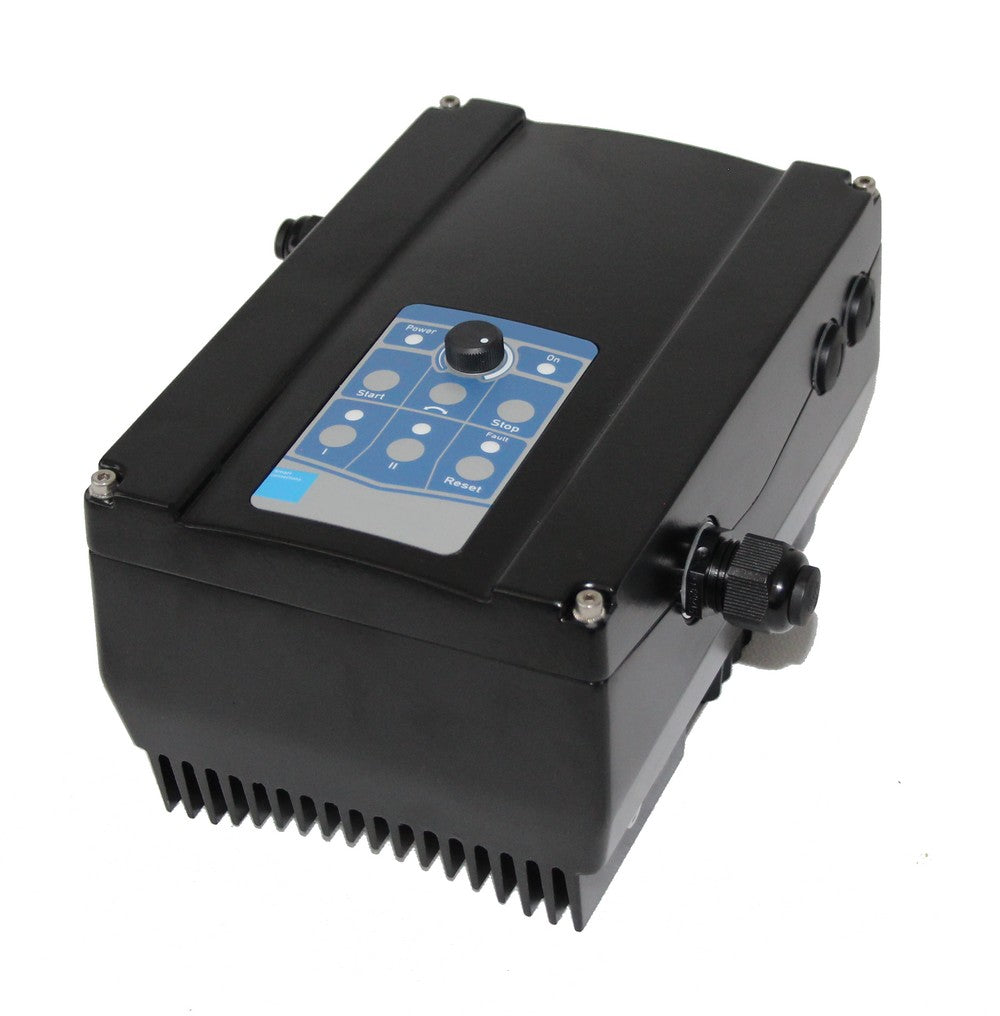

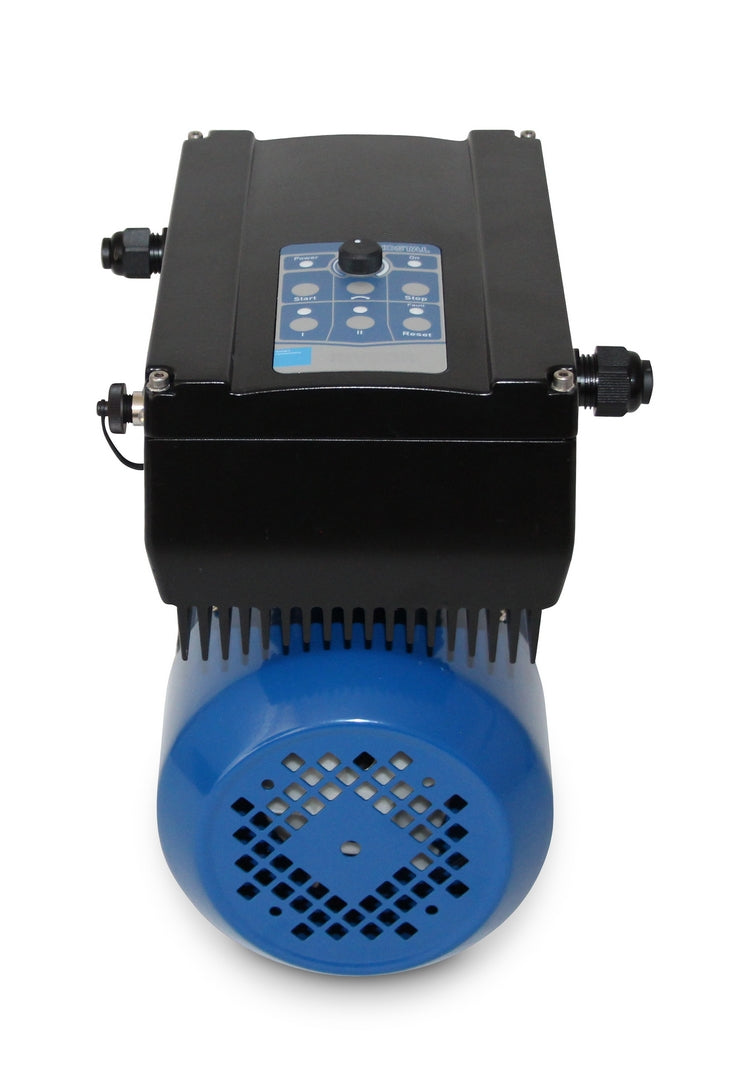

The variant "Frequency converter with membrane keyboard" contains a built-in potentiometer and offers the possibility to
To control the frequency converter directly, such as start-stop, left-right run, etc.
For parameterization, one of the following options must also be ordered:
- External control unit (MMI with cable and connector)
- Interface cable for PC programming
- Bluetooth adapter

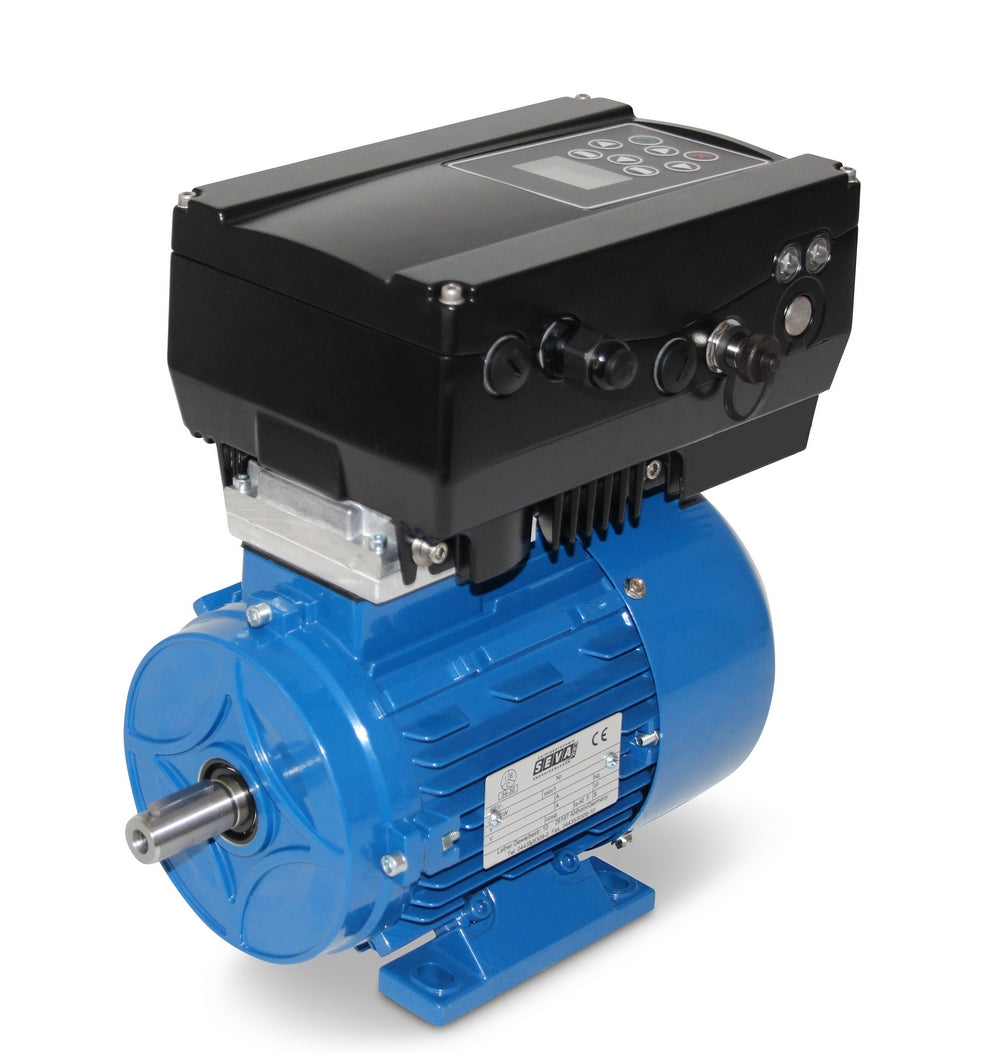

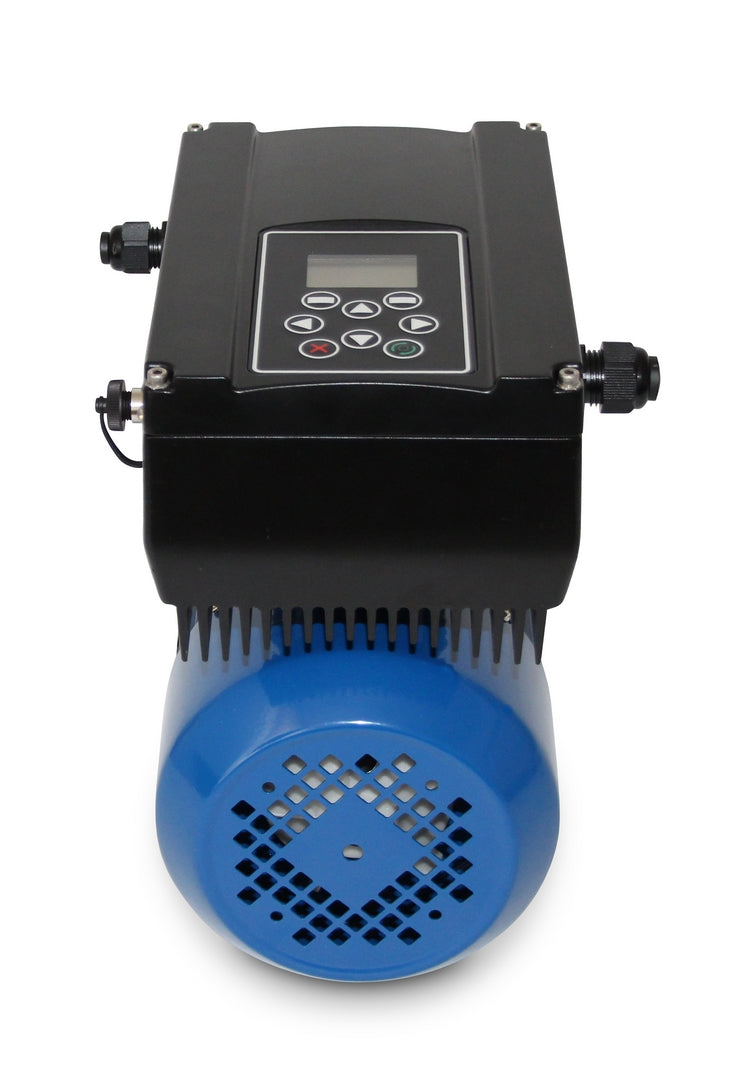

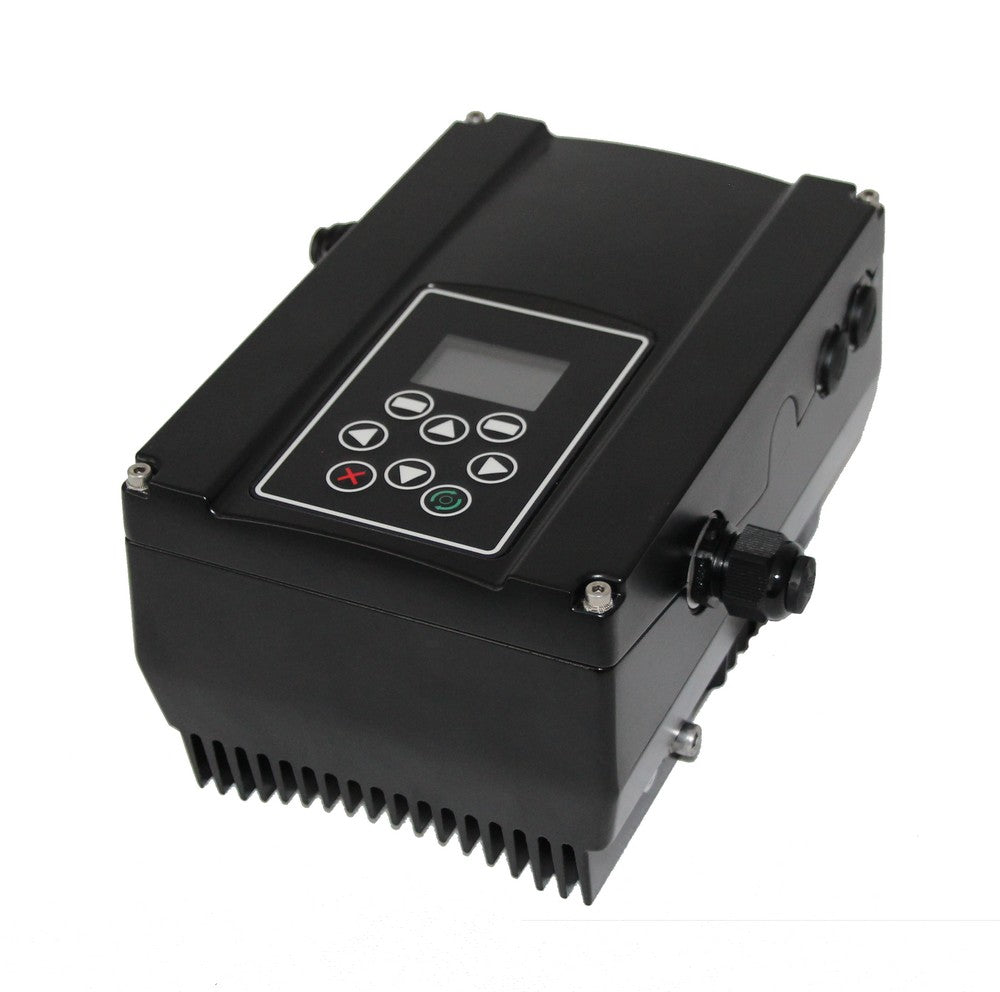

The variant "Frequency converter with MMI control unit" does not require an optional control unit,
The device cover also includes a display. The options mentioned above can be used if necessary.

programming
The three-phase motor with integrated EASYdrive frequency converter is supplied for safety reasons
not programmed! Should further parameterization be necessary, we offer this adjustment work
at an hourly rate of 86,-€/ net.

Important instructions
This drive is a custom-made product. Cancellation or revocation of the purchase is not possible!
All product photos are non-binding examples! Technical changes reserved.
