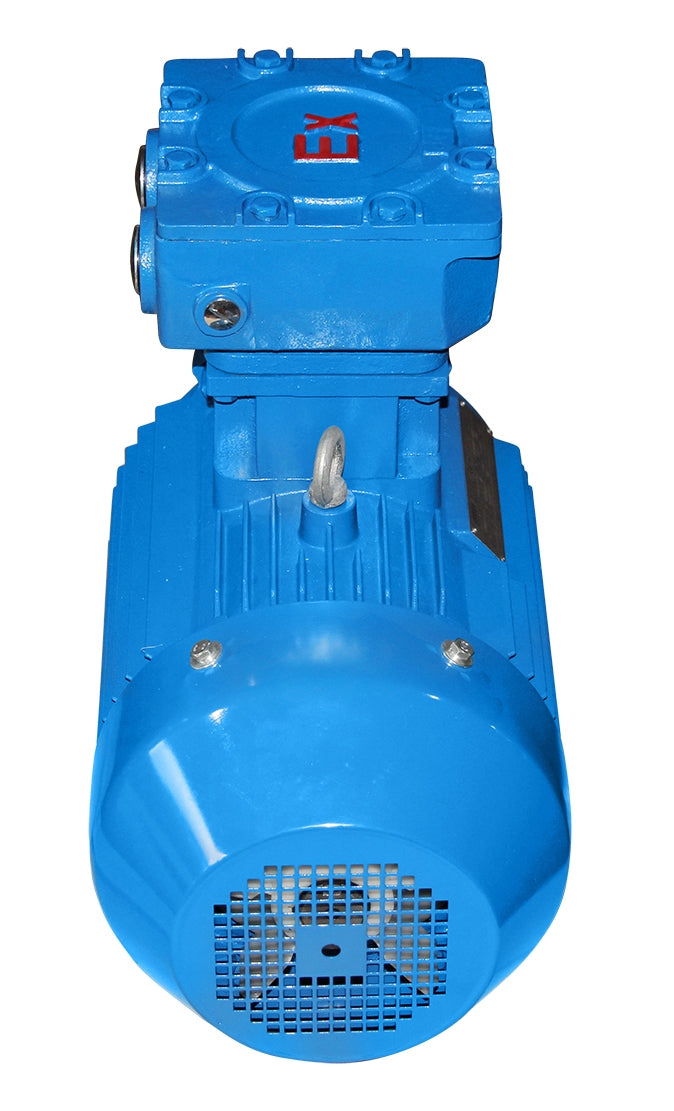

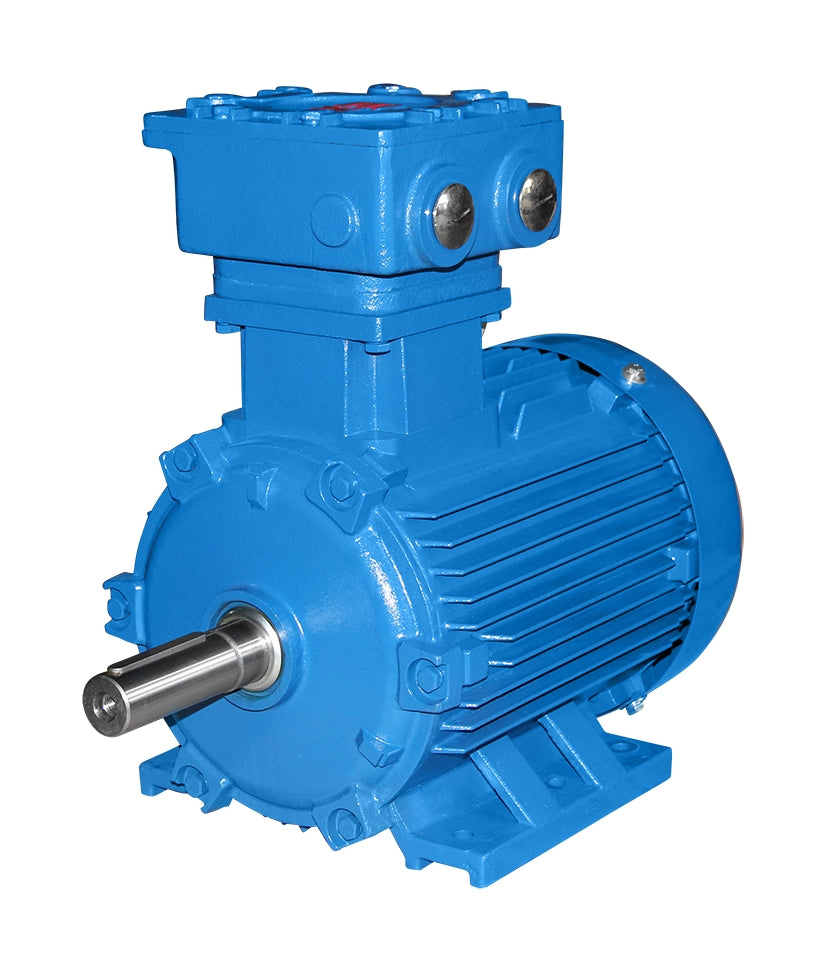

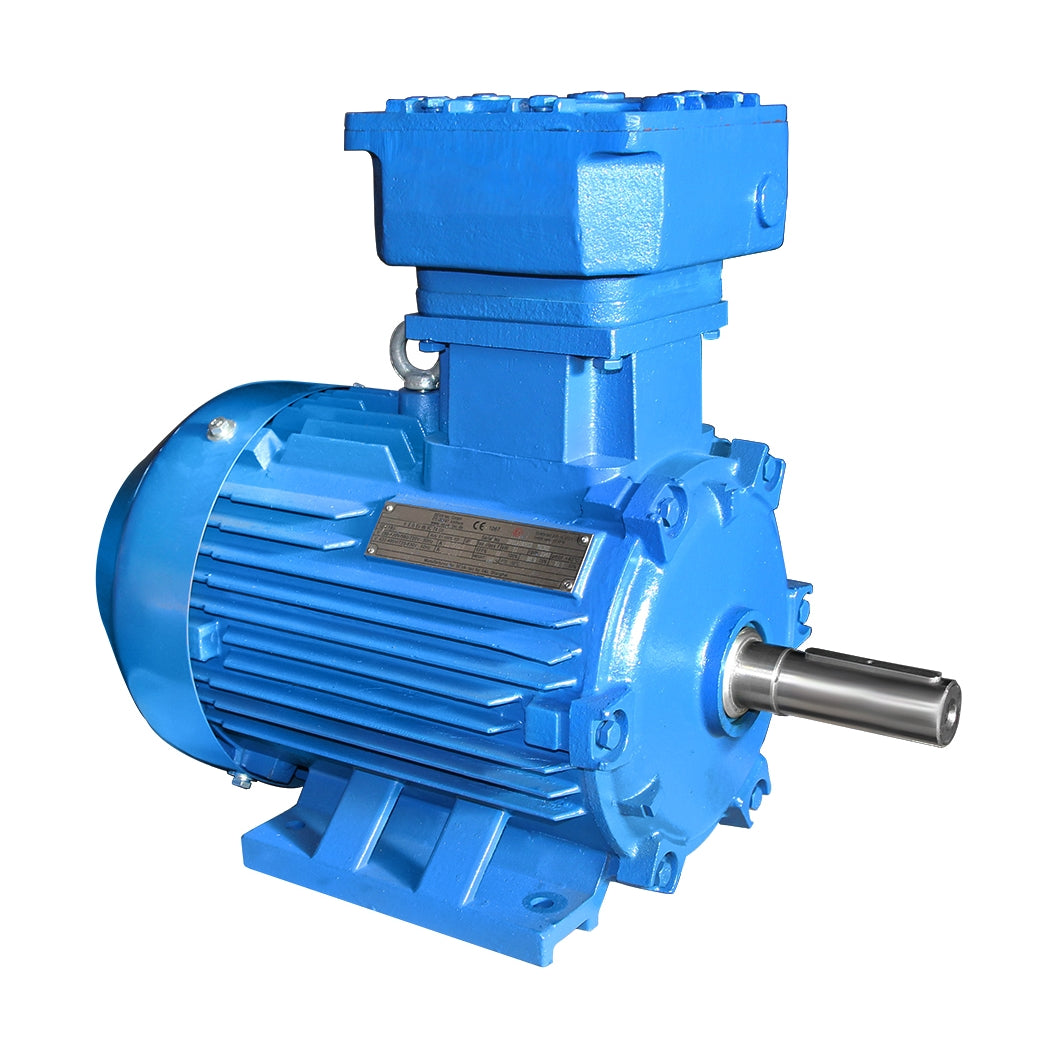

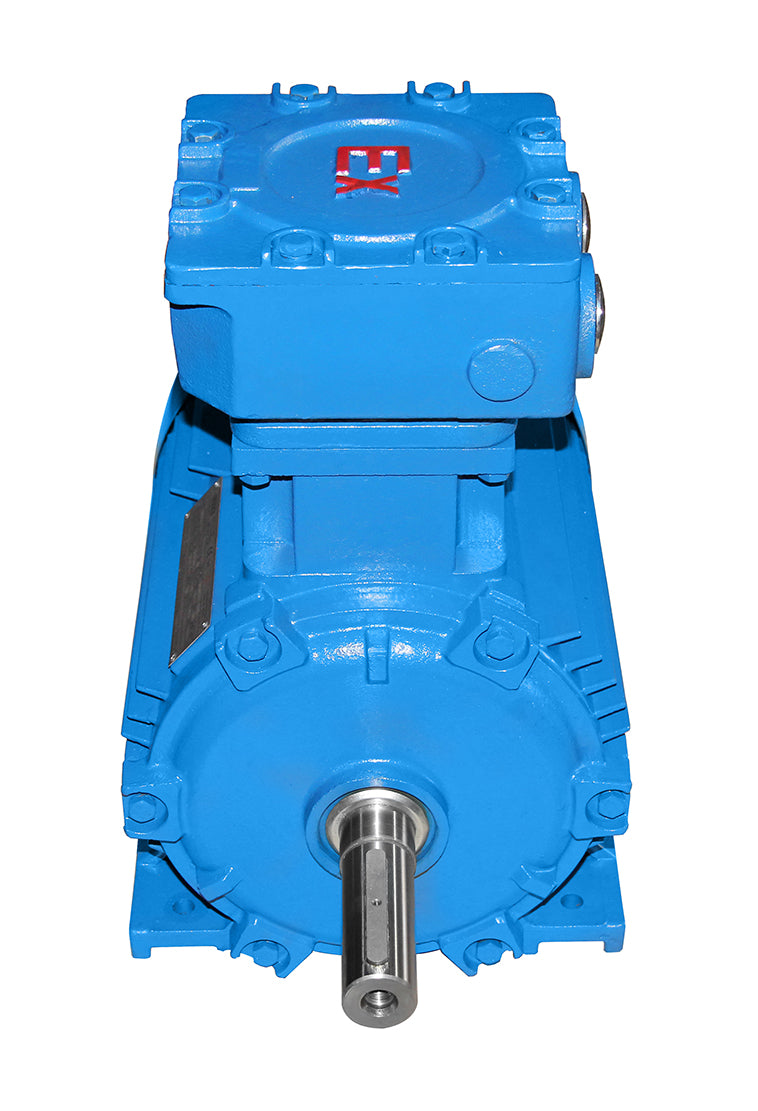

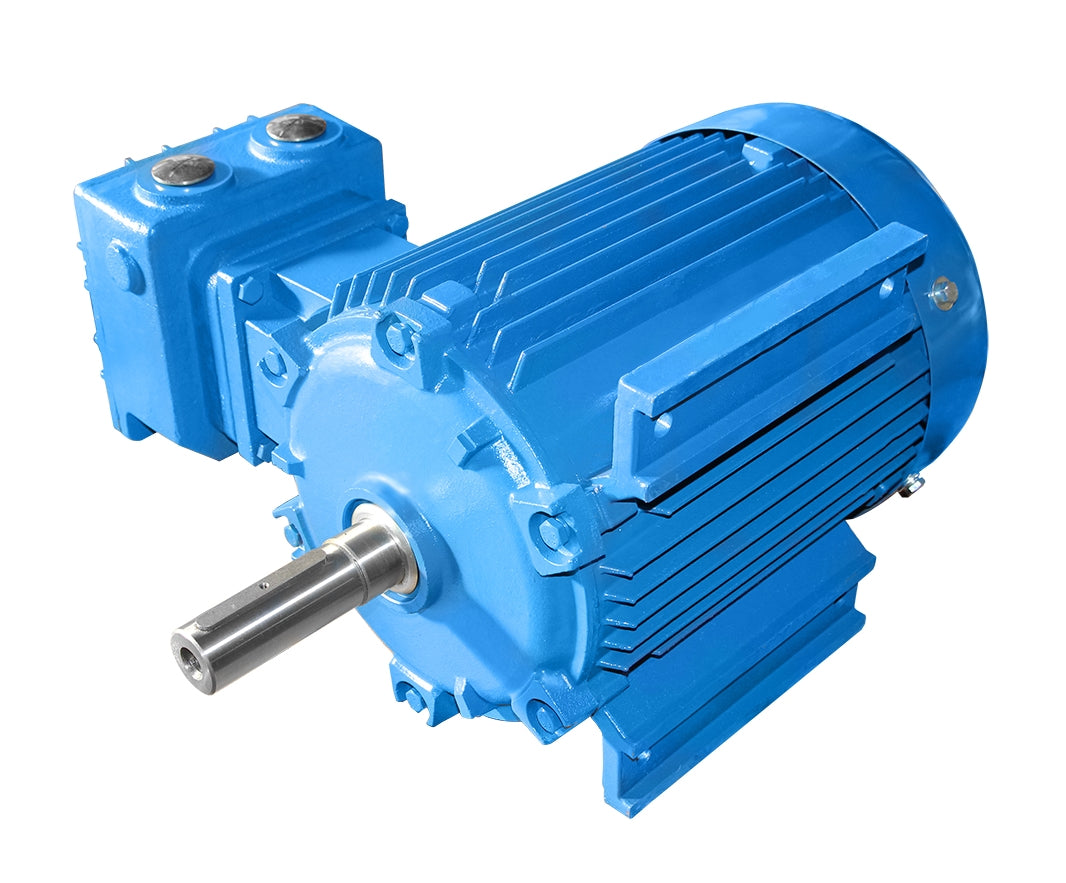

ATEX electric motor ASA 250M 55 kW 4-pole B3

Flameproof encapsulated electric motor according to ATEX 2G Ex/d IIC T4 ,

Power= 55 kW, Speed= 1500 rpm, Voltage= 3 x 400/690V, Weight= 630 kg, Frequency= 50 Hz,

Paint finish= RAL 5010 (gentian blue), protection class= IP55, temperature sensor= 3 x PTC thermistors,

Operating mode= S1- 100% ED, Efficiency class= IE3, Housing= Cast iron, Insulation class= F (155°C),

Ball bearings= SKF or equivalent, cooling= axial fan, motor feet= permanently encapsulated (if available).

The explosion-proof electric motor is suitable for frequency converter use.

According to VDE 0105 and IEC 364, all work on the electric drive must be carried out by qualified

To be carried out by qualified personnel. For modifications or special designs, please send an inquiry.

Also available in flange version for an additional charge.

All product photos are non-binding examples! Technical changes reserved.
