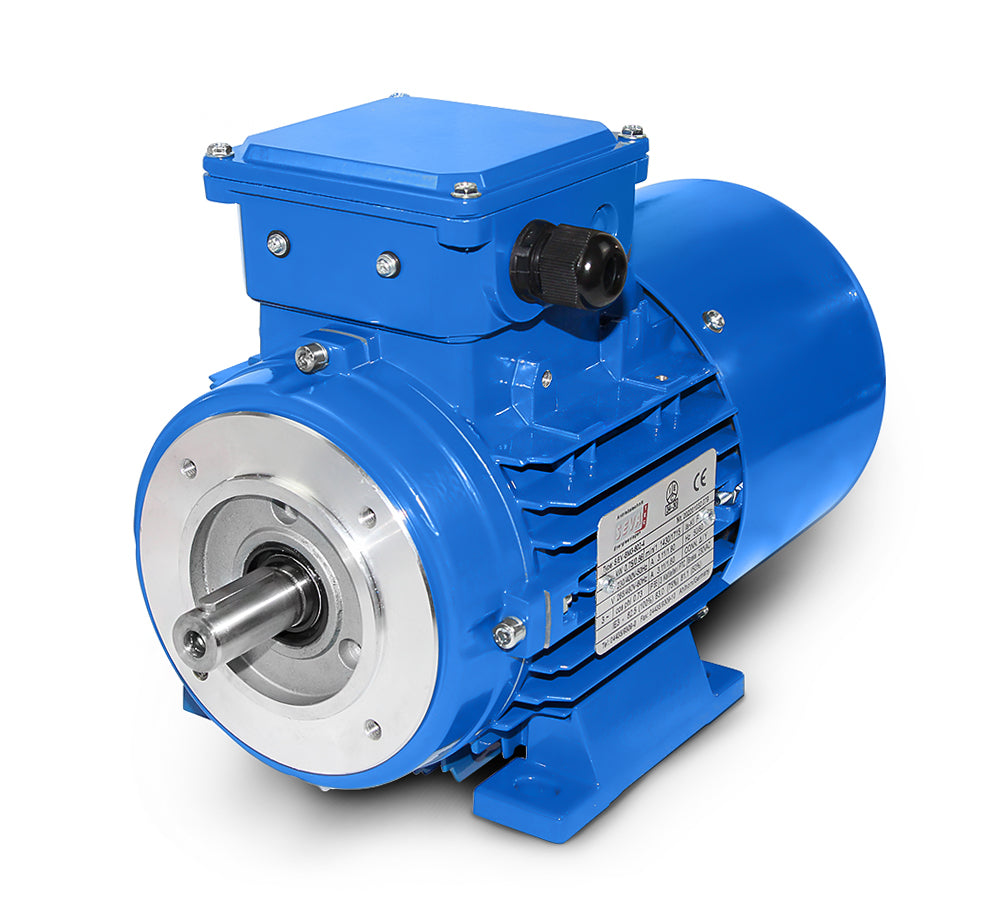

Brake motor BM3 132M1-7.5 kW-4pol-B34

Brake motor, power= 7.5 kW, speed= 1500 rpm,

Design= B34, Shaft= 38 x 80 mm, Efficiency class= IE3, Efficiency= 90.4%, Weight= xx kg,

Voltage = 3 x 400/690 V-50 Hz, 3 x 460/795 V-60 Hz (± 5% according to VDE 0530), Temperature sensor = 3 x PTC thermistors,

Color= RAL 5010 (gentian blue), frequency= 50/60 Hertz, protection class= IP55, brake= 100 Nm 400V with rectifier.

Terminal box position= top (rotatable), Housing= die-cast aluminum, Insulation class= F (155°C), Shaft= 38 x 80 mm,

Ball bearings= SKF, C&U or equivalent, cooling= axial fan (plastic), motor feet= can be screwed on or off.

The electric motor is suitable for frequency converter use and complies with IEC 60034-30:2008.

The spring-loaded brake brakes the AC motor when the motor is de-energized. In converter operation, the brake is

or the brake rectifier can be controlled externally. A manual release lever is optionally available for mechanical release.

The brake motor is suitable for both directions of rotation.

All product photos are non-binding examples! Technical changes reserved.
