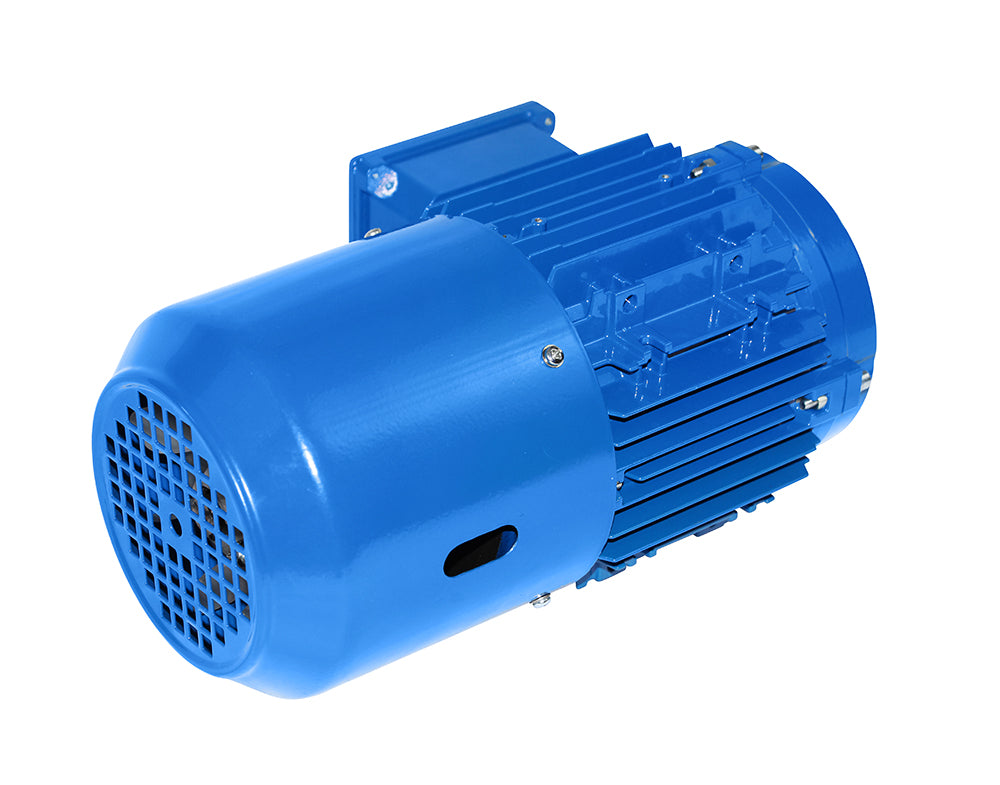

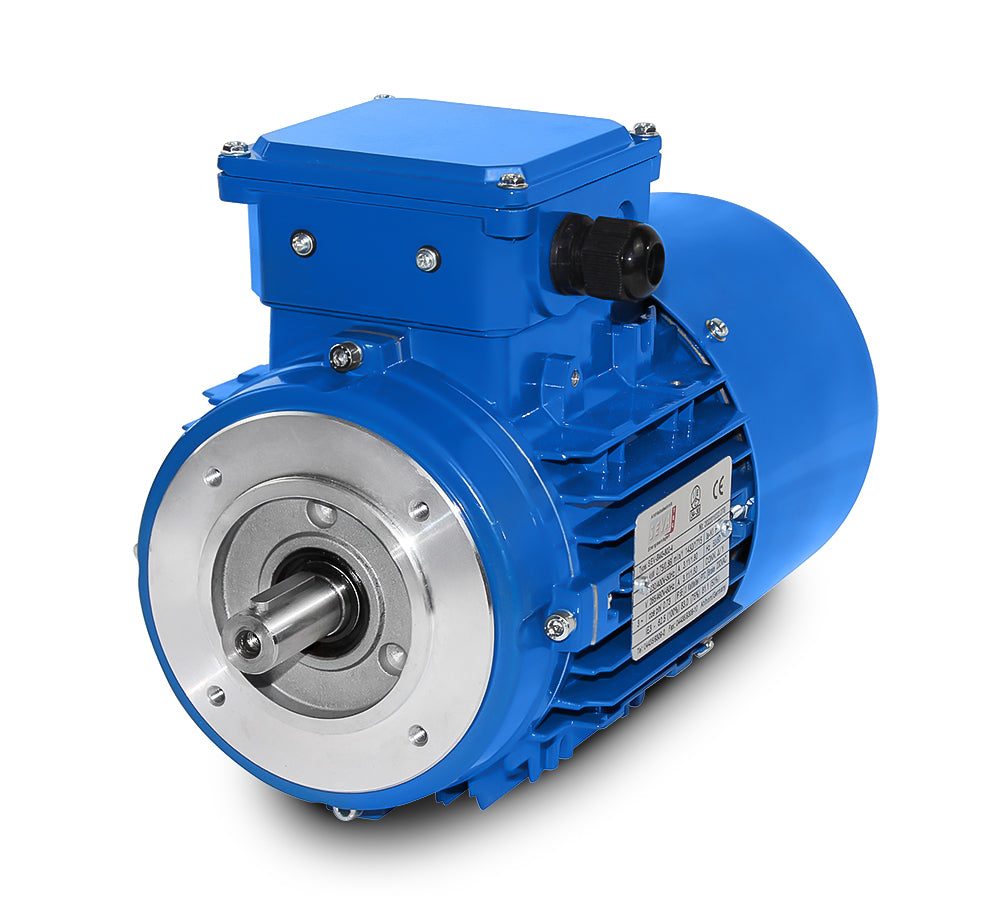

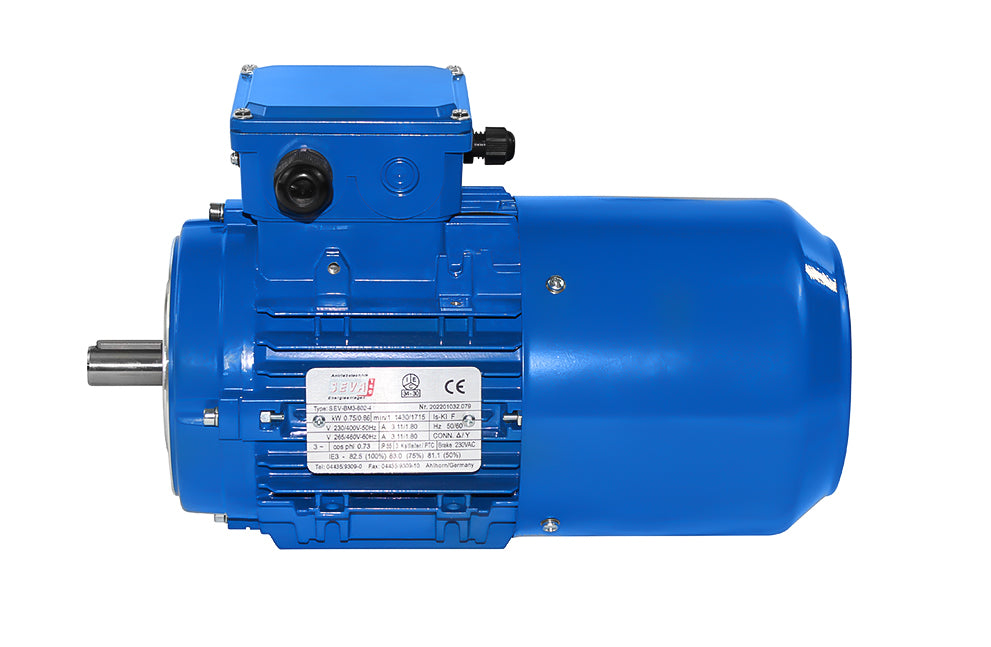

Brake motor BM3 90S-0.75 kW-6pol-B14

Brake motor, power= 0.75 kW, speed= 1000 rpm,

Design= B14, Shaft= 24 x 50 mm, Efficiency class= IE3, Efficiency= 78.9%, Weight= xx kg,

Voltage = 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530), Temperature sensor = 3 x PTC thermistors,

Color= RAL 5010 (gentian blue), frequency= 50/60 Hertz, protection class= IP55, brake= 16 Nm 230V with rectifier.

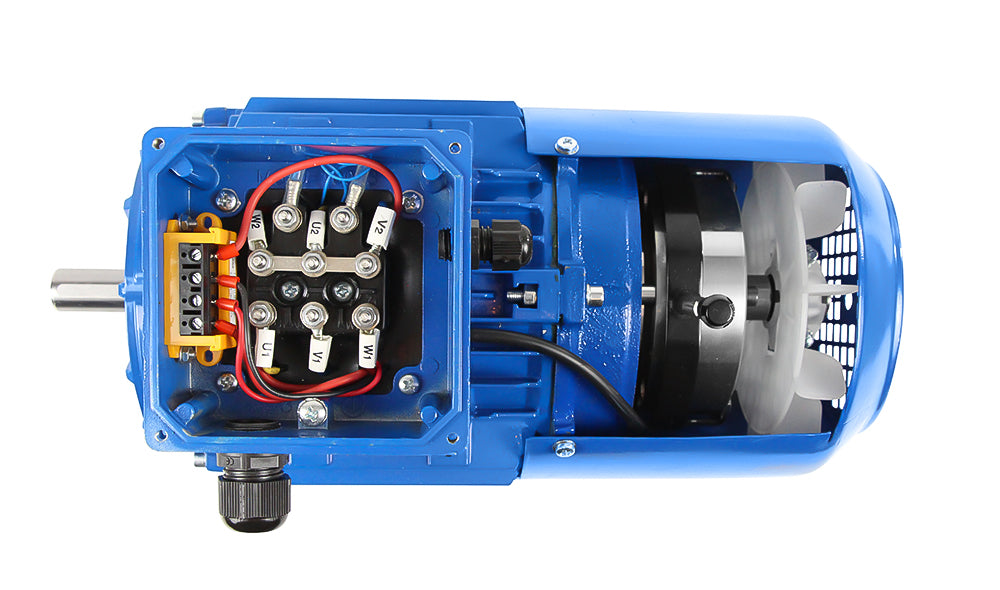

Terminal box position= top (rotatable), Housing= die-cast aluminum, Insulation class= F (155°C), Shaft= 24 x 50 mm,

Ball bearings= SKF, C&U or equivalent, cooling= axial fan (plastic), motor feet= can be screwed on or off.

The electric motor is suitable for frequency converter use and complies with IEC 60034-30:2008.

The spring-loaded brake brakes the AC motor when the motor is de-energized. In converter operation, the brake is

or the brake rectifier can be controlled externally. A manual release lever is optionally available for mechanical release.

The brake motor is suitable for both directions of rotation.

All product photos are non-binding examples! Technical changes reserved.
