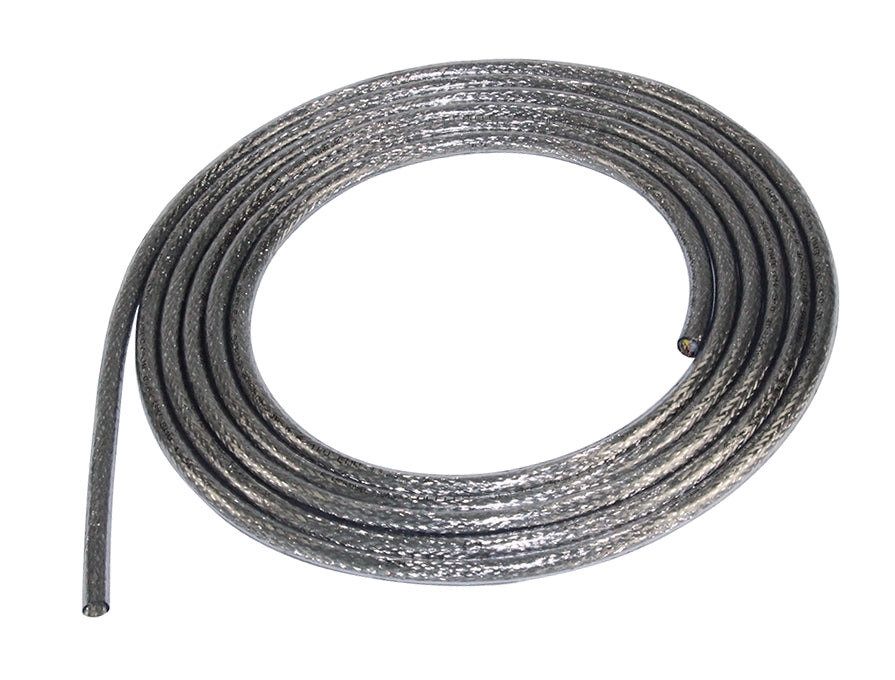

SEVA motor connection cable shielded 4 x 2.5 mm²

EMC-optimized cable 4 x 2.5 mm² between frequency converter and motor, low-capacitance, double-shielded.

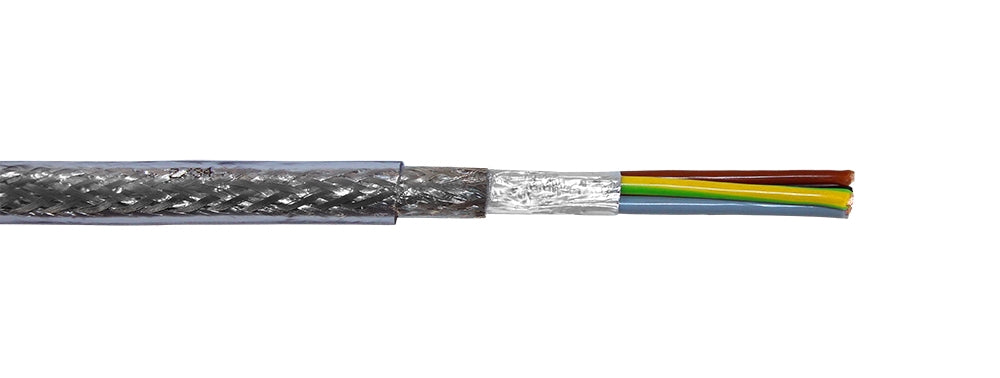

Shielding consists of an aluminum-clad foil wrapping combined with tinned copper braid.

Technical data:
Classification ETIM 5: ETIM 5.0 Class ID: EC000057
ETIM 5.0 Class Description: Power cable
Classification ETIM 6: ETIM 6.0 Class ID: EC000057
ETIM 6.0 Class Description: Power cable
Wire identification code: Colored according to HD 308 S2 VDE 0293-308
Conductor construction: Fine-wire according to VDE 0295 Class 5/IEC 60228 Class 5
Minimum bending radius:
Occasionally moved: 15 x outer diameter
Permanently installed: 4 x outer diameter
Nominal voltage: U0/U: 600/1000 V
Test voltage: wire/wire: 4 kV
Core/shield: 4 kV
Temperature range: Moving: -5°C to +70°C
Permanently installed: -40°C to +70°C
PVC outer jacket: transparent
Cable diameter approx. 12.4 mm

Please select the cable length.

The cables are manufactured to customer order. Cancellation or revocation of the purchase is not possible!
All product photos are non-binding examples!
