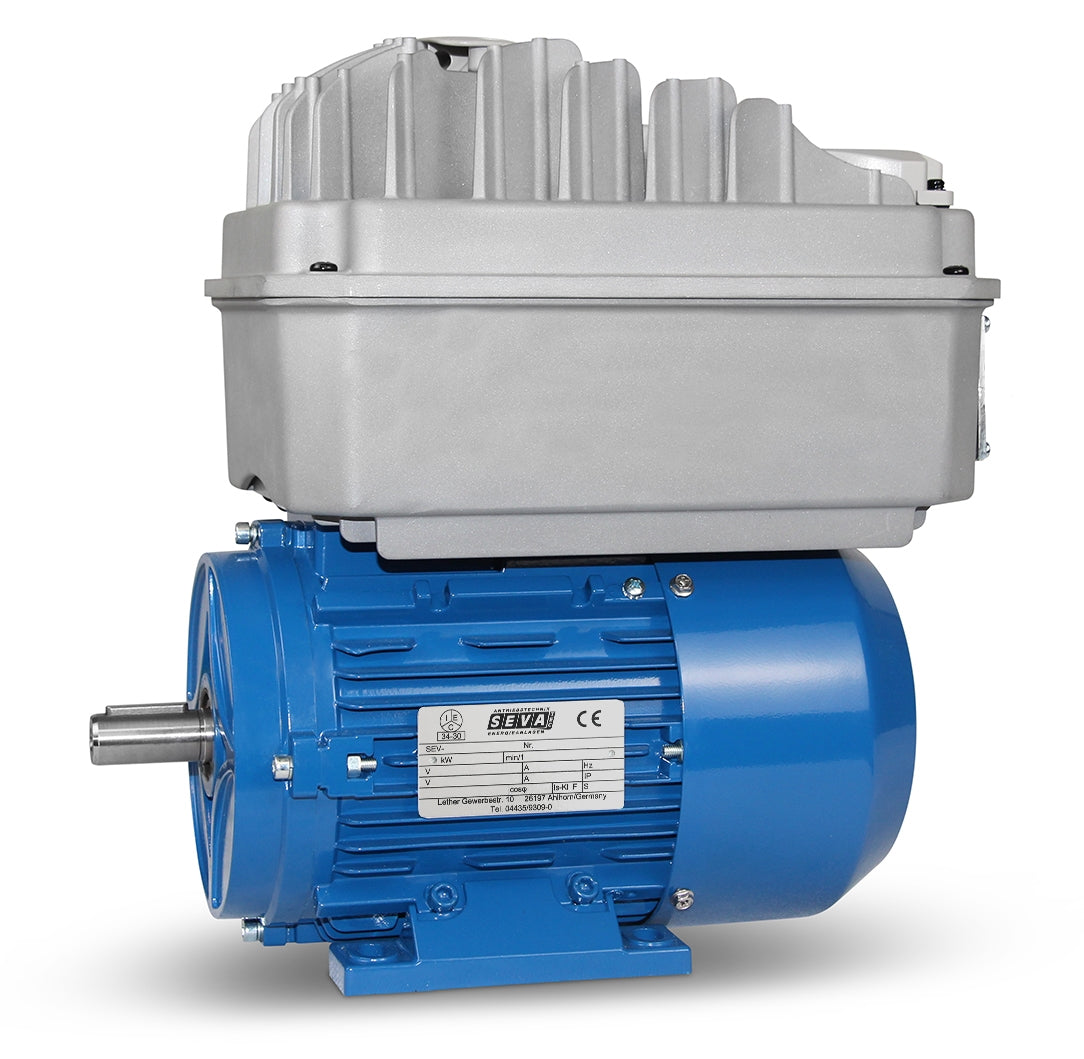

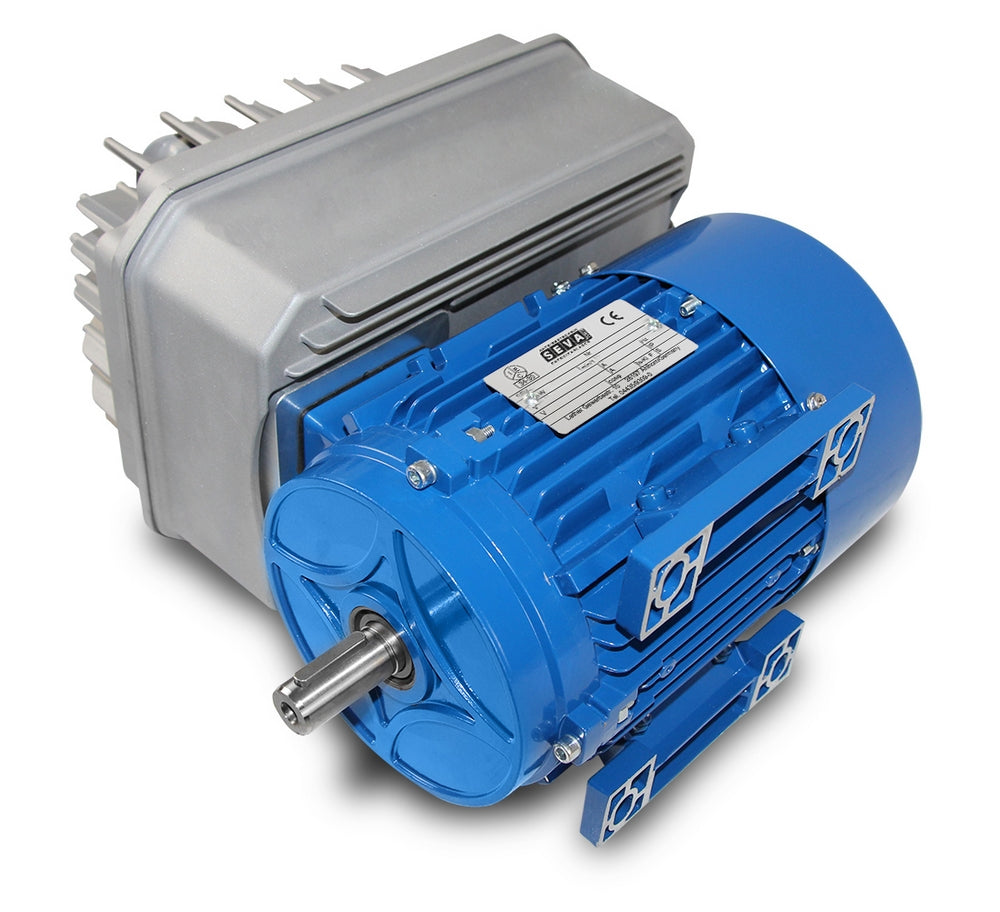

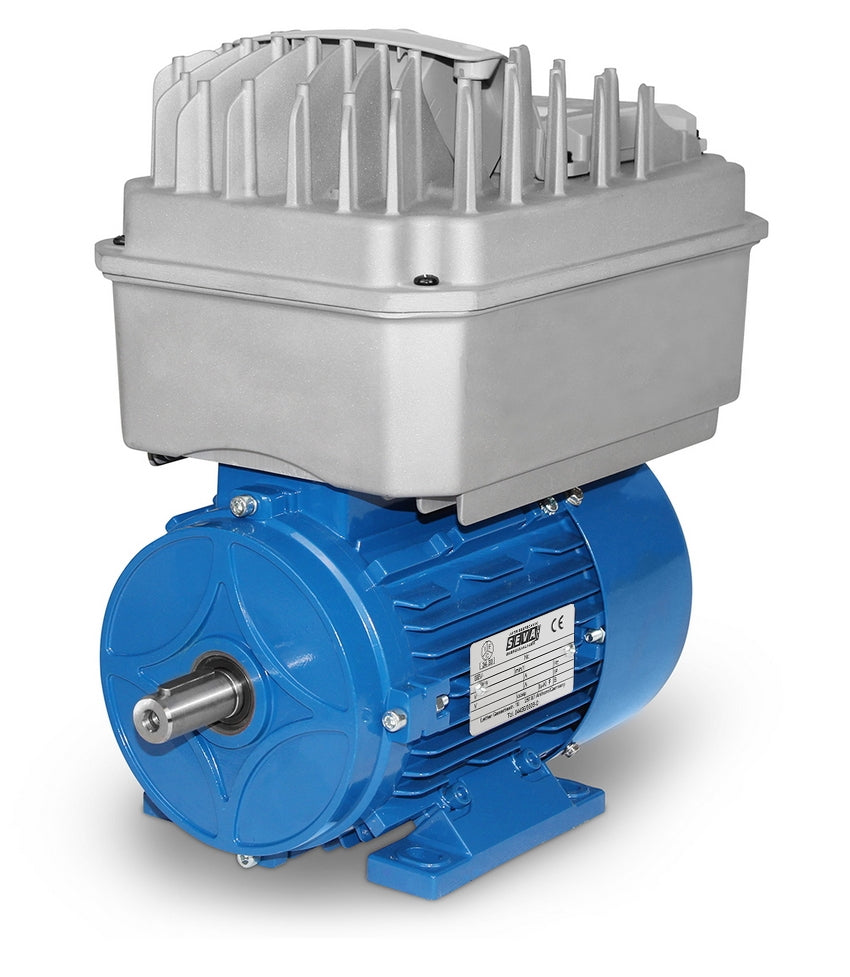

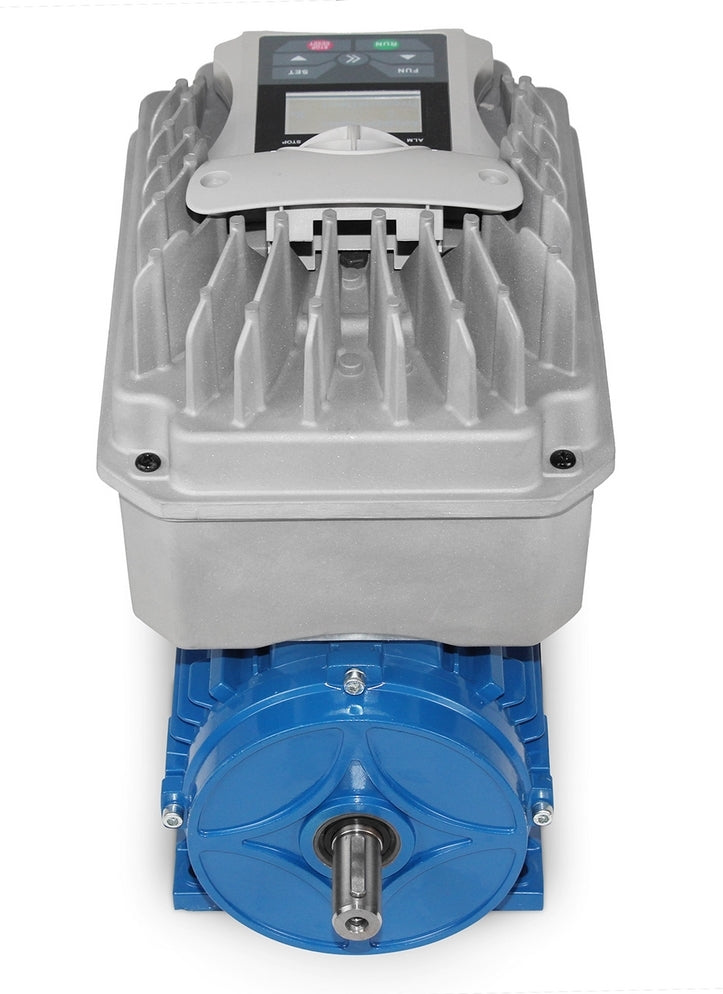

Frequency converter motor SD230A-0037-712-4

Frequency converter, 1x 230V, SMARTdrive with electric motor, 0.37 kW

electric motor
Power= 0.37 kW, Speed= 4 poles, Shaft= 14 x 30 mm, Total weight= 8.5 kg,
Type= B3, Input voltage= 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),
Frequency= 50/60 Hertz, Paint= RAL 5010 (Gentian Blue), Protection class= IP55,
Temperature sensor= 3 x PTC thermistors, terminal box position= top, housing= die-cast aluminum,
Insulation class= F (155°C), ball bearings= SKF, C&U, or equivalent, cooling= axial fan (plastic),

Frequency converter
Power= 0.75 kW, Size= J1, Input voltage= 1 x 230 V +10% (single-phase), Input frequency= 50/60 Hz,
Output frequency = 0-650 Hz, EMC filter = C3, protection class = IP66, dimensions = approx. 270 mm x 190 mm x 165 mm,

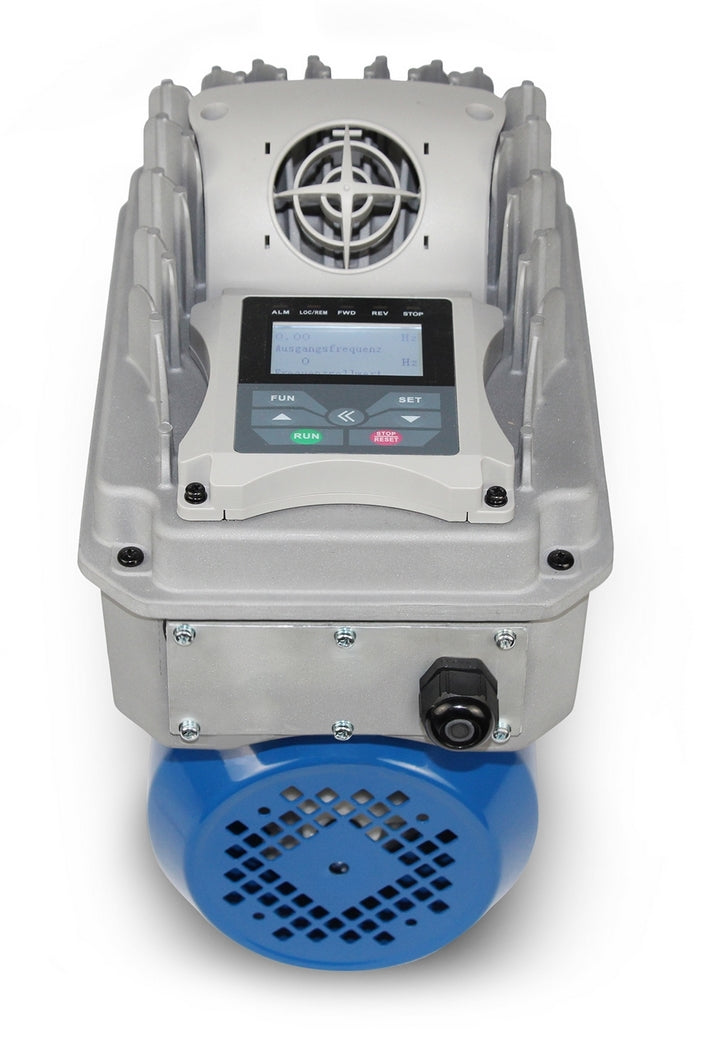

Display= 4 line plain text LCD. Ideal control range= 5 - 60 Hz, with constant nominal torque, below 30 Hz
An external fan is required for cooling. Optionally with external fan installed. Please select the control range.

Product information
DSP based high-tech motor control concept with V/Hz, SENSORLESS VECTOR, CLV and PMM algorithms.
Intelligent AUTOTUNING functions for quick and easy setup. Robust design, full metal housing,
Thermally decoupled from the motor, IP55/NEMA4, vibration-resistant (4G). Flexibly configurable 4-line LCD display.
Prepared for common fieldbus systems. Equipped with all standard frequency converter functions, thus
Suitable for universal use, including retrofit PID controller. EMC filter installed as standard.
Optional C1 filter available with installation kit. Software tools for inverter control, programming, and diagnostics.
Parameter copy stick available. Compatible with globally applicable standards.

programming
The three-phase motor with integrated SMARTdrive frequency converter is supplied for safety reasons
not programmed! Should further parameterization be necessary, we offer this adjustment work
at an hourly rate of 86,-€/ net.

Important instructions
This drive is a custom-made product. Cancellation or revocation of the purchase is not possible!
All product photos are non-binding examples! Technical changes reserved.
