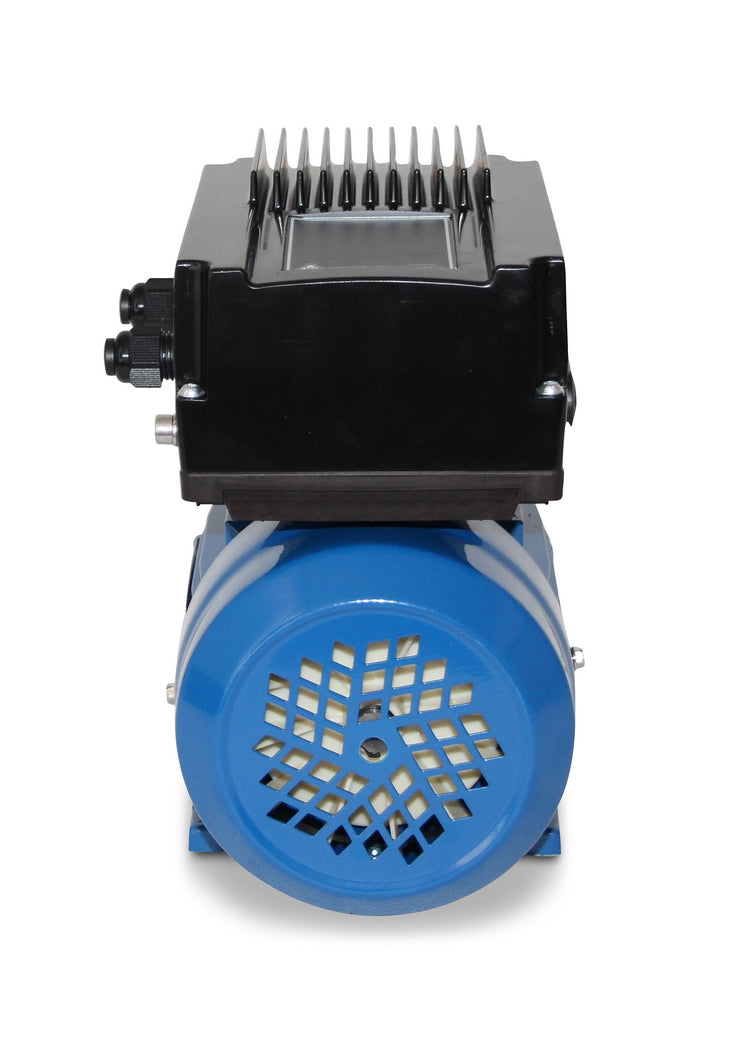

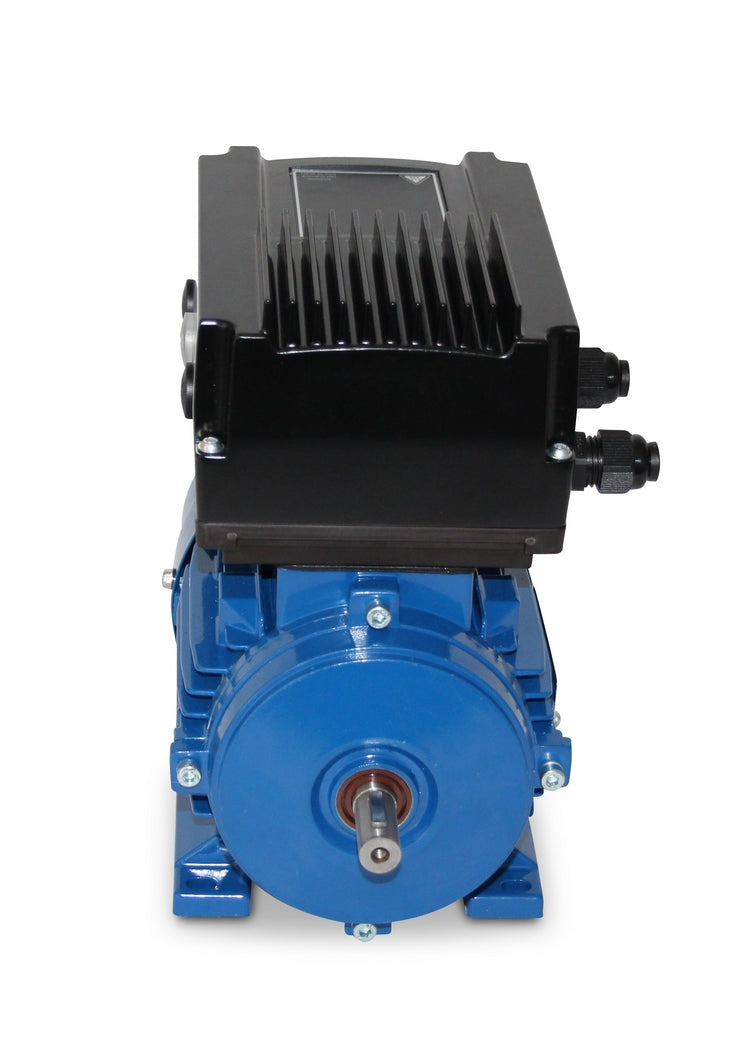

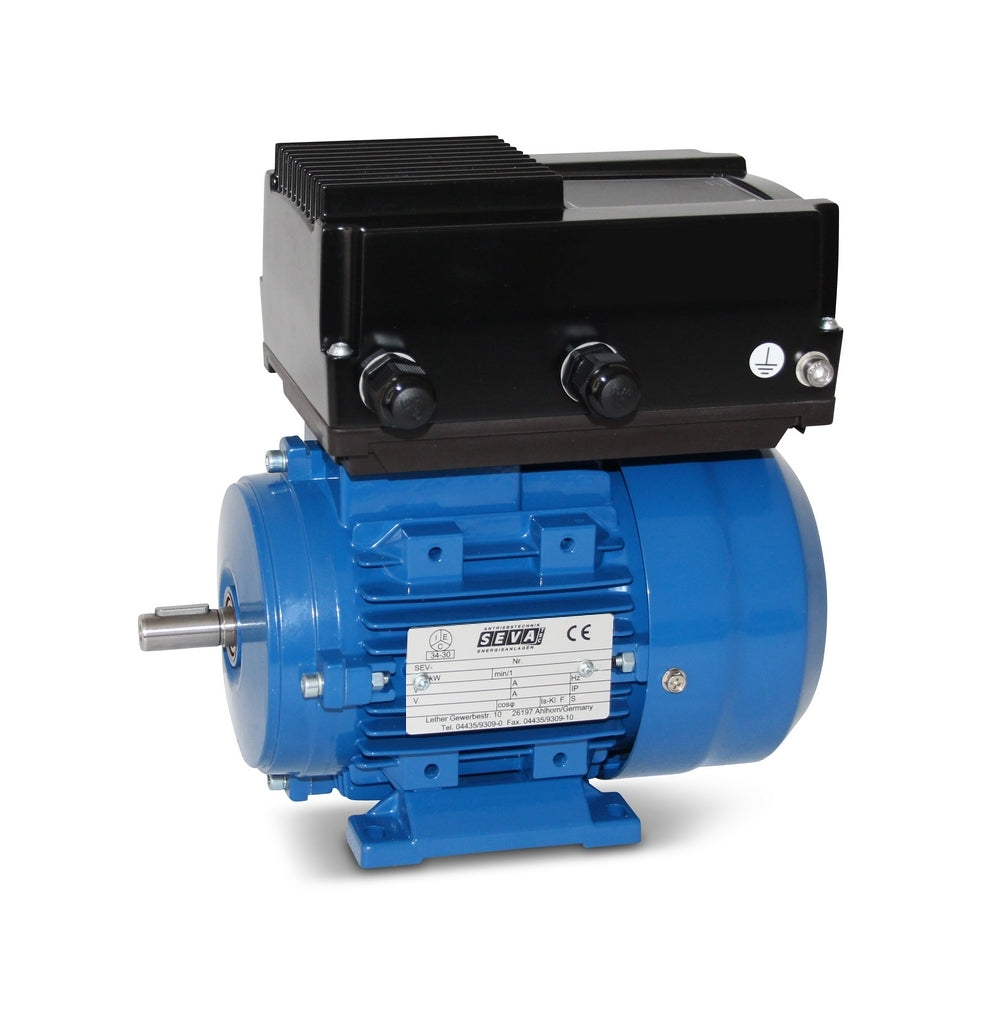

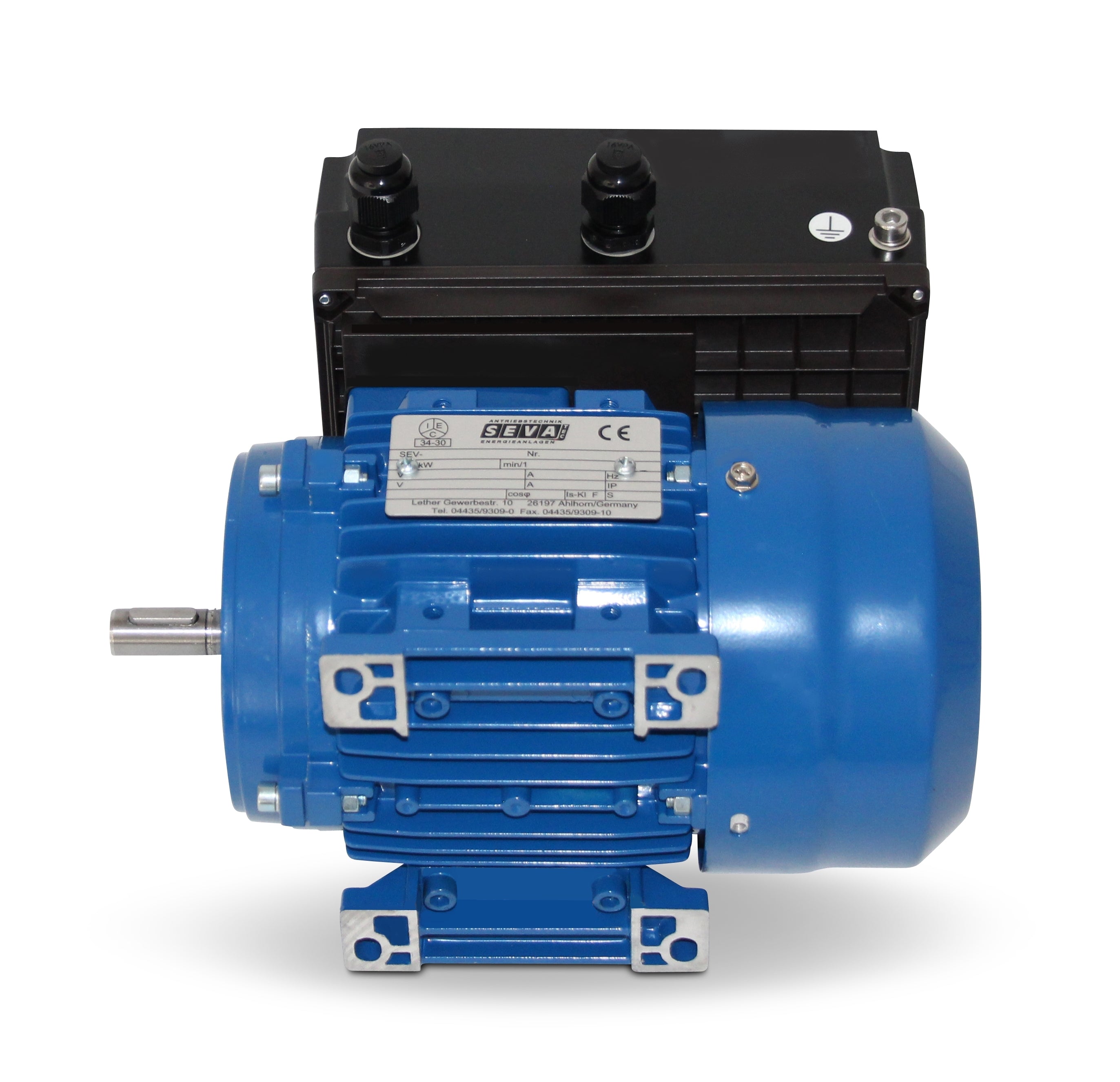

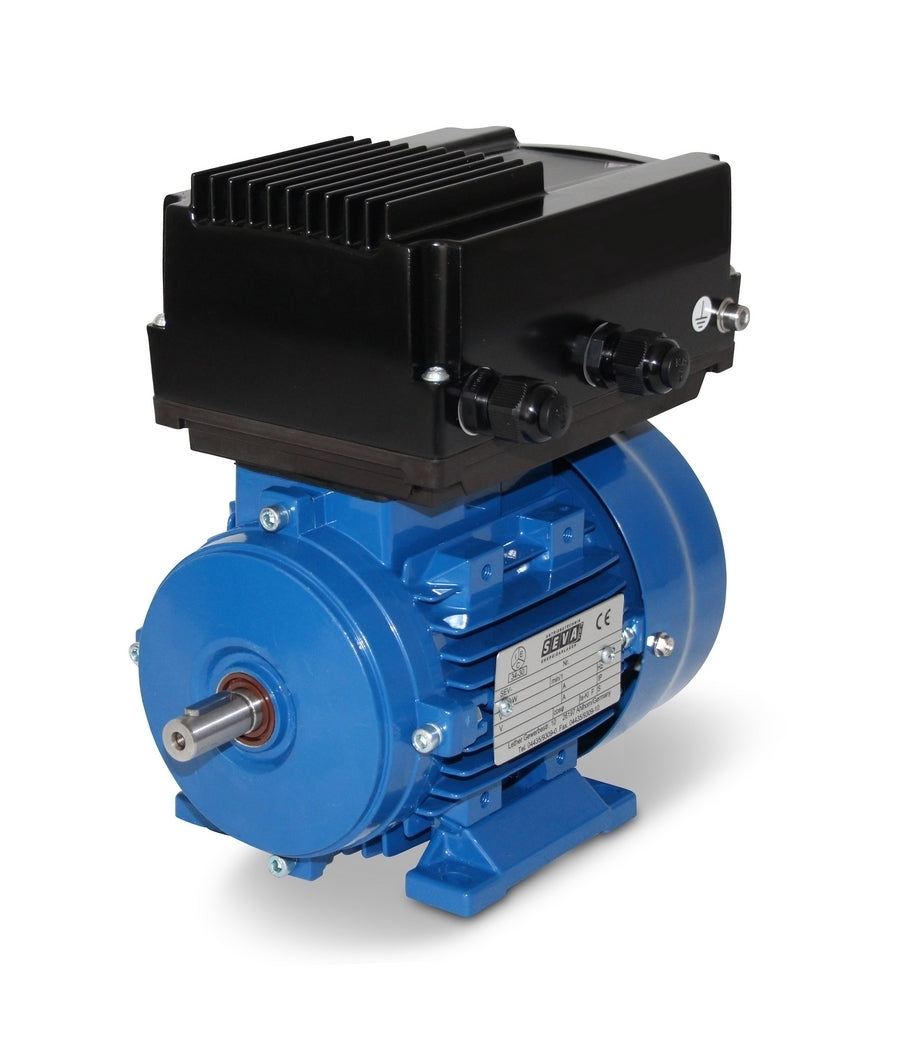

Frequency converter motor ED230-0018-alpha-4

Frequency converter, 1x 230V, EASYdrive alpha three-phase motor, 0.18 kW

three-phase motor
Power= 0.18 kW, Speed= 4 poles, Shaft= 11 x 30 mm, Total weight= 7.5 kg,
Design = B3, Input voltage = 1 x 230V- 50 Hz, 3 x 265V- 60 Hz (± 5% according to VDE 0530),
Frequency= 50/60 Hertz, Paint= RAL 5010 (Gentian Blue), Protection class= IP55,
Temperature sensor= 3 x PTC thermistors, terminal box position= top, housing= die-cast aluminum,
Insulation class= F (155°C), ball bearings= SKF, C&U, or equivalent, cooling= axial fan (plastic),

Frequency converter
Power= 0.25 kW, Size= alpha, Input voltage= 1 x 230V +10% (single-phase), Input frequency= 50/60 Hz,
Output frequency= 0- 400 Hz, EMC filter= C2, Protection class= IP65, Dimensions= 187mm x 126mm x 70mm,
Mains current (input) = 4.5 A. Ideal control range = 5- 60 Hz, below 30 Hz an external fan is used for cooling
needed.

Product information
The frequency converter offers the option of becoming “bus-capable” using fieldbus modules.
With Modbus (already included) and CANopen, the EASYdrive alpha offers compatibility with control environments
The required optional control variant must be specified when ordering.
The EASYdrive alpha drive controllers are CE, UL and CSA certified. The EASYdrive alpha operates without external
Filter measures EMC class C2 (for 1-phase mains supply).

! Possible variant selection !

Product selection
When selecting a frequency converter, it is important to note that there are two variants. Firstly, the device
in standard version and secondly the device with a membrane keyboard. In both versions a potentiometer
optional to order.

The “standard version of the frequency converter” shown is fully usable.
but requires a corresponding control unit for control.
To do this, you must order one of the following options:
- External control unit (MMI with cable and connector)
- Interface cable for PC programming
- Bluetooth adapter

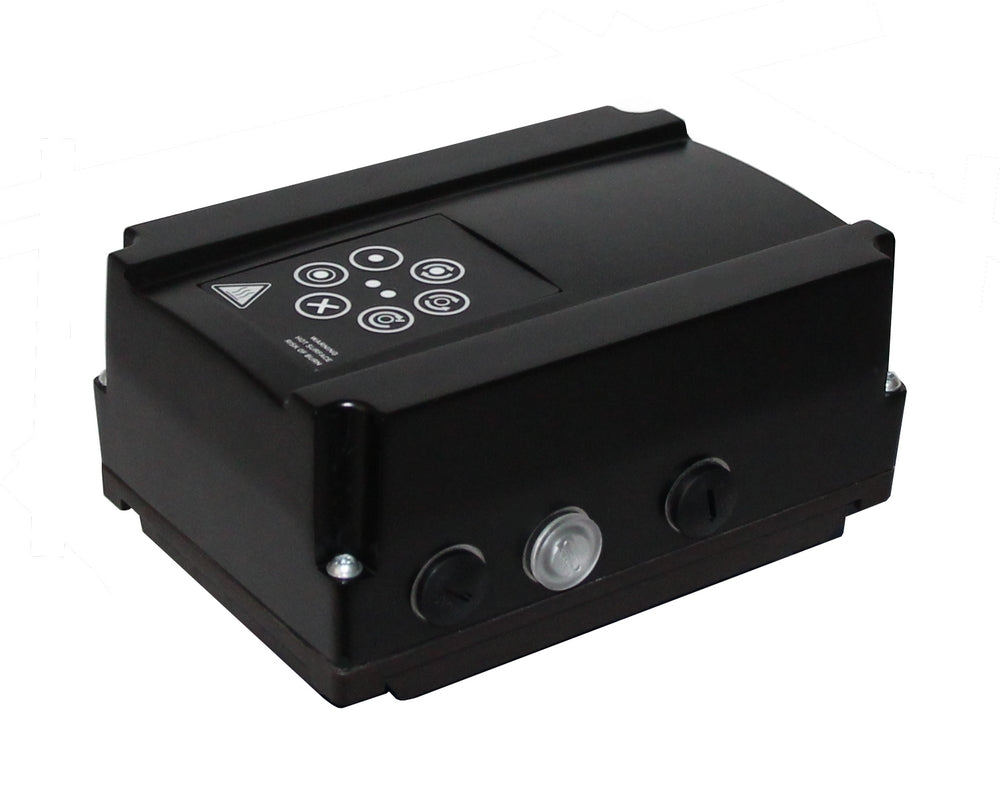

The variant "Frequency converter with membrane keyboard" offers the possibility of controlling the FU directly,
such as start-stop, left-right-run etc.
For parameterization, one of the following options must also be ordered:
- External control unit (MMI with cable and connector)
- Interface cable for PC programming
- Bluetooth adapter

programming
The three-phase motor with integrated EASYdrive alpha frequency converter is delivered for safety reasons
not programmed! Should further parameterization be necessary, we offer this adjustment work
at an hourly rate of 86,-€/ net.

Important instructions
This drive is a custom-made product. Cancellation or revocation of the purchase is not possible!
All product photos are non-binding examples! Technical changes reserved.
