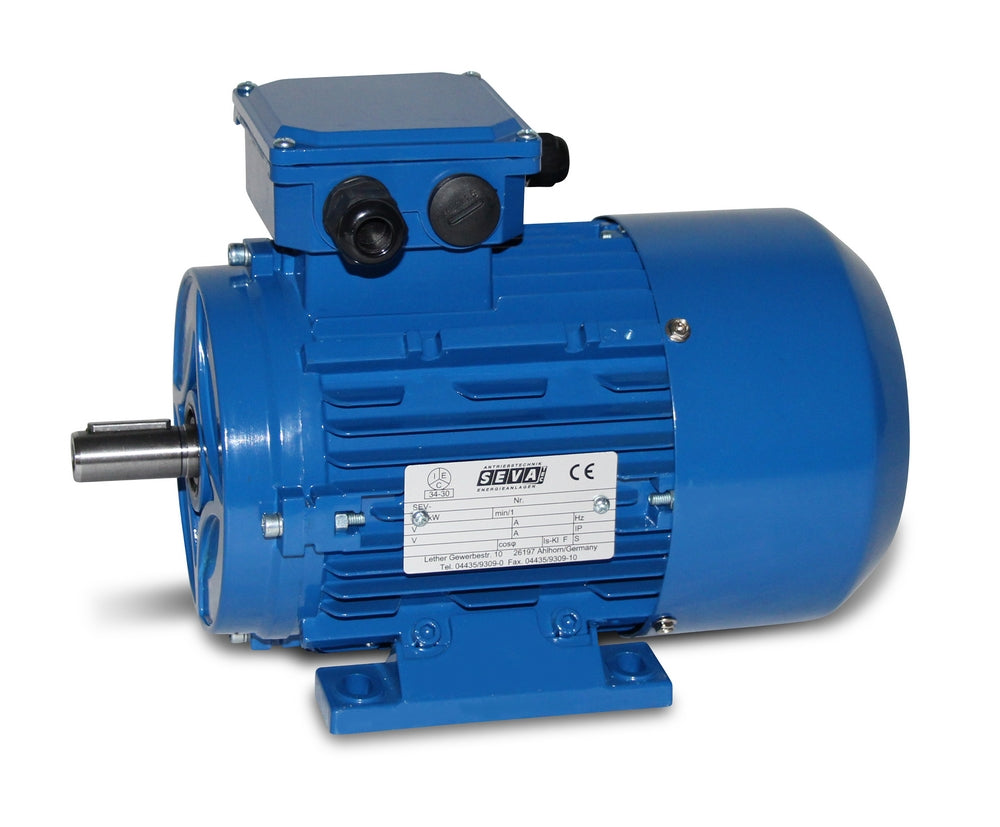

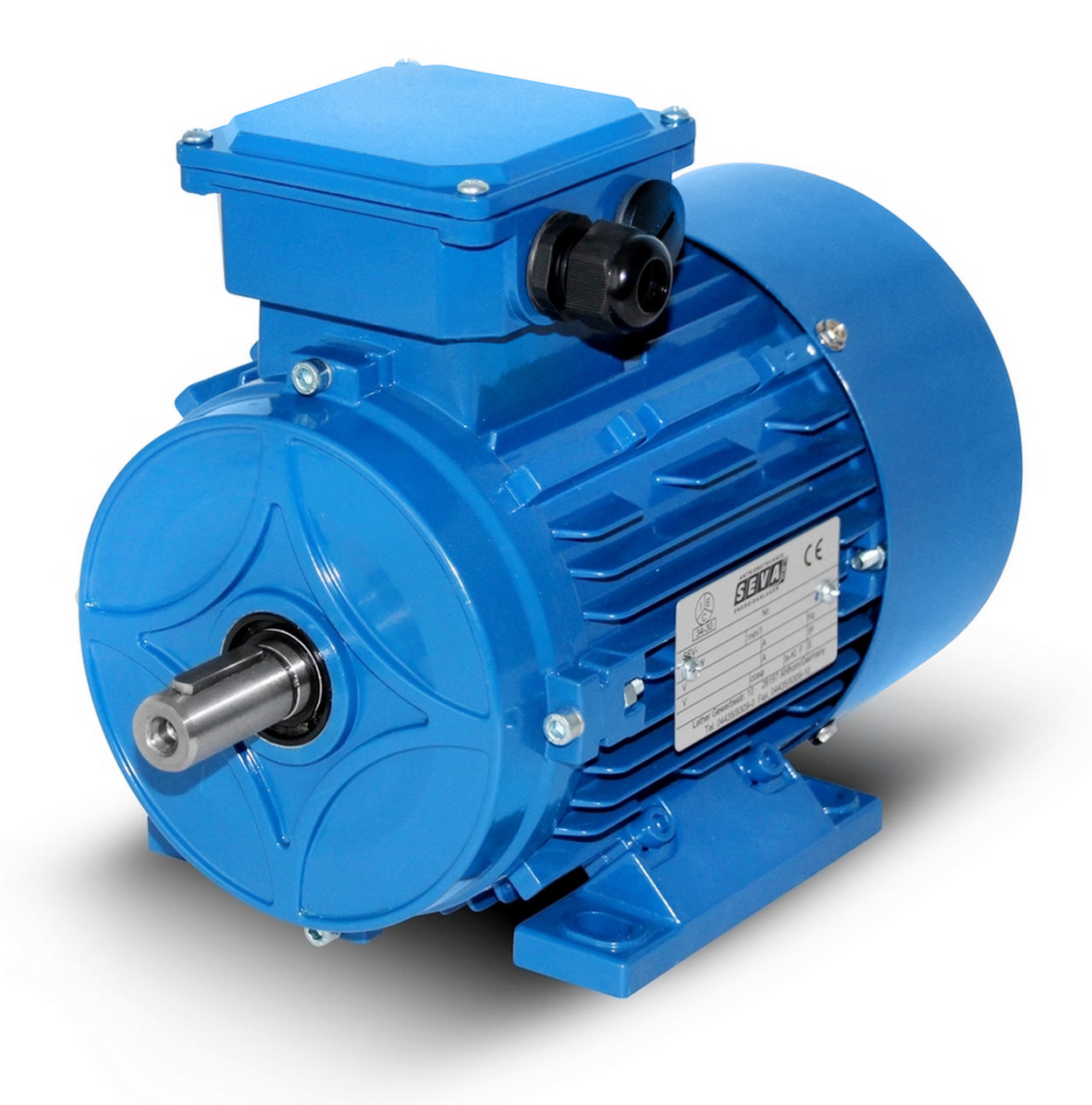

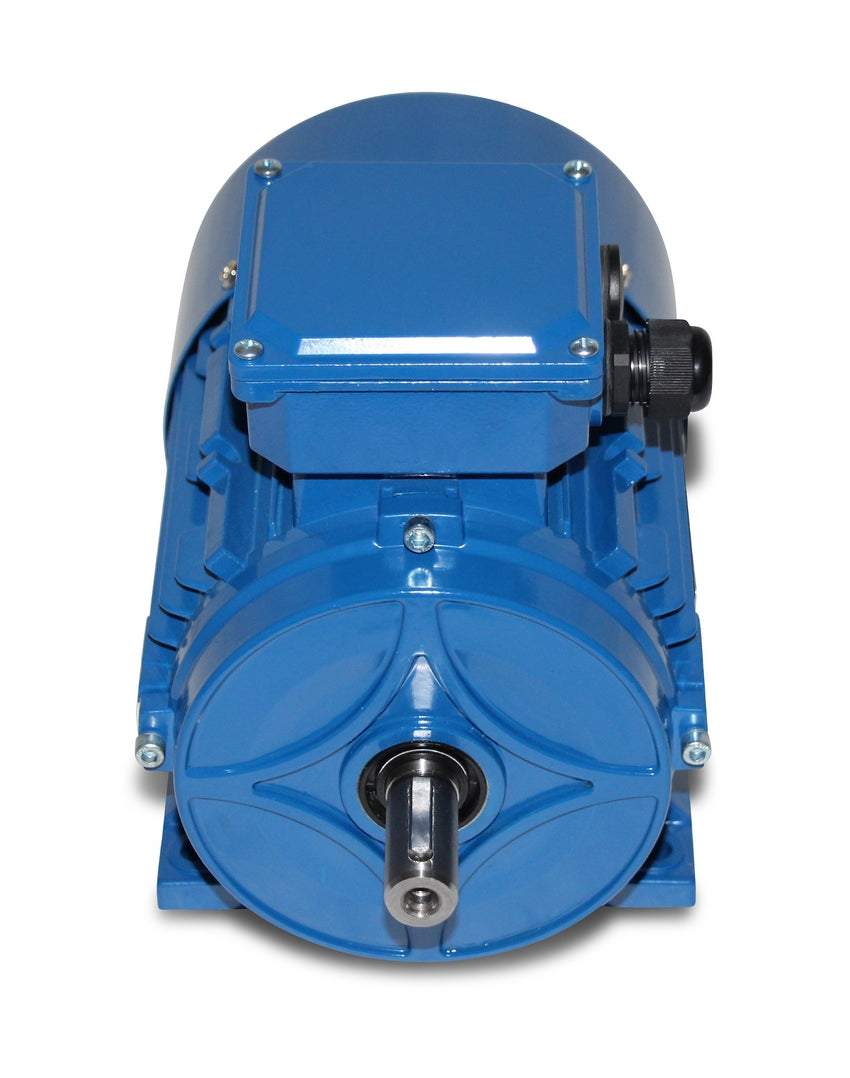

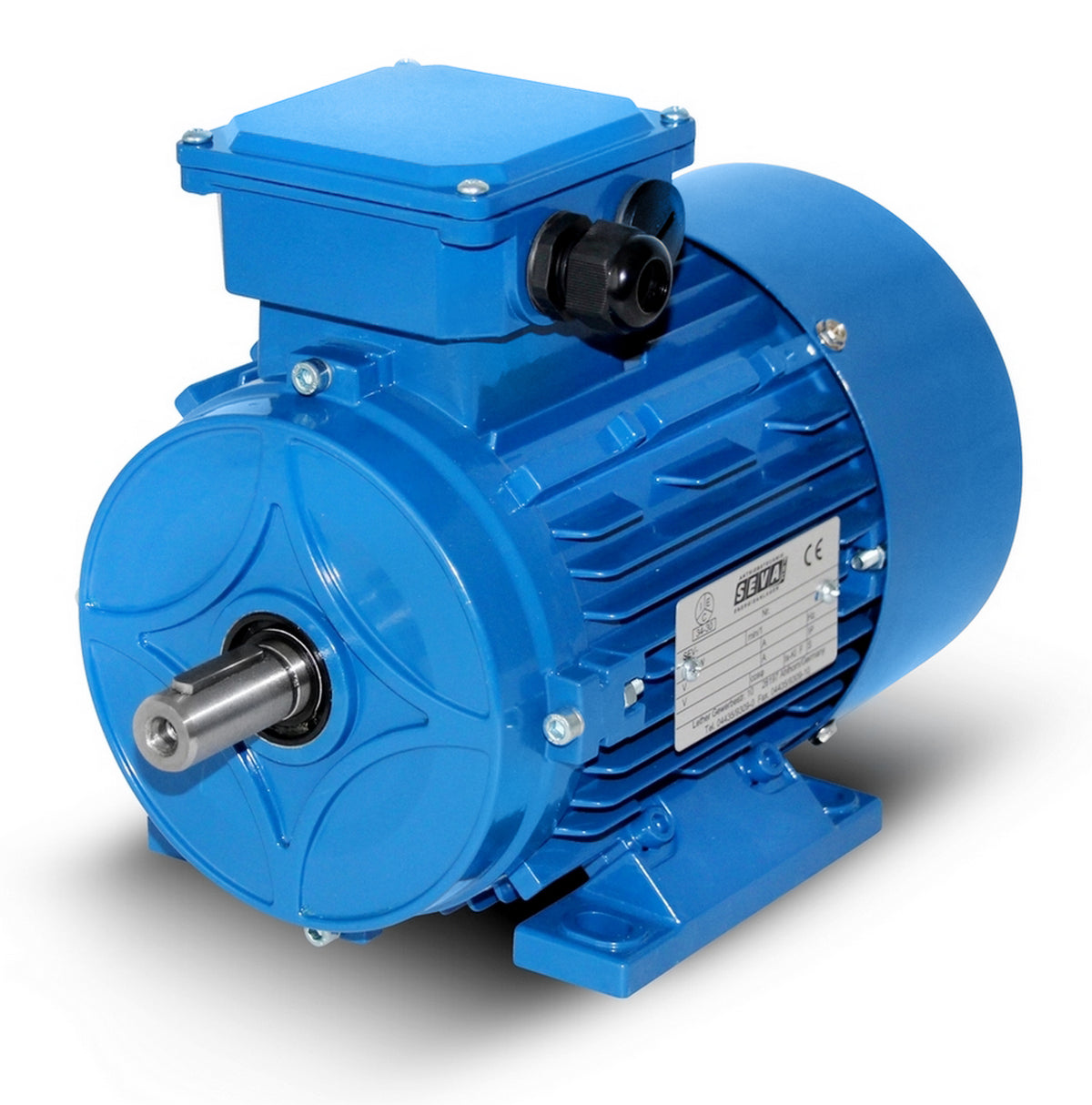

Three-phase motor MX2 801 0.55 kW- 4-pole-B3

Three-phase motor, power= 0.55 kW, speed= 4 poles,

Design= B3, Shaft= 19 x 40 mm, Voltage= 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),

Frequency = 50/60 Hertz, Efficiency class = IE2, Efficiency = 77.1%. Finish = RAL 5010 (Gentian Blue).

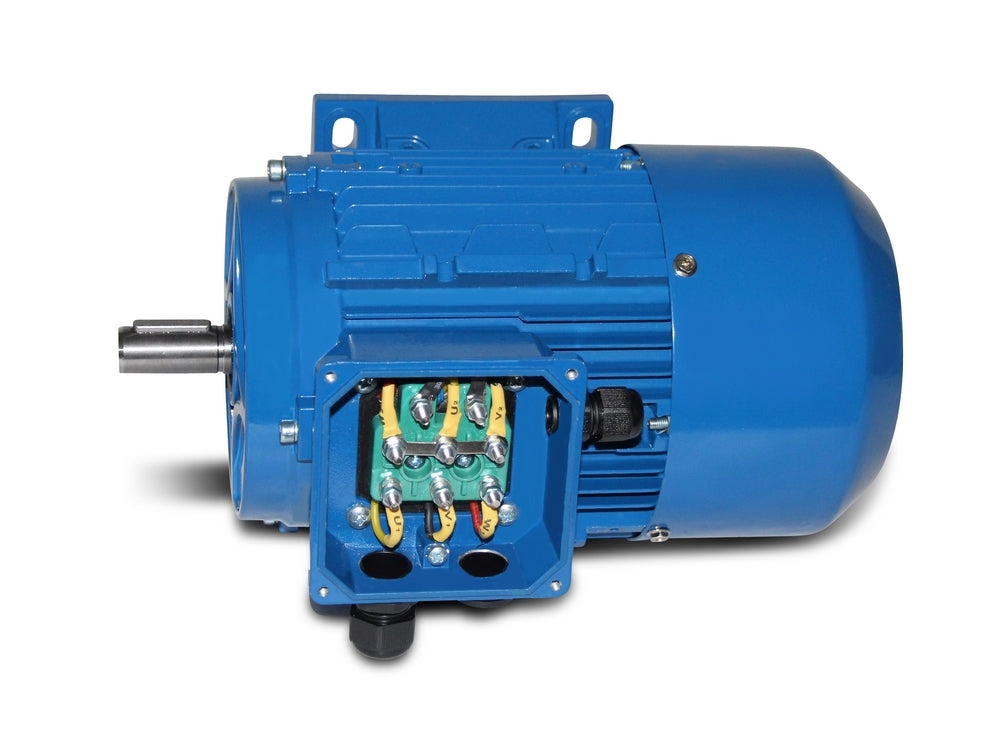

Protection class= IP55, Temperature sensor= 3 x PTC thermistors, Weight= 8.8 kg, Terminal box position= top (rotatable),

Cable glands= 1 x M20, 1 x M16, Housing= die-cast aluminum, Insulation class= F (155°C),

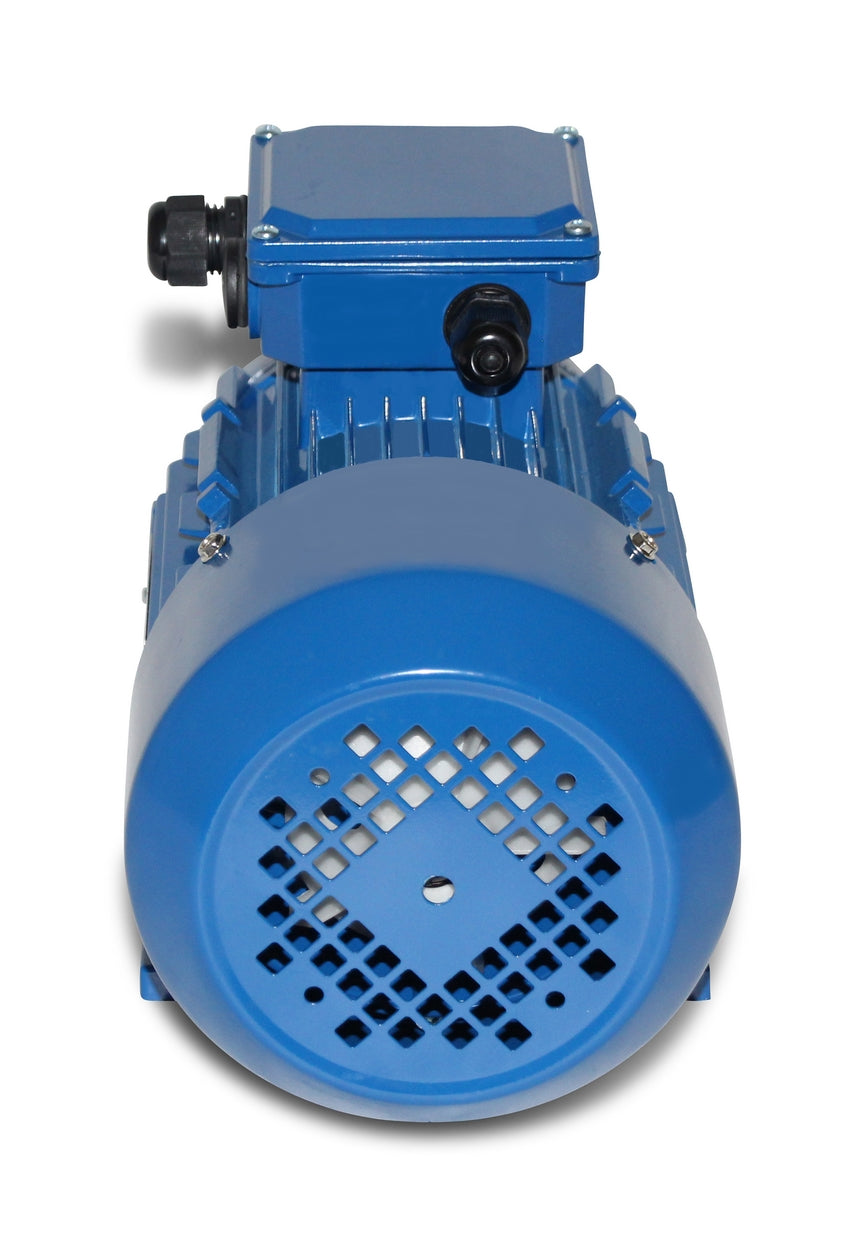

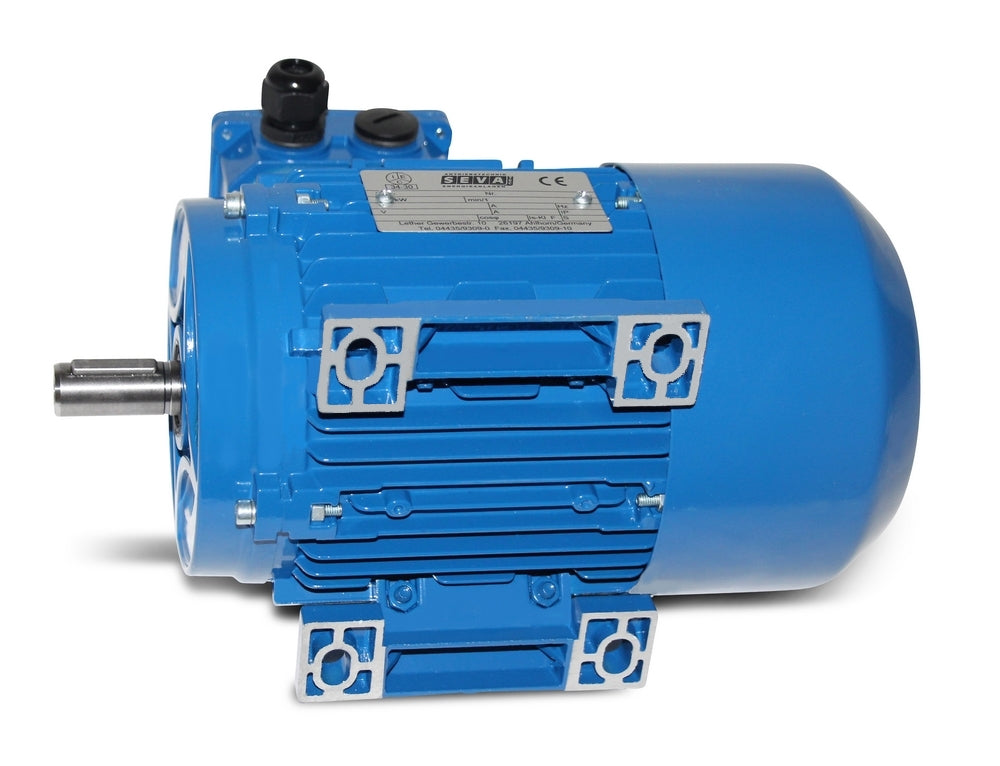

Ball bearings= SKF, C&U, or equivalent, cooling= axial fan (plastic), motor feet= screw-on or unscrew-on.

The electric motor is suitable for frequency converter use and for both directions of rotation.

According to VDE 0105 and IEC 364, all work on the electric drive must be carried out by qualified

To be carried out by qualified personnel. For modifications or special designs, please send an inquiry.

All product photos are non-binding examples! Technical changes reserved.
