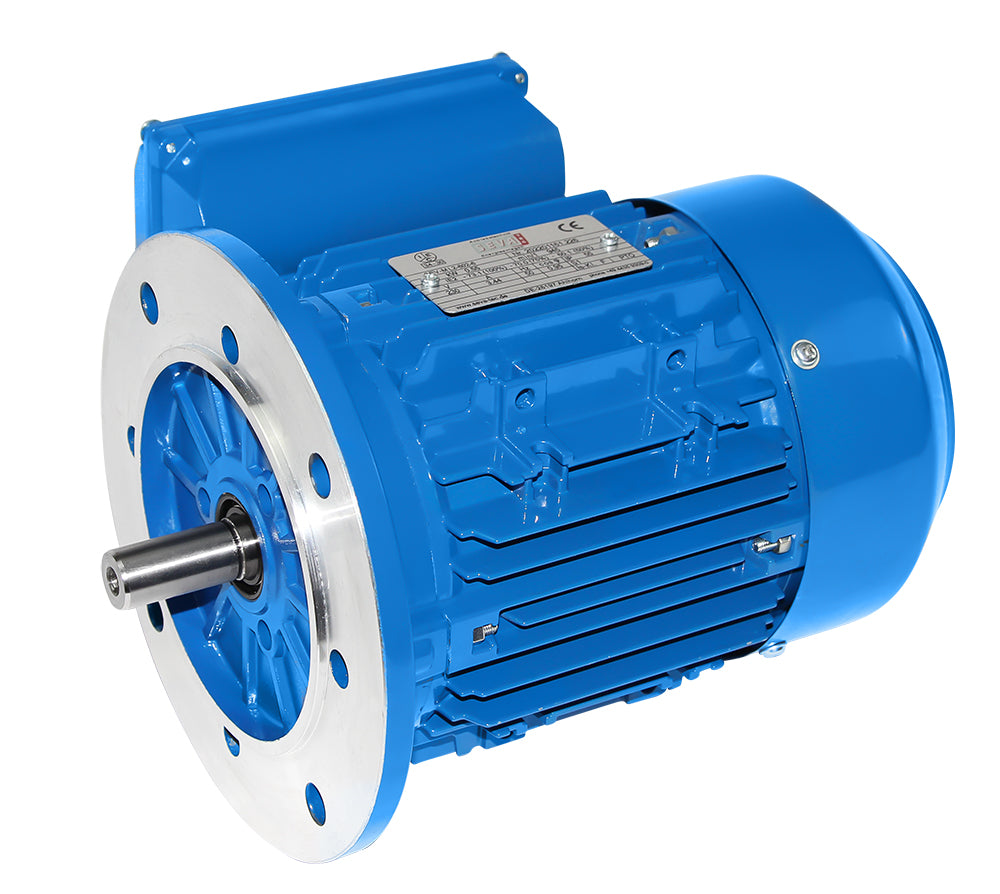

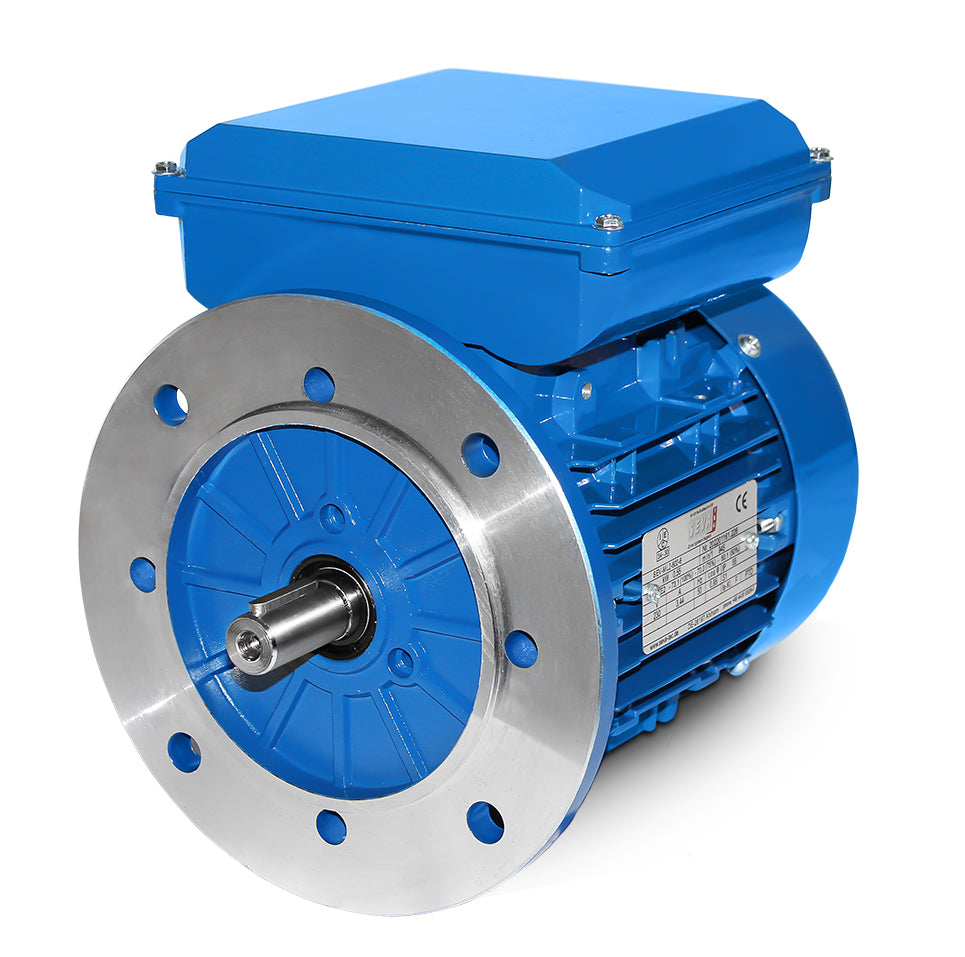

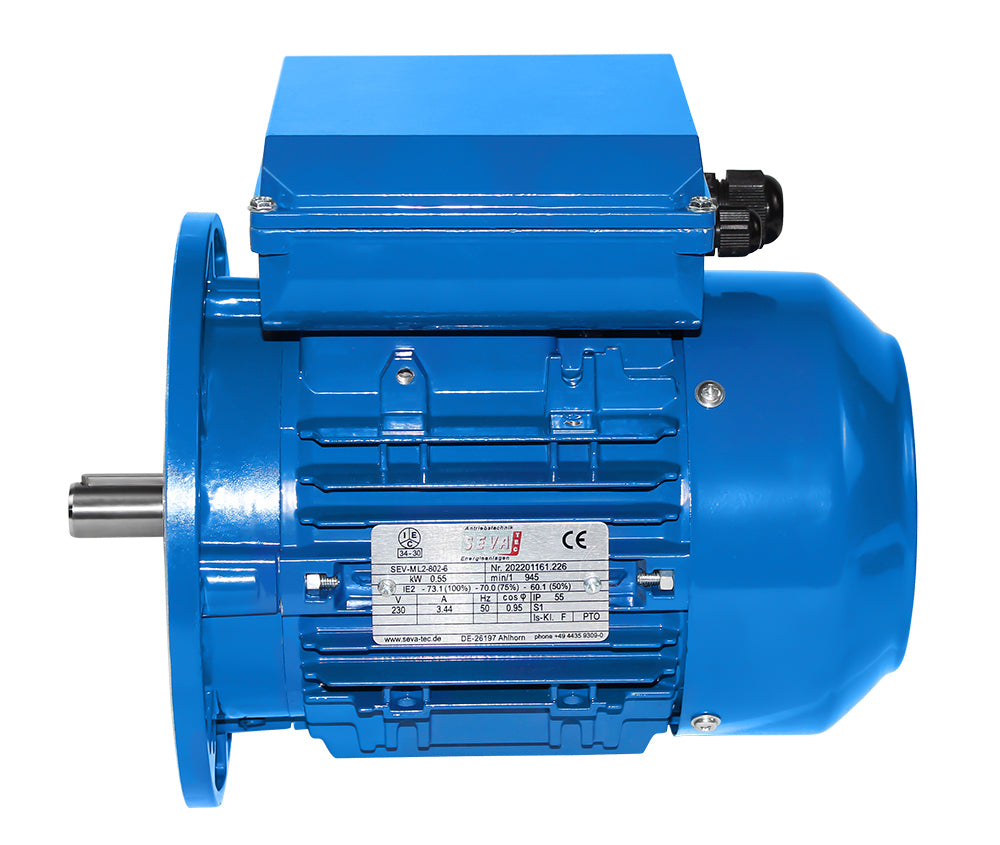

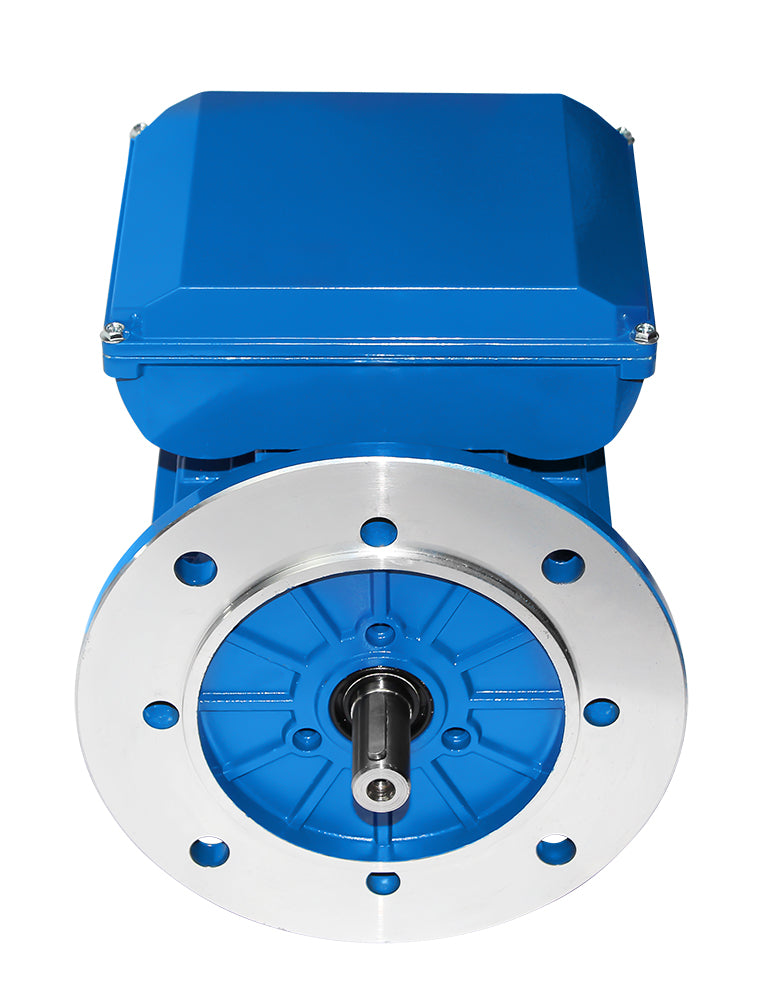

AC motor ML2 90S-4, 1.1 kW, 4-pole, B5

AC motor, single-phase motor with operating and starting capacitor

Power= 1.1 kW, Speed= 4 pole, Voltage= 1 x 230 V (± 5% according to VDE 0530), Design= B5,

Weight approx. 14.7 kg, shaft = 24 x 50 mm, frequency = 50 Hertz, protection class = IP55, operating mode = S1- 100% ED,

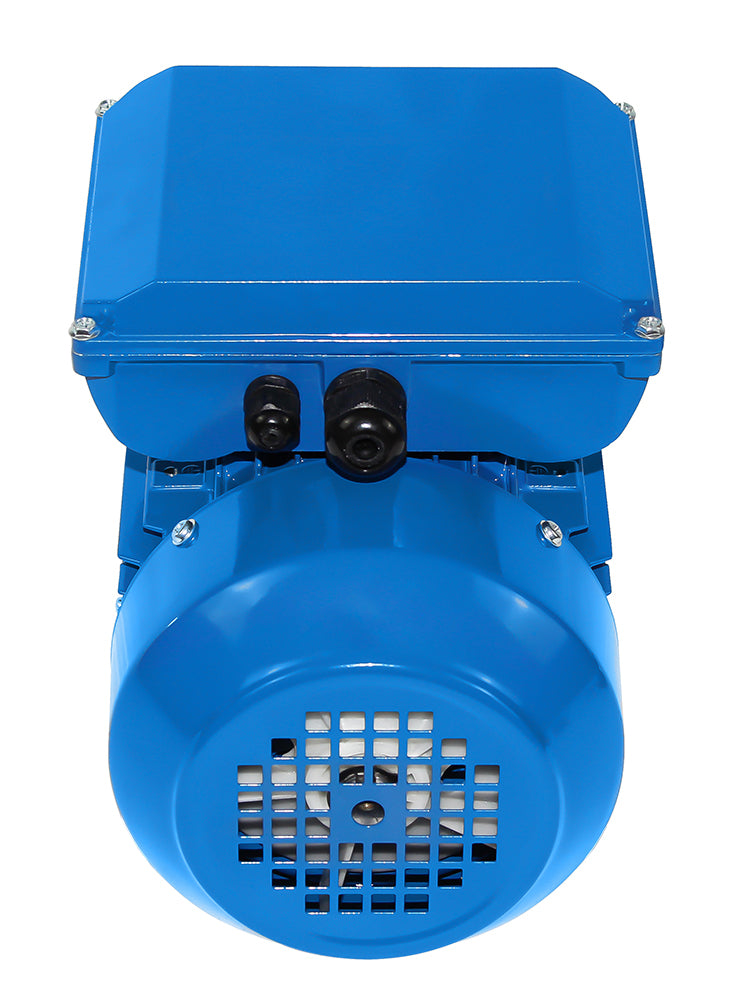

Temperature sensor = 1 x PTO thermal sensor, Cooling = Axial fan (plastic). Insulation class = F (155°C).

Efficiency class= IE2 , efficiency= 81.4%, terminal box= aluminum, terminal box position= top,

Housing= die-cast aluminum, ball bearings= SKF, C&U, or equivalent.

AC motors are suitable for both directions of rotation.

Optional:

On/off switch with reversing switch for left/right rotation, undervoltage release,

Collar plug= 1 x 230 V, switching capacity= 16 A, ambient temperature= -5°C to +40°C,

Cable between motor and switch housing = approx. 90 cm.

Generally:

Thanks to the starting and running capacitor, the 230V motor has a stronger starting torque.

The starting capacitor is switched off by a starting relay when the speed is reached.

Speed ​​control via frequency converters or similar therefore leads to interference and is not permitted.

All product photos are non-binding examples! Technical changes reserved.
