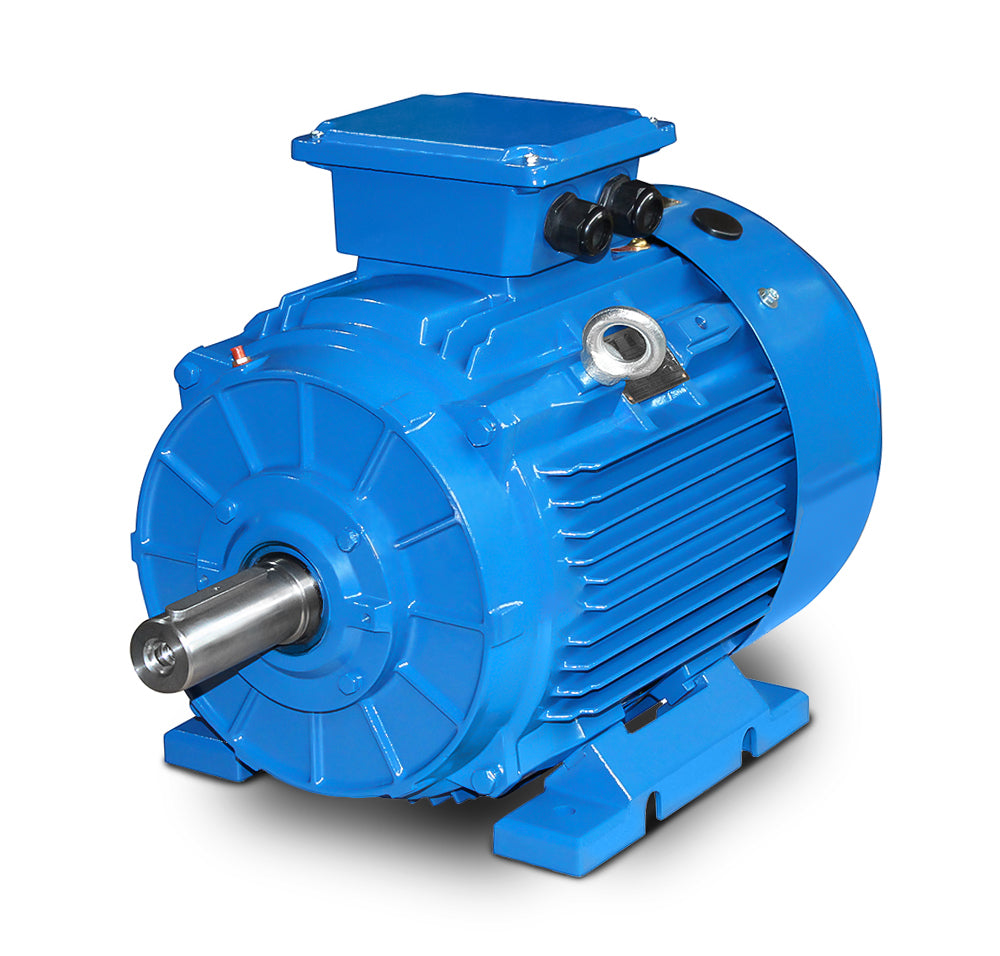

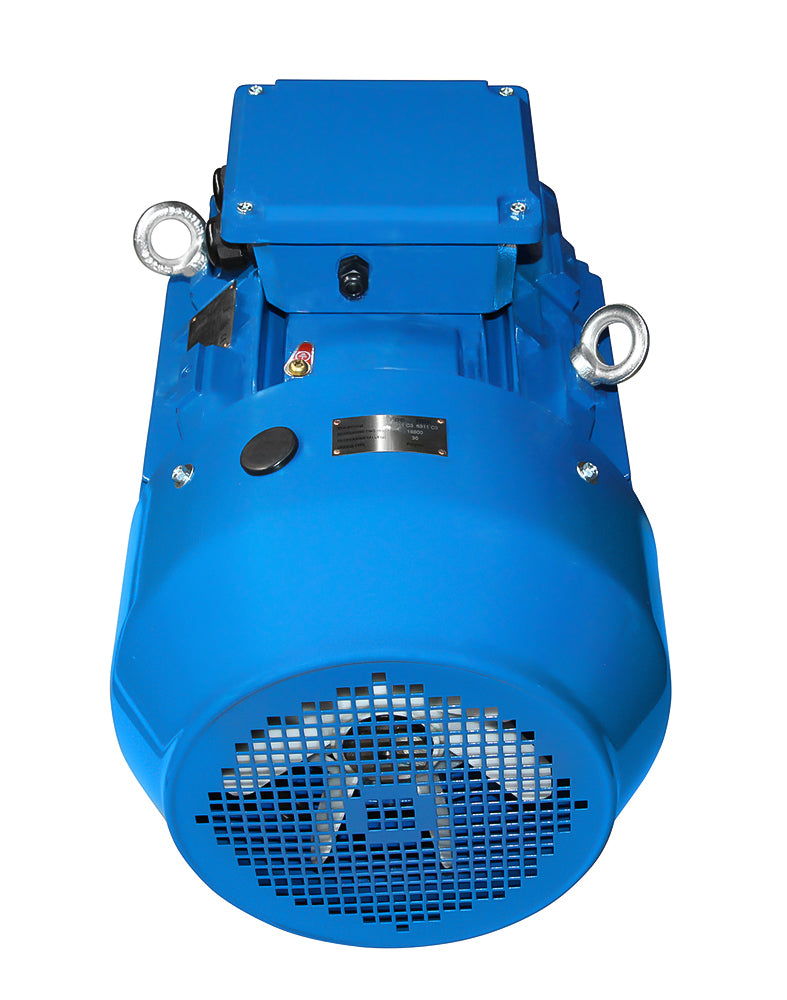

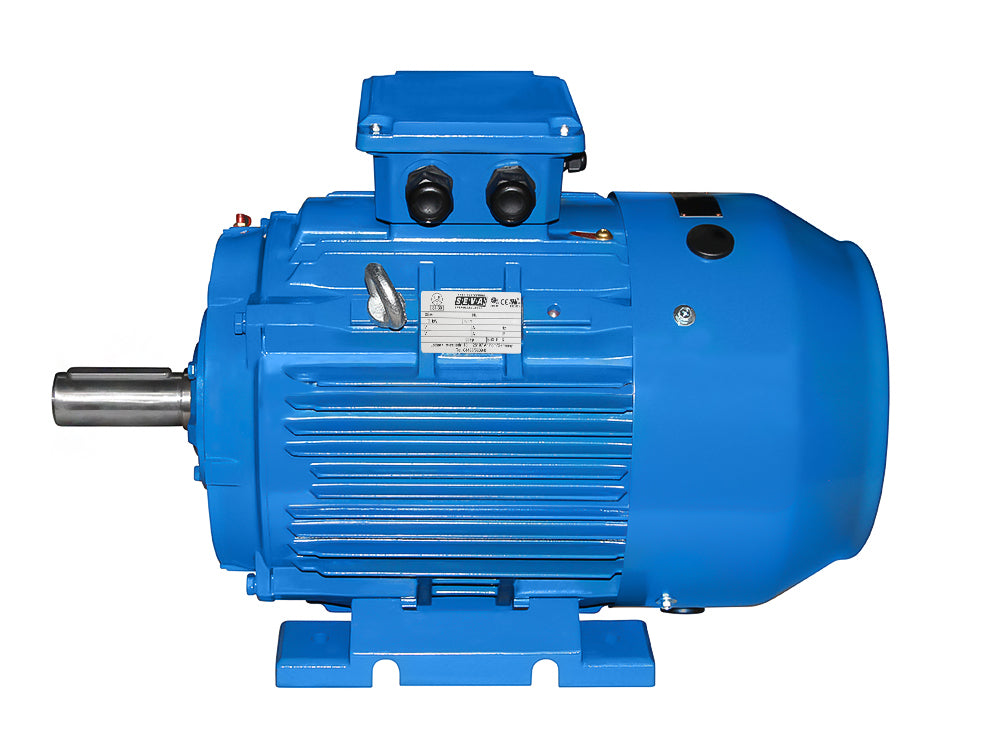

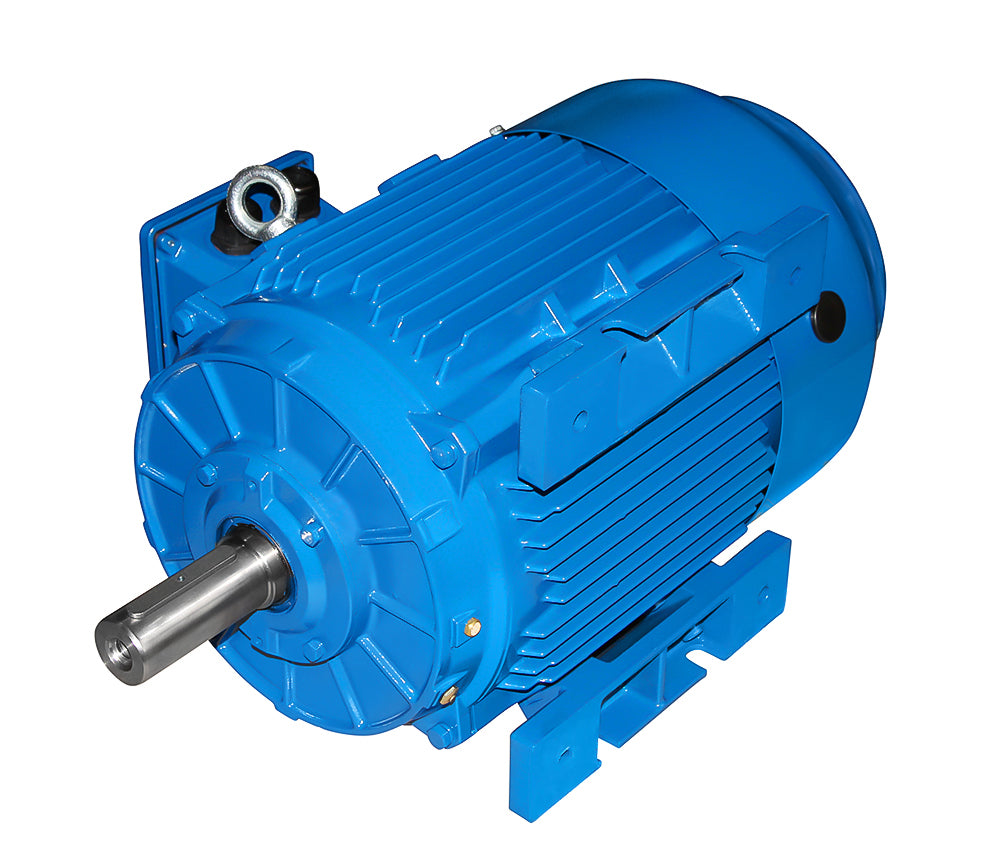

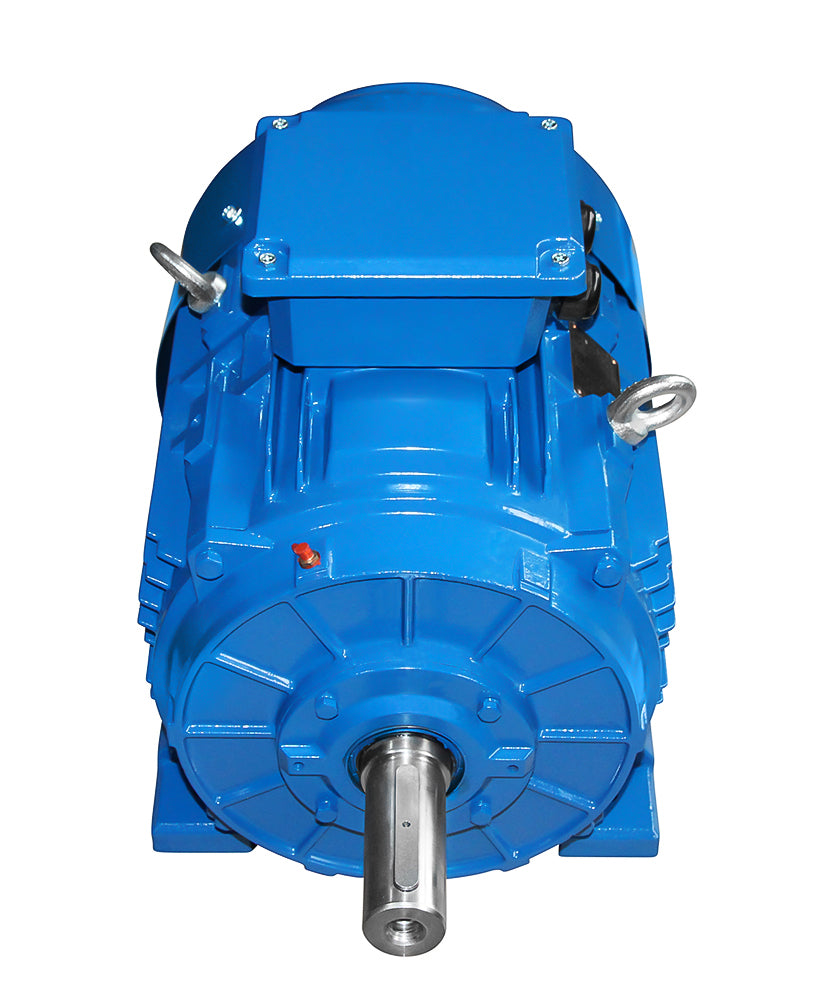

Three-phase motor IE3 180L-4, 22 kW, 4-pole, B3

Electric motor, power= 22 kW, speed= 1500 rpm, design= B3

Shaft= 48 x 110 mm, voltage= 3 x 400/690 V-50 Hz, 3 x 480/830 V-60 Hz (± 5% according to VDE 0530), frequency= 50/60 Hertz.

Efficiency class= IE3, efficiency= 93.0%, paint finish= RAL 5010 (gentian blue), protection class= IP55, temperature sensor= 3 x PTC thermistors,

Operating mode= S1- 100% ED, Terminal box position= top, Housing= grey cast iron, Insulation class= F (155°C),

Ball bearings= SKF or equivalent, cooling= axial fan (plastic), motor feet= screwable (if available).

The motor mount is designed for clutch operation. For belt drive, we recommend reinforced cylindrical roller bearings.

The electric motor is suitable for frequency converter use and for both directions of rotation.

According to VDE 0105 and IEC 364, all work on the electric drive must be carried out by qualified

To be carried out by qualified personnel. For modifications or special designs, please send an inquiry.

All product photos are non-binding examples! Technical changes reserved.
