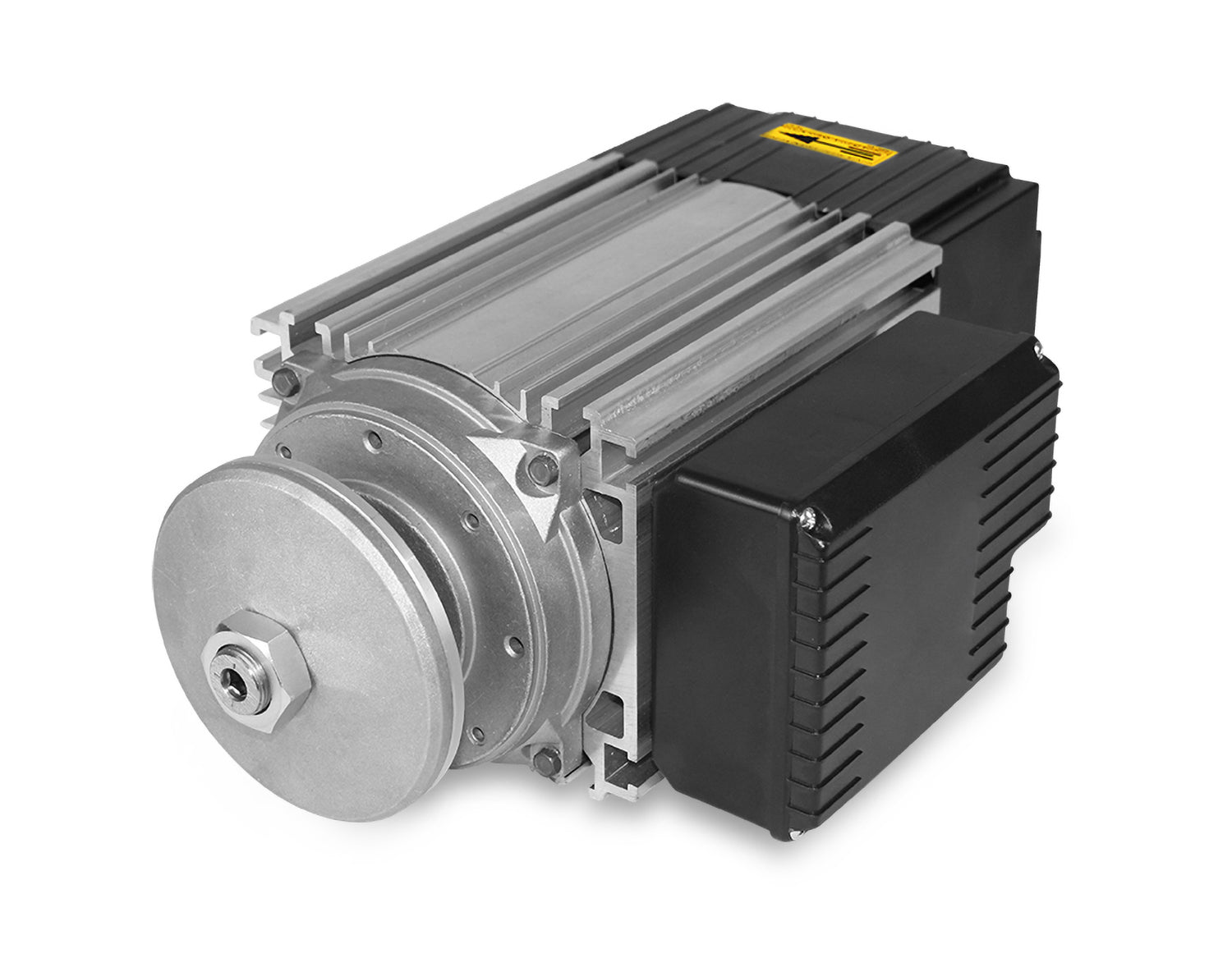

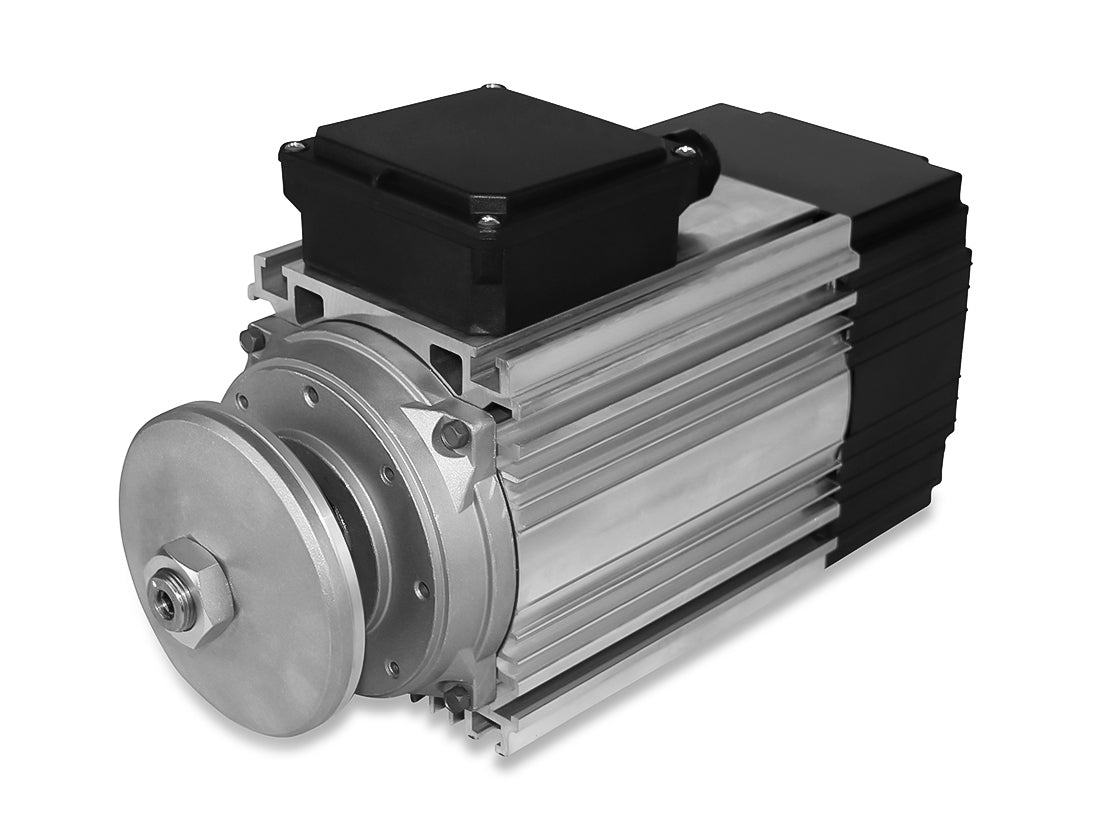

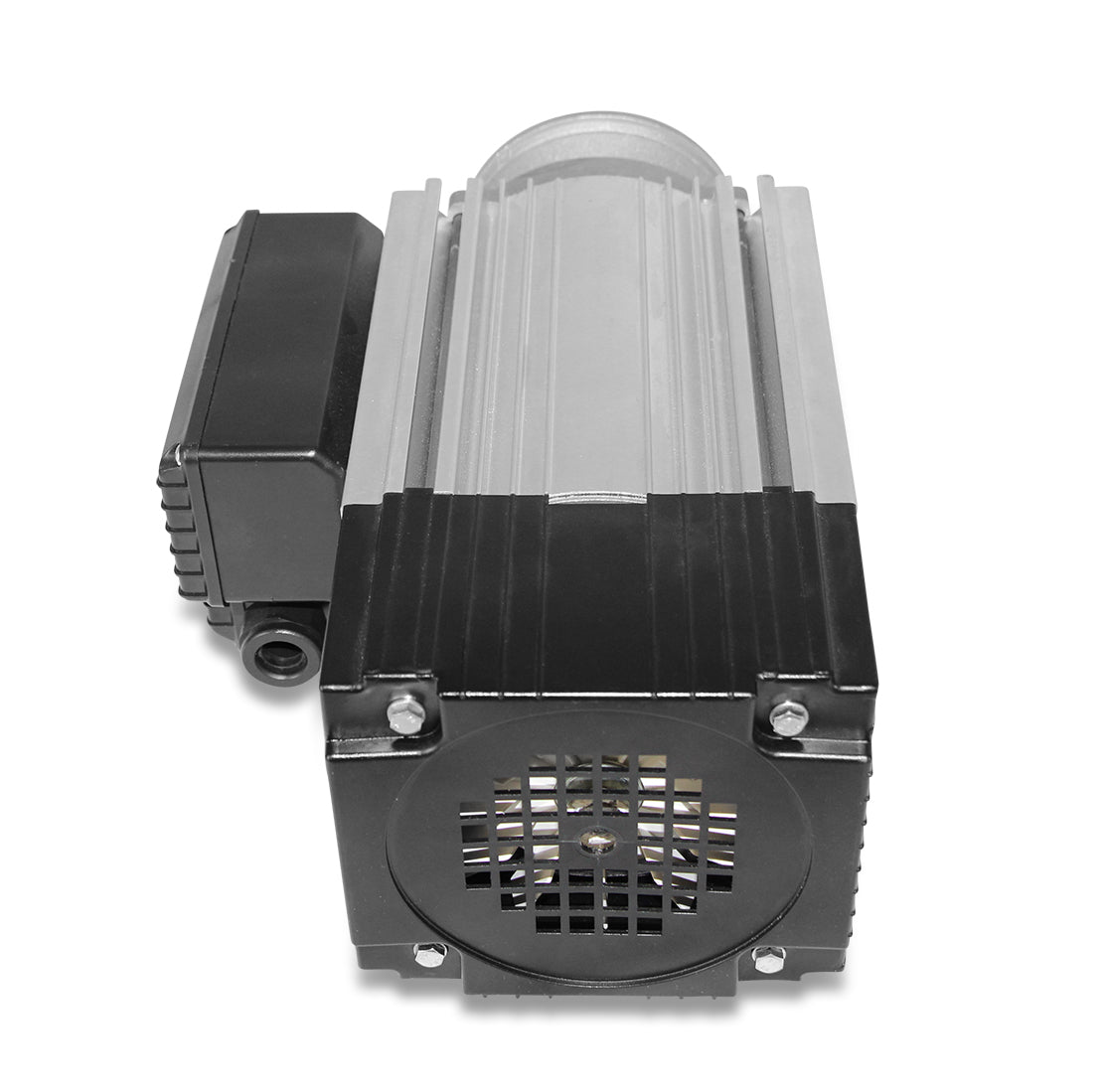

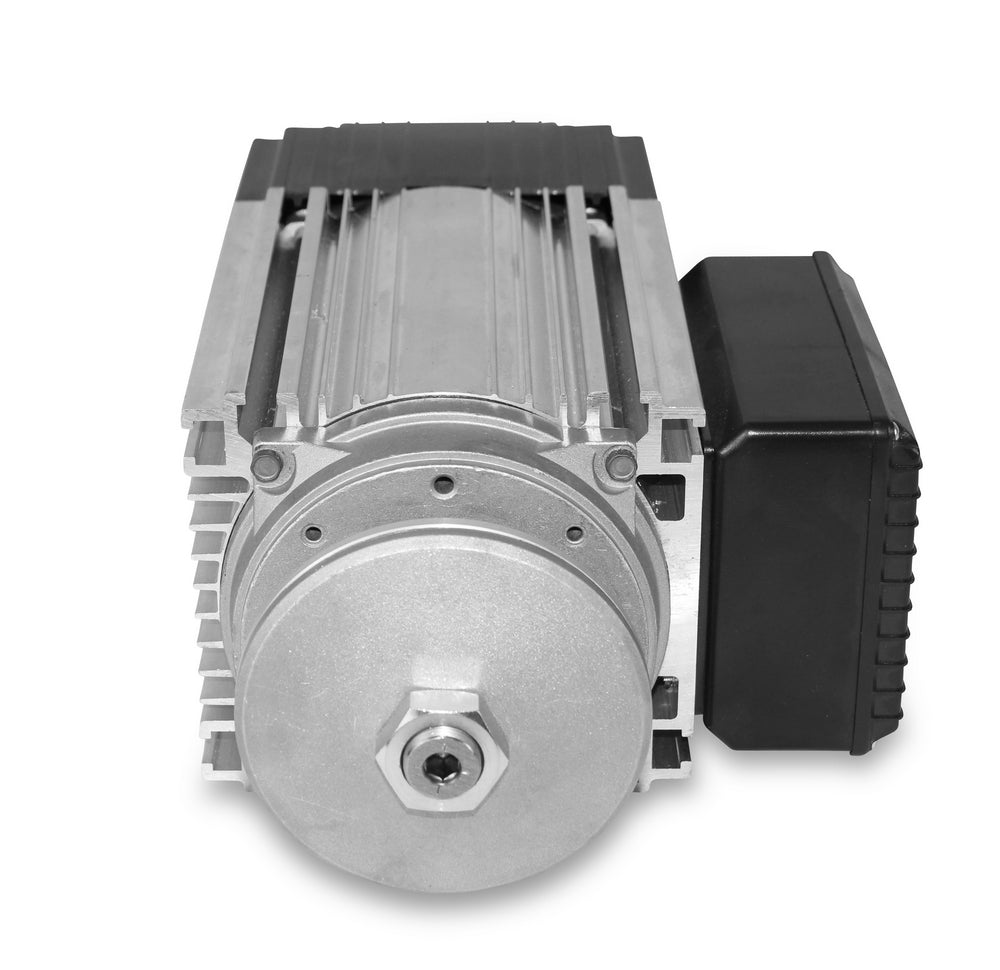

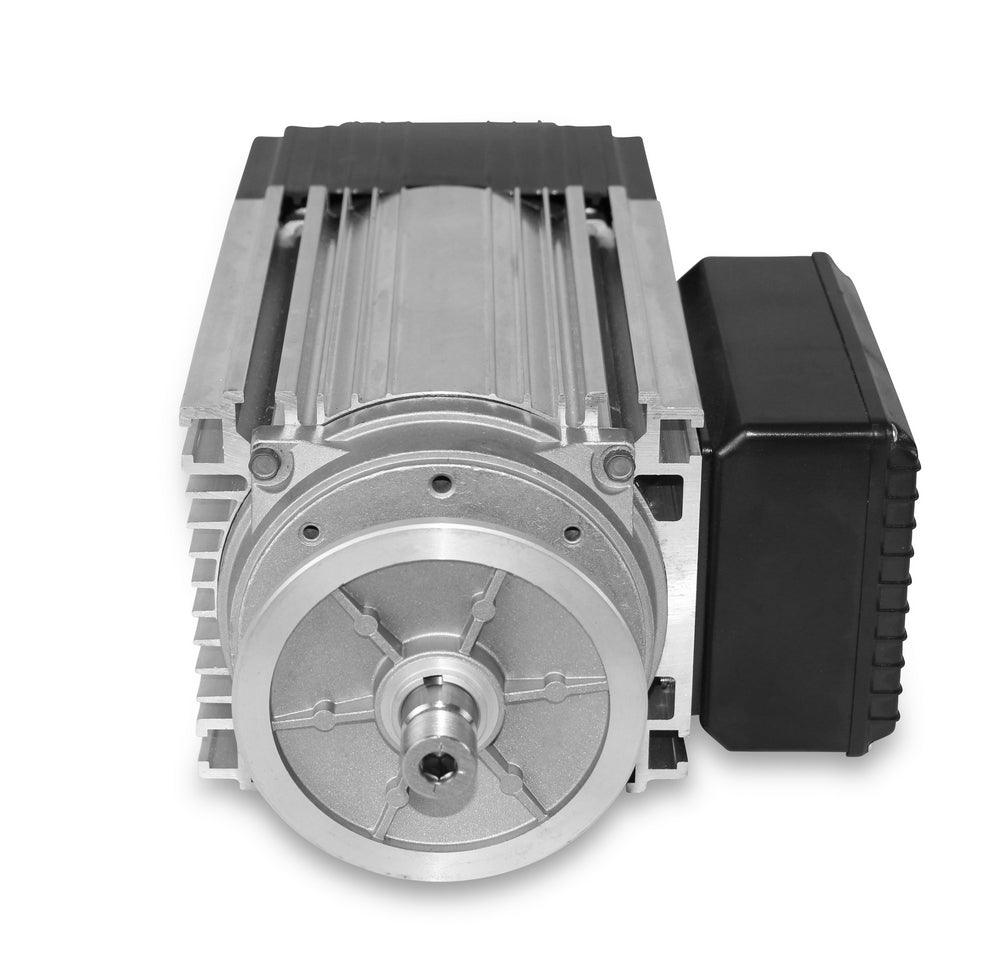

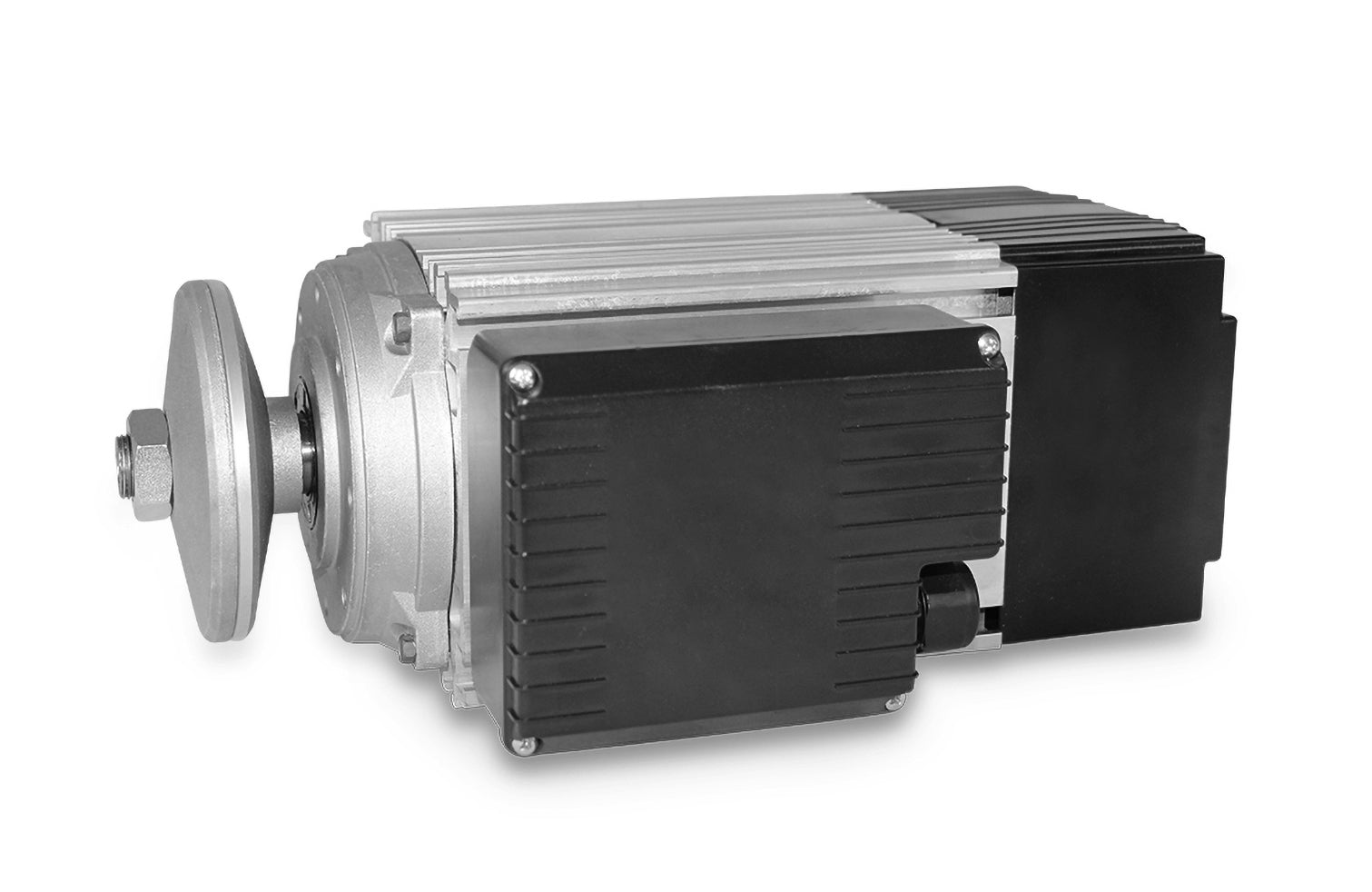

Flat motor E65SB2- 1.8 kW-B14 rotation direction right

Flat motor, 1.8 kW, 2800 rpm, 1 x 230 volts,

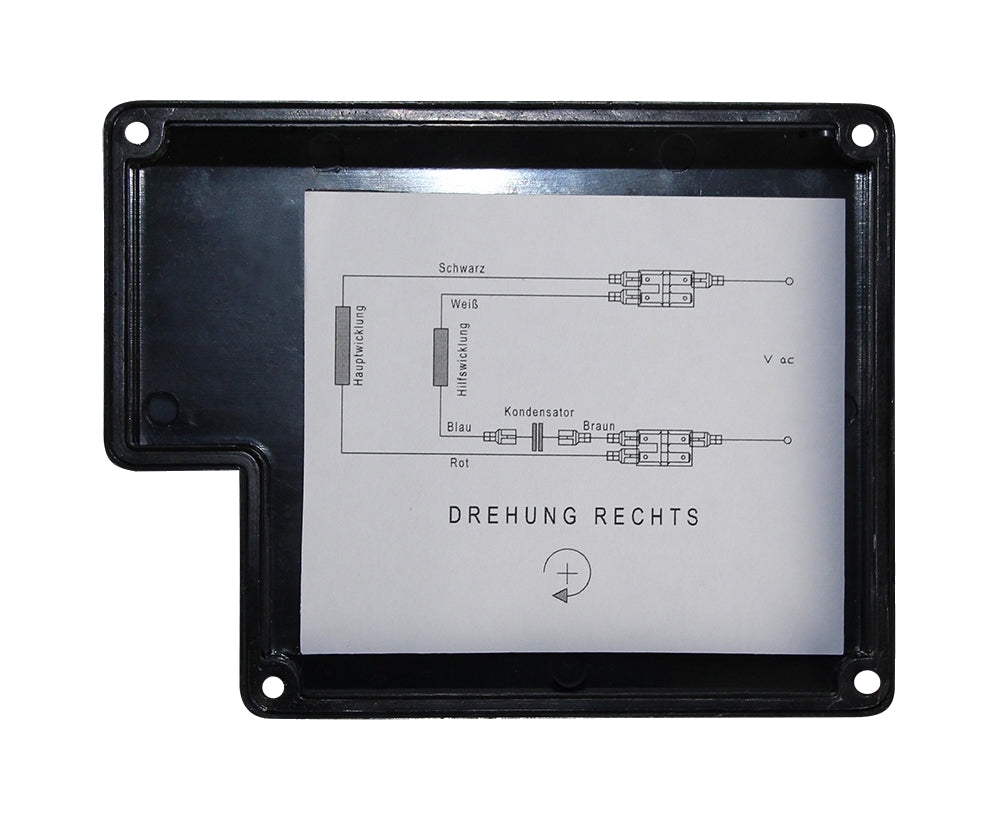

Right-hand rotation, left-hand thread, clamping flange with 25.4 mm mount, operating mode S6-40%

Design= B14, Voltage= 1 x 230 V-50 Hz, Protection class= IP55, Weight= 13.2 kg, Terminal box position= right,

According to VDE 0105 and IEC 364, all work on the electric drive must be carried out by qualified

carried out by qualified personnel.

All product photos are non-binding examples! Technical changes reserved.

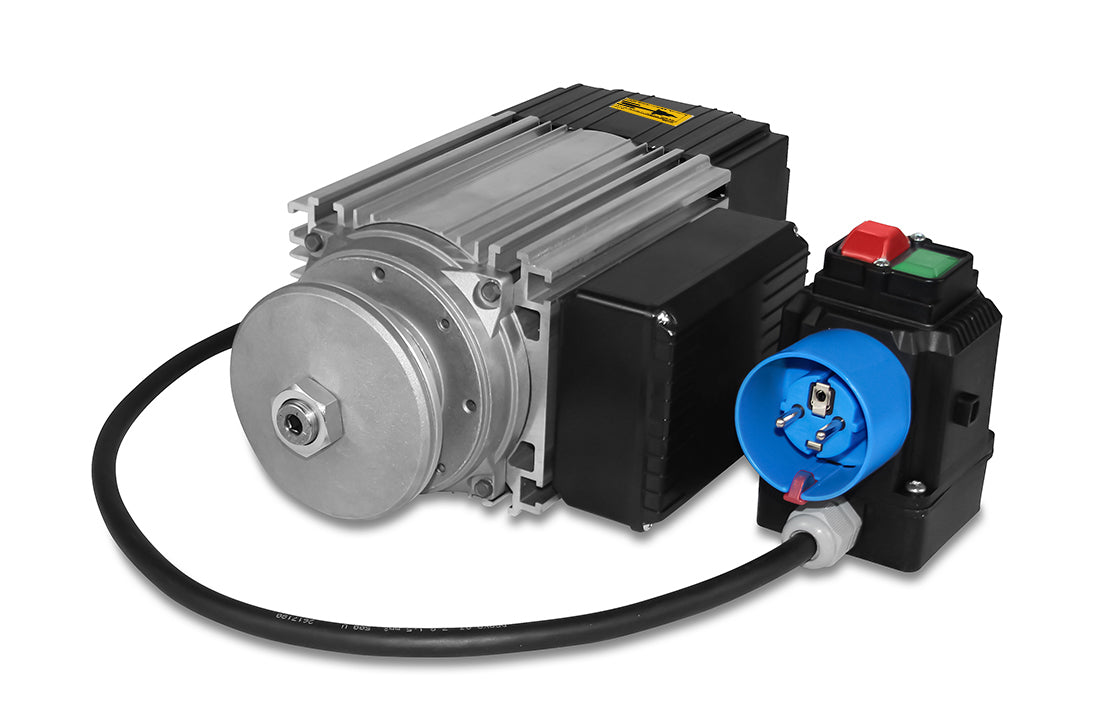

Available with or without motor switch with electronic brake (please select design).
