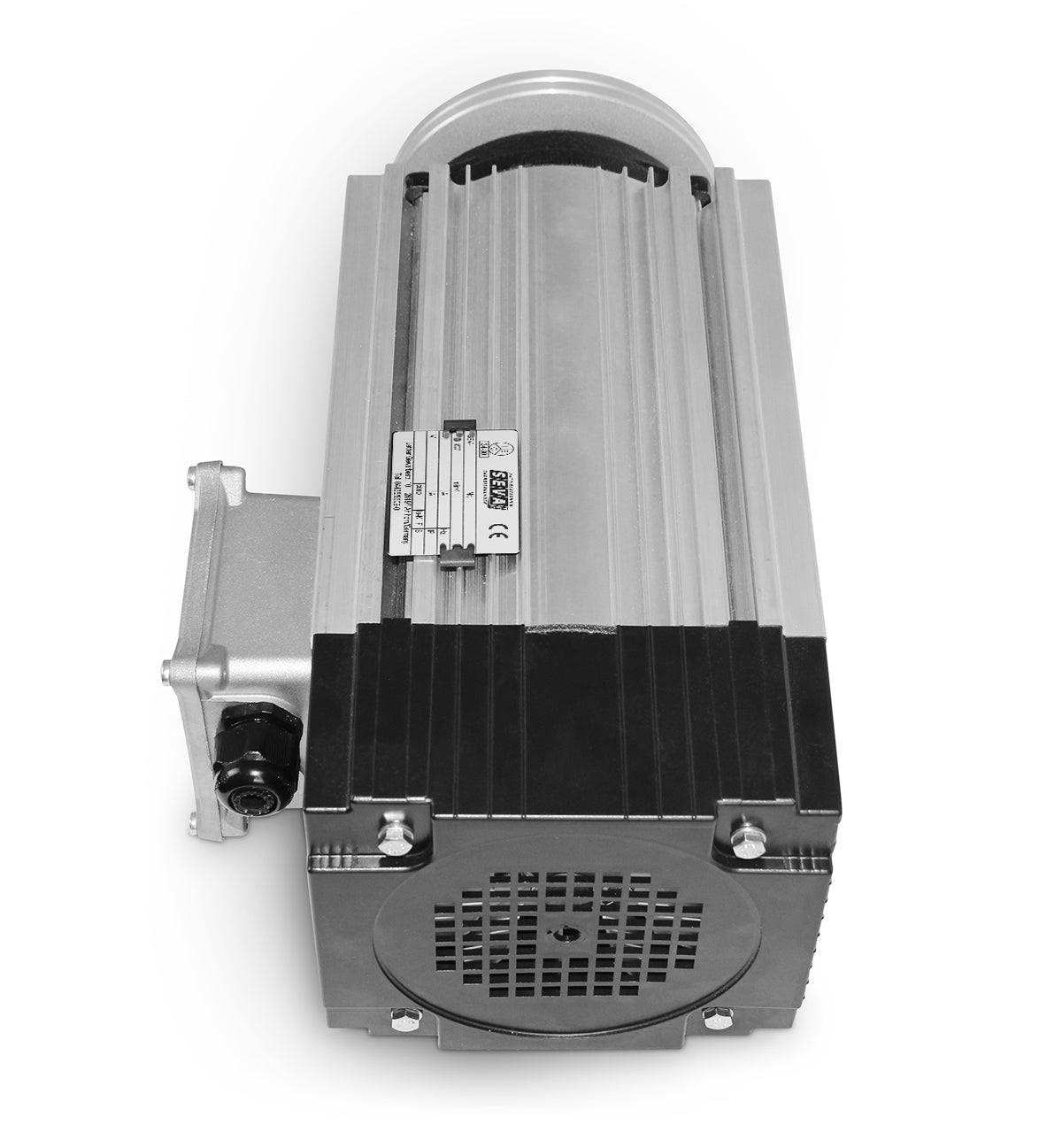

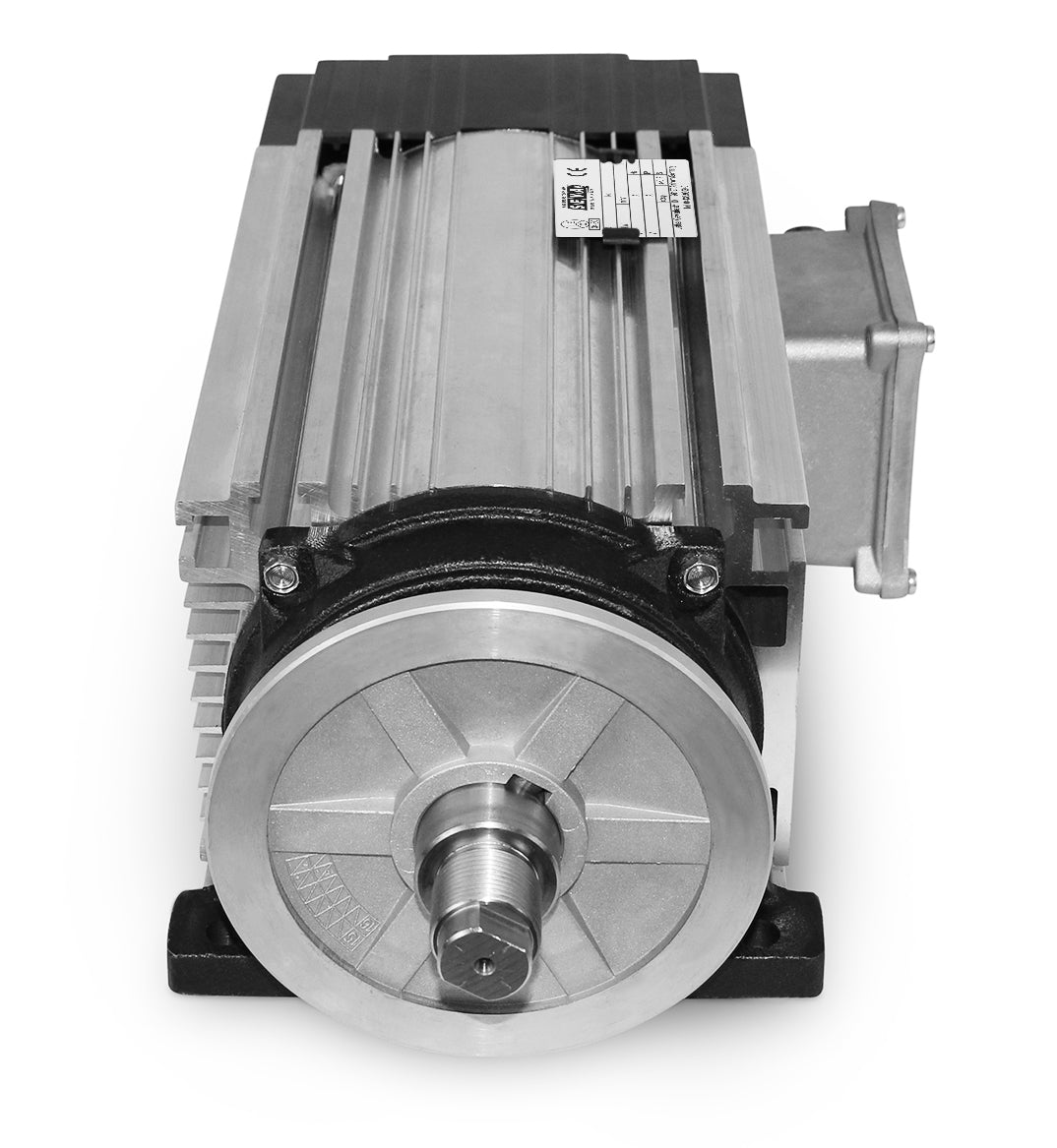

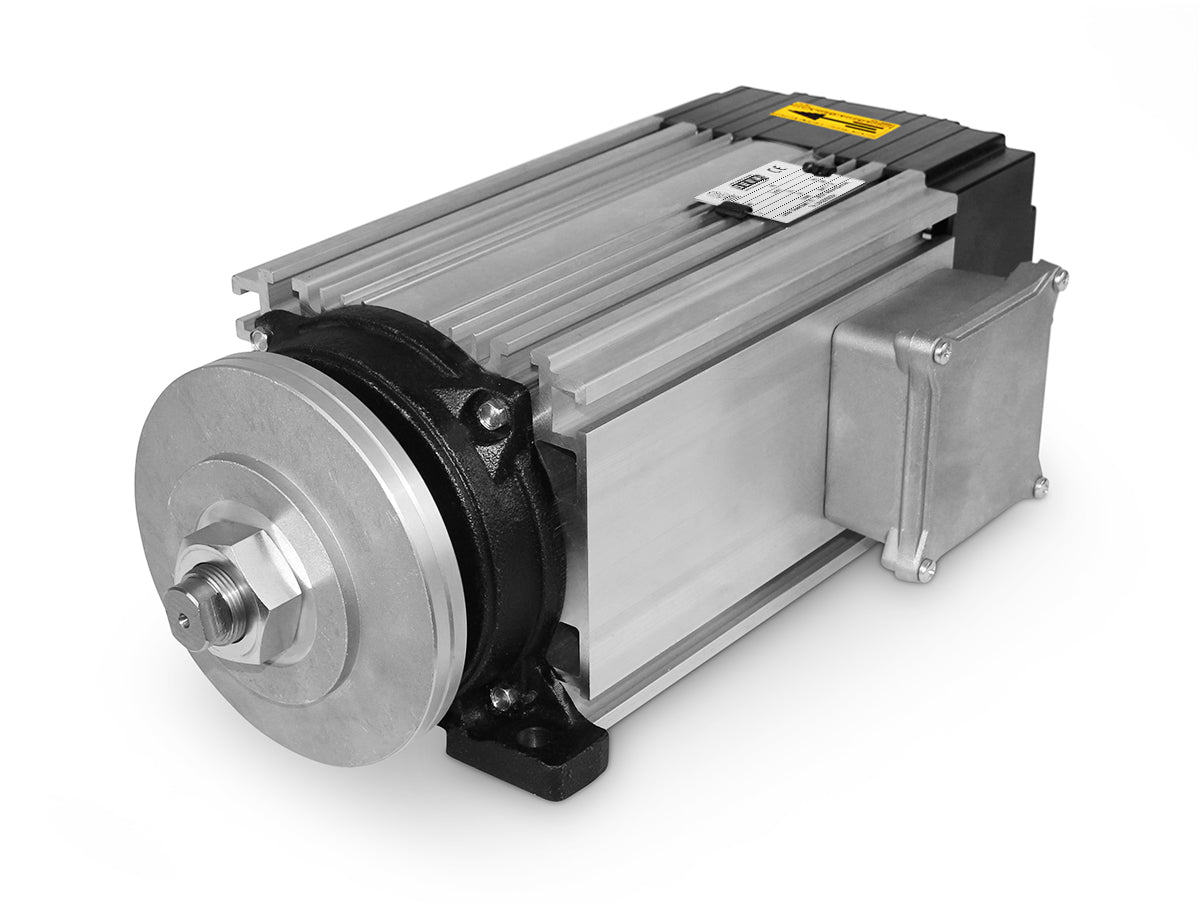

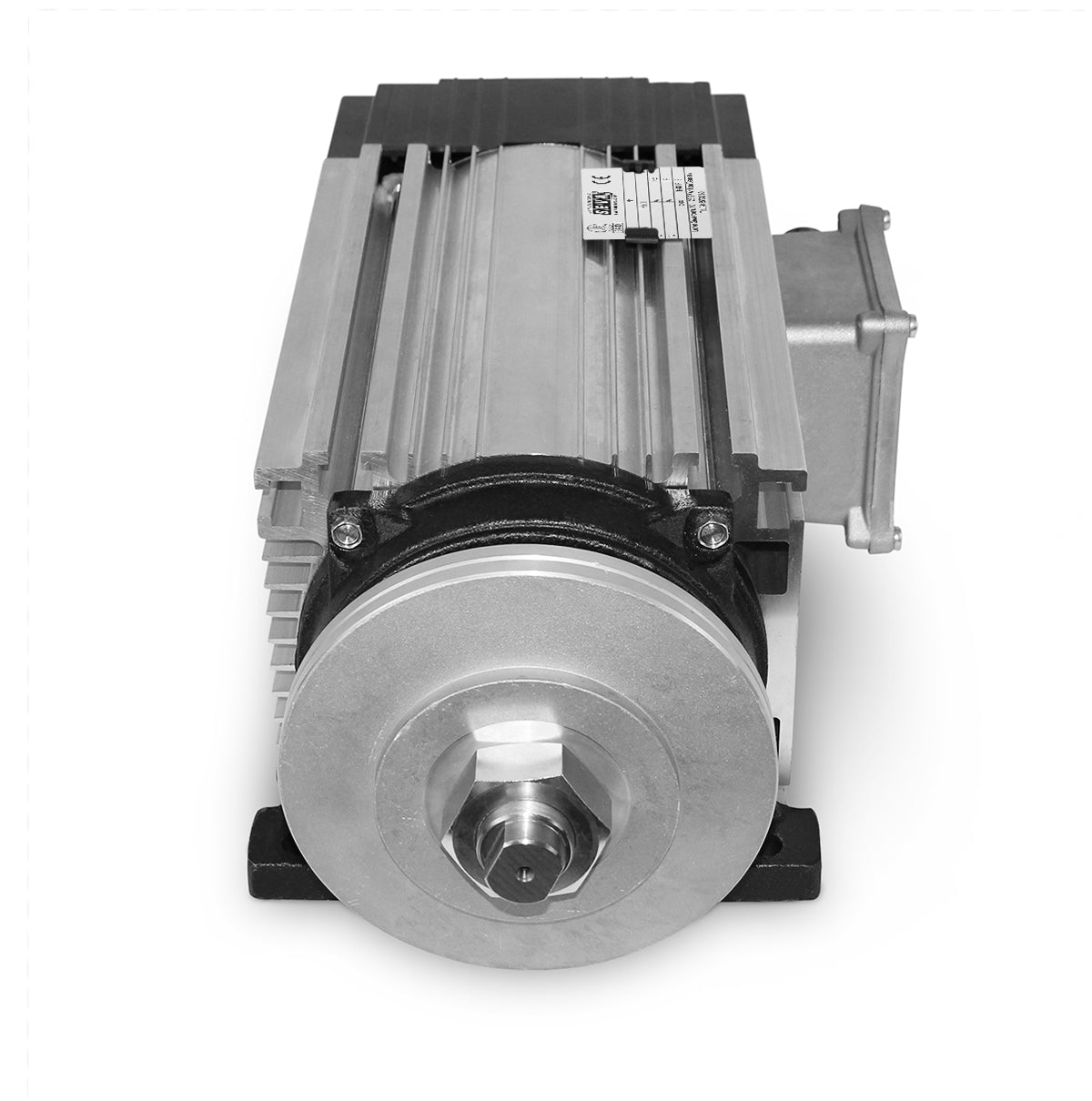

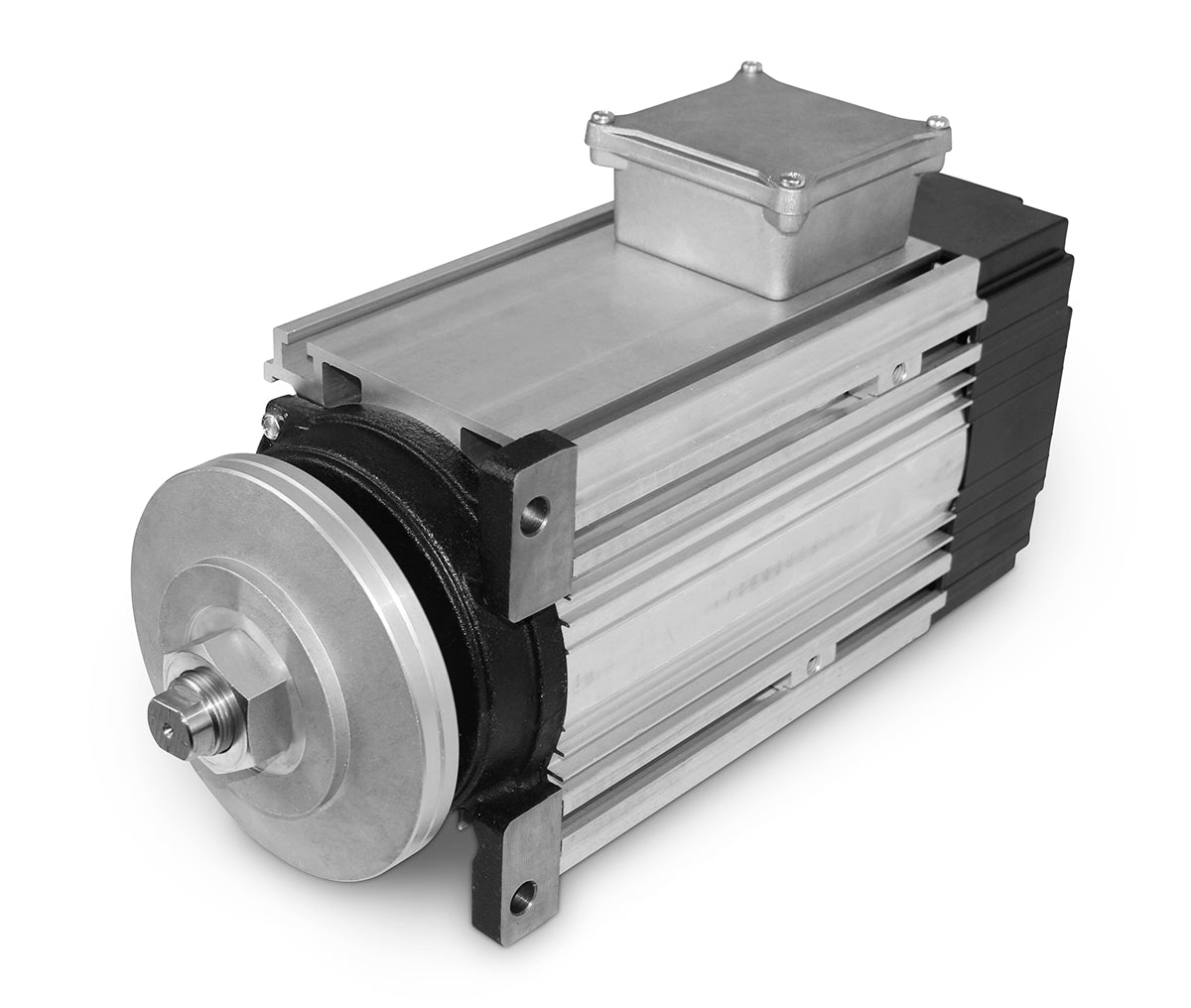

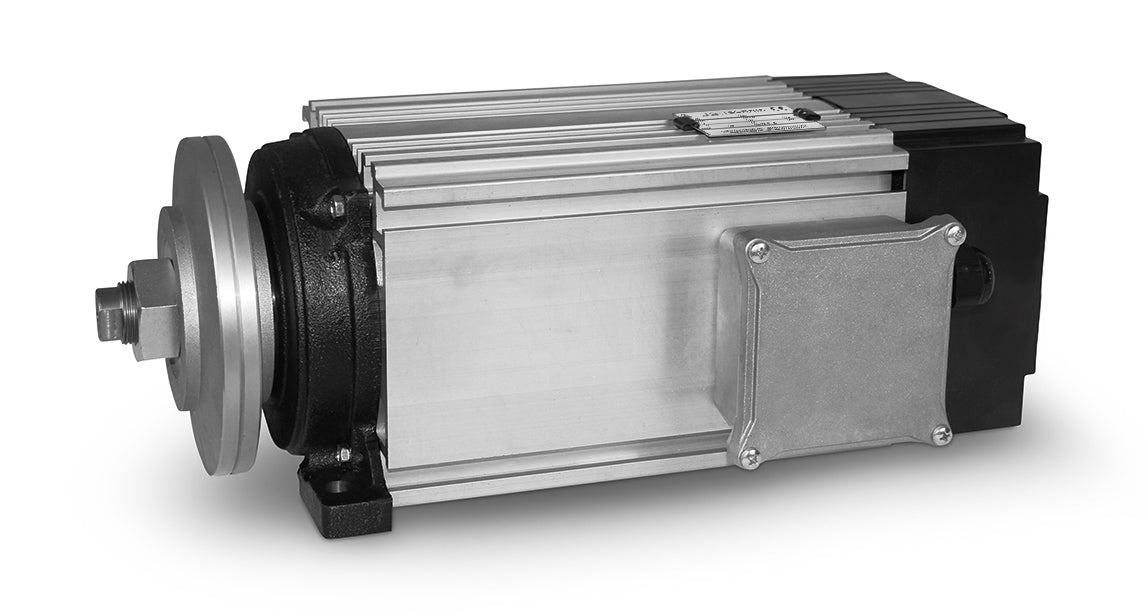

Flat motor D71SA4-1.8 kW-B3, anti-clockwise rotation

Flat motor, 1.8 kW, 1370 rpm, 3 x 230/400 volts, same length with mechanical brake.

Direction of rotation = left, right-hand thread, clamping flange with 30 mm holder, operating mode = S6-60% ED,

Design= B3, Voltage= 3 x 230/400 V-50 Hz, Protection class= IP55, Weight= 21.0 kg, Terminal box position= right, with feet,

According to VDE 0105 and IEC 364, all work on the electric drive must be carried out by qualified

carried out by qualified personnel.

All product photos are non-binding examples! Technical changes reserved.

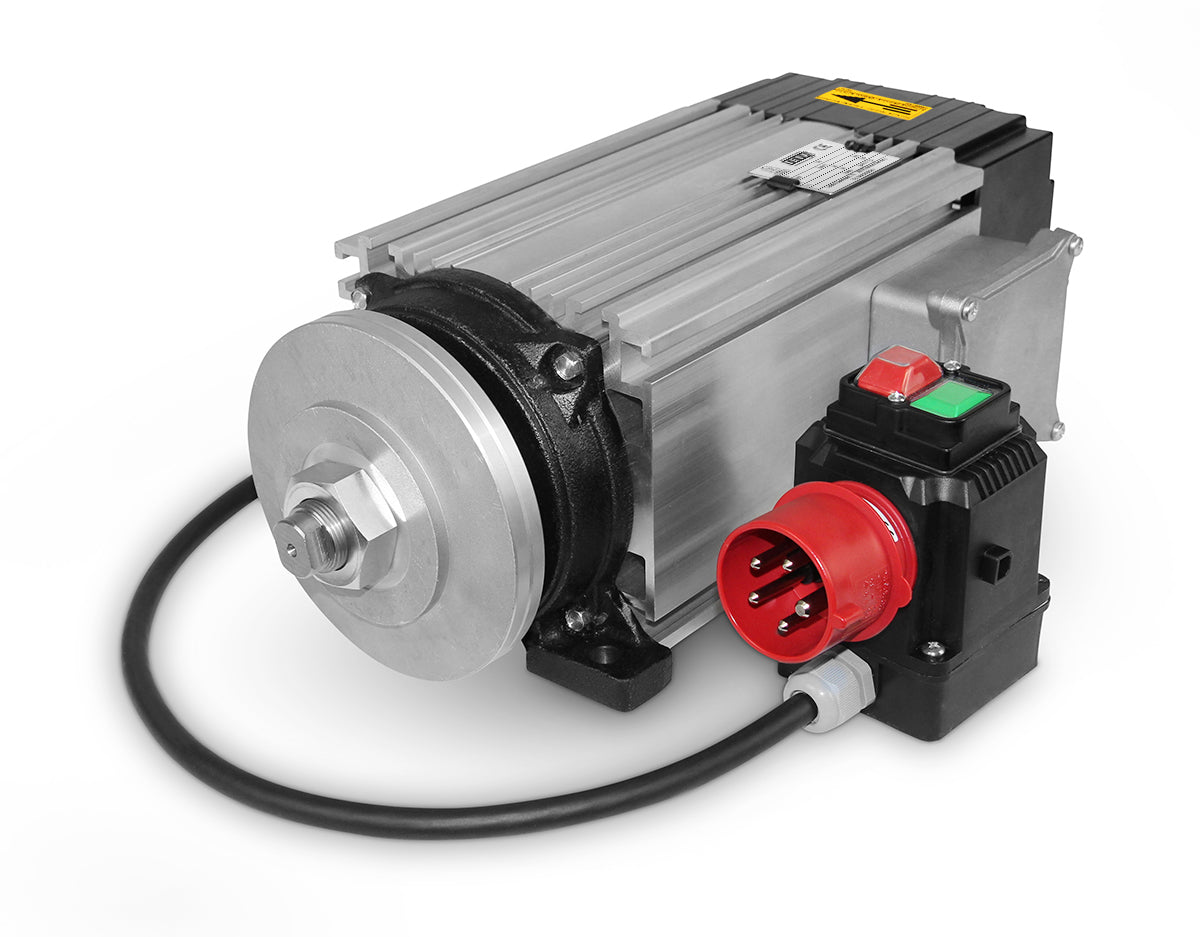

Available without brake, with motor switch with electronic brake or with spring-loaded brake

(please select design).
