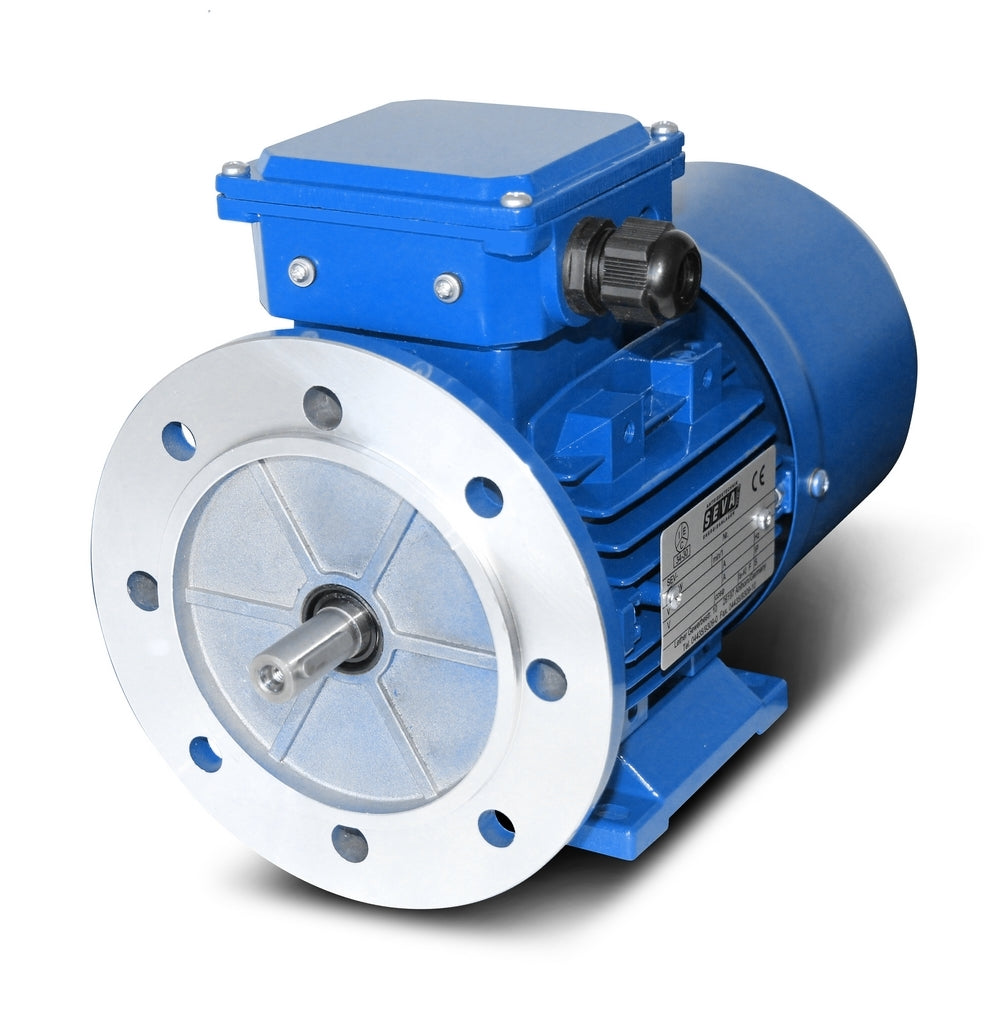

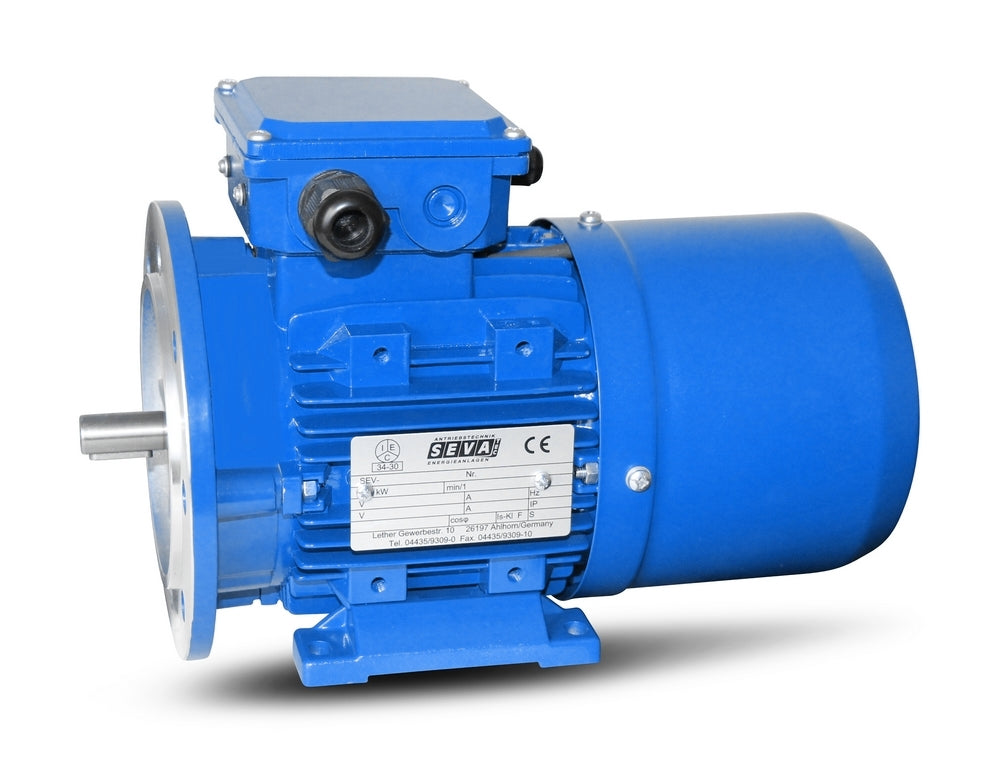

Brake motor BMS 132S-5.5 kW-4pol-B35

Brake motor, power= 5.5 kW, speed=1500 rpm,

Voltage= 400/690 V-50 Hz, 460/795 V-60 Hz (± 5% according to VDE 0530), Temperature sensor= 3 x PTC thermistors,

Color= RAL 5010 (gentian blue), frequency= 50/60 Hertz, protection class= IP55, brake= 70 Nm, 400V with rectifier.

Terminal box position= top (rotatable), Housing= die-cast aluminum, Insulation class= F (155°C),

Ball bearings= SKF, C&U, or equivalent, cooling= axial fan (plastic), motor feet= can be screwed on or off.

The electric motor is suitable for frequency converter use and complies with IEC 60034-30:2008.

The spring-loaded brake brakes the AC motor when the motor is de-energized. In converter operation, the brake is

or the brake rectifier externally. The rated power applies to continuous operation at a frequency

of 50 Hz, an outside temperature of 40°C and an installation altitude of up to 1000m above sea level.

All product photos are non-binding examples! Technical changes reserved.
